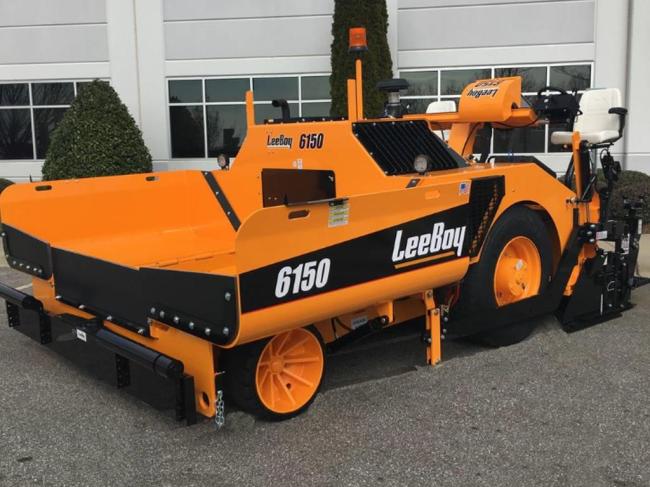

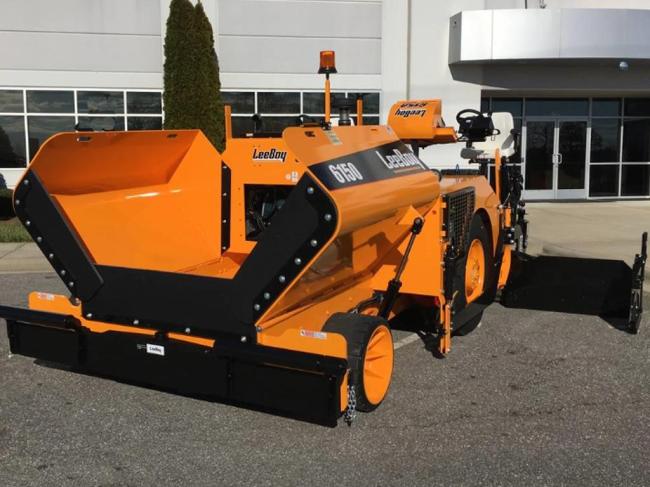

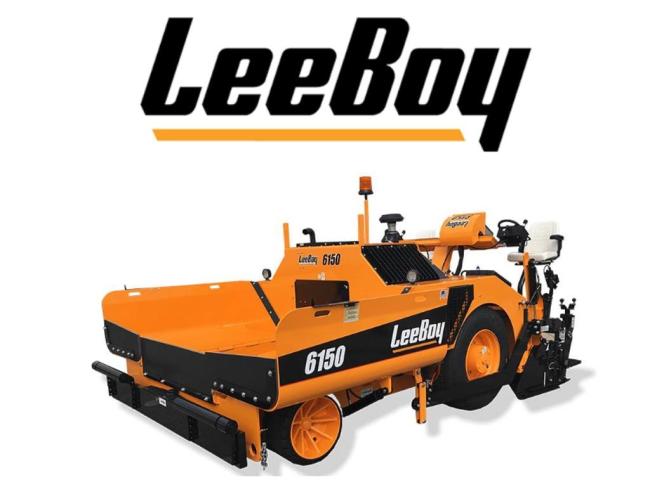

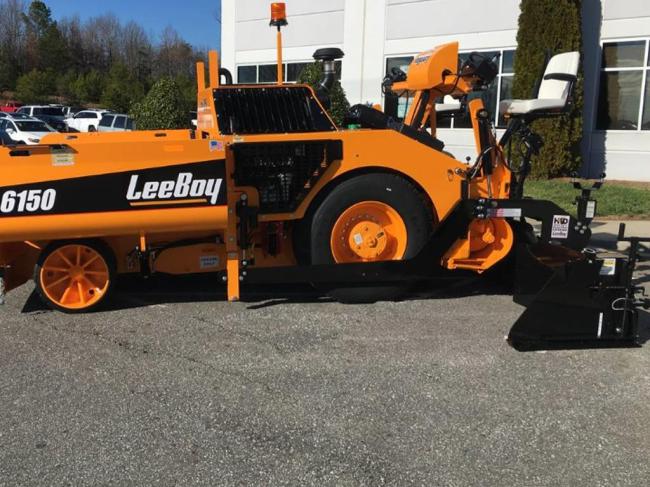

LEEBOY 6150 — ASPHALT PAVER

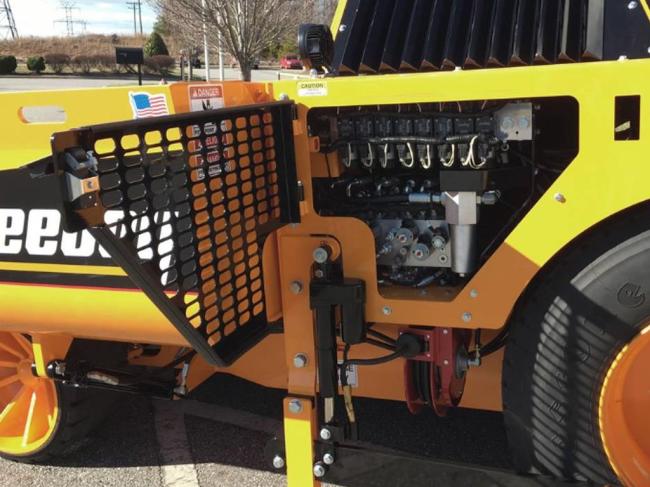

The LeeBoy 6150 wheeled asphalt paver was truly designed with the paving professional in mind. With a quicker travel speed, this paver delivers a quality mat while easily maneuvering from point to point. Given traditional LeeBoy style and operation, the operator has a choice of working in a high-deck or low-deck configuration which can greatly benefit visibility depending on the application. Improved easy-to-reach service compartments allows quick access for regular maintenance requirements.

PERFORMANCE FEATURES

• 74 hp (55 kw) Kubota Tier 4 Final Diesel Engine

• Paving Widths Variable Up To 15’

• Paving Speeds: 0 to 228’ per minute

• Travel Speed: 0 to 660’ per minute

• Operator’s Choice: High or Low Deck Configuration

• Dual Electronic Steering Wheels

• Sliding Operator Control Station

• 7 Ton Capacity Material Hopper

• Electric Screed Heat

• Vertically Adjustable Oscillating Push Rollers

• Under Auger Material Cutoff

ENGINE

• Kubota turbocharged diesel,

• Tier 4 Final – 74hp (55 kw) @ 2,200 RPM

HOPPER

Hopper size: 7.0 ton

PAVING WIDTHS

Variable up to 15’

PAVING DEPTHS

• Manual flight screws positioned on the screed to control material thickness

• Depth: 0” to 6”

SCREED

• Legend Electric screed

• Consisting of a main screed and two hydraulically operated screed extensions

• Equipped with two electric vibrators

SCREED HEAT

• Legend electric screed heat, 10kw generator

• Electric timer and automatic RPM control system

• 2 Blade heating elements in main, 1 blade element in each extension

SCREED CROWN/VALLEY

• Equipped with a crown/invert adjustment

• Includes a levelling indicator for the operator

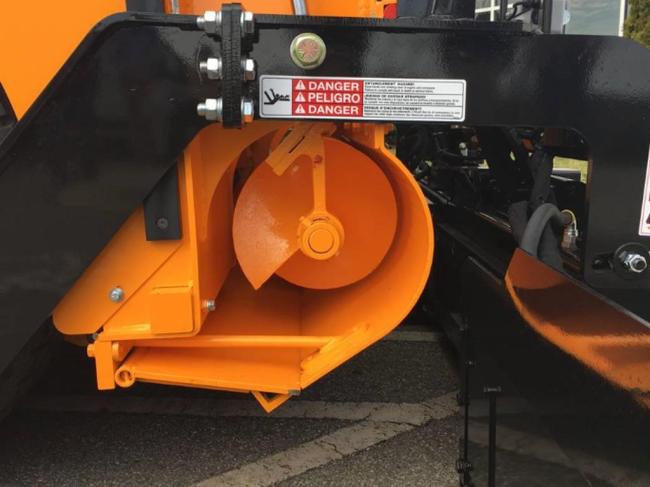

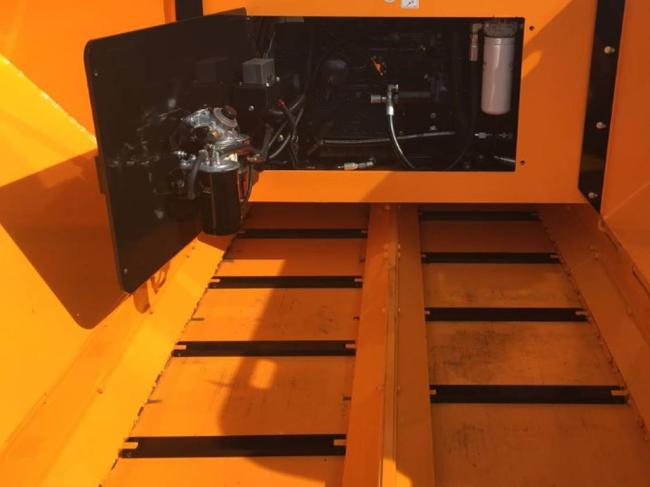

MATERIAL HANDLING

• Two independentaly controled, hydraulically operated under auger material cutoff

• Two 12” diameter independent hydraulically operated cast augers

• Single point lube system

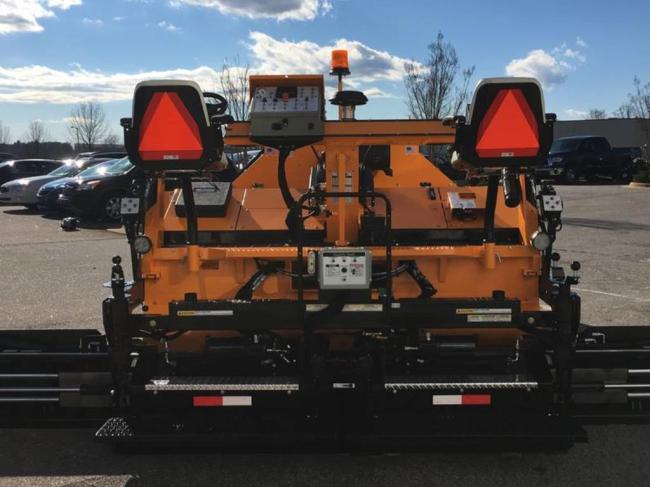

OPERATOR’S PLATFORM

• Full machine width platform

• Walkboard extensions slide outs, left and right

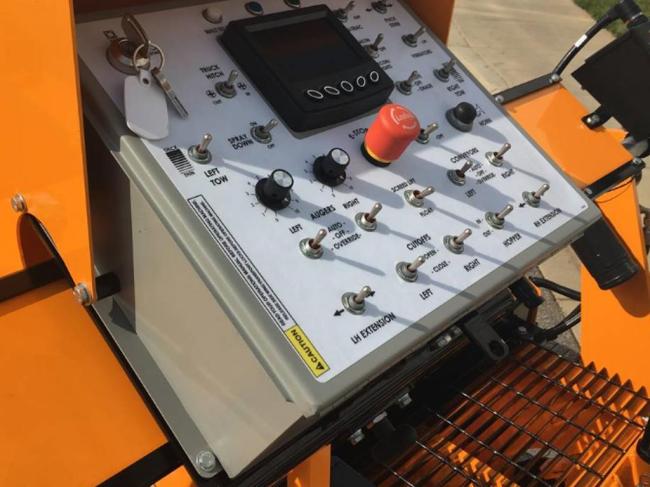

OPERATOR’S CONTROLS

All control switches are in a single control box which can be moved from right side to left side

STEERING

• Dual electronic steering

• Electronically controlled pumps operated by the forward/reverse joysticks

WASHDOWN SYSTEM

Electric HD pump and two hose reels

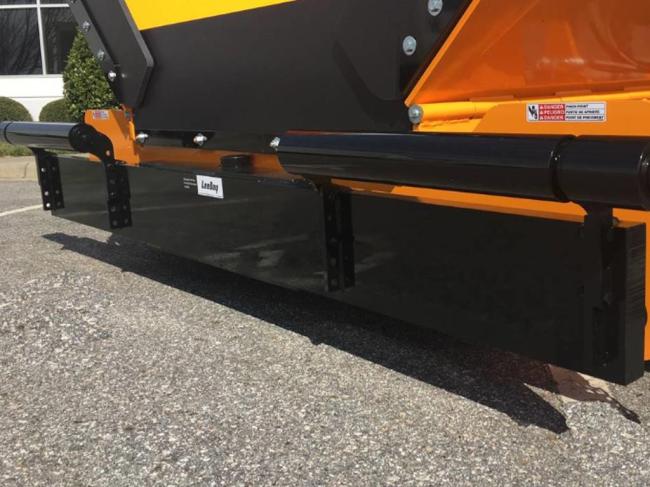

PUSH ROLLERS

Two vertically adjustable rollers with sealed bearings mounted to allow pivoting on frame

WHEELED DRIVE SYSTEM

• Hydrostatic drive using hydrostatic pump which drives left and right sides

• Rear: 385/65 R22.5 heavy-duty hydroinflated truck tires

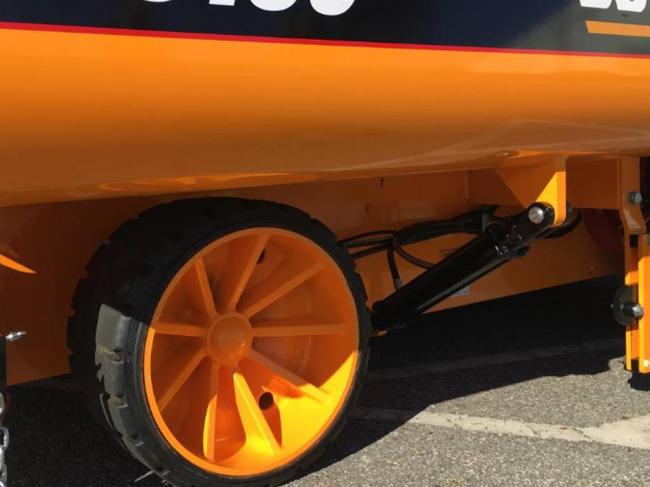

• Front: steerable wheels, 12” x 22” diameter solid rubber tires

• Paving speed: 0 to 228’ per minute (2.6 mph)

• Travel speed: 0 to 660’ per minute (7.5 mph)

ADDITIONAL STANDARD EQUIPMENT

• Back-up alarm

• LED beacon light

• Lockable fuel and hydraulic caps

• LED work light package

OPTIONAL EQUIPMENT

• Legend HD Screed, 8’ to 15’

• Remote screed controls

• Automatic screed temperature controls

• Screed extension vibration

• Sloping screed extensions

• Power crown

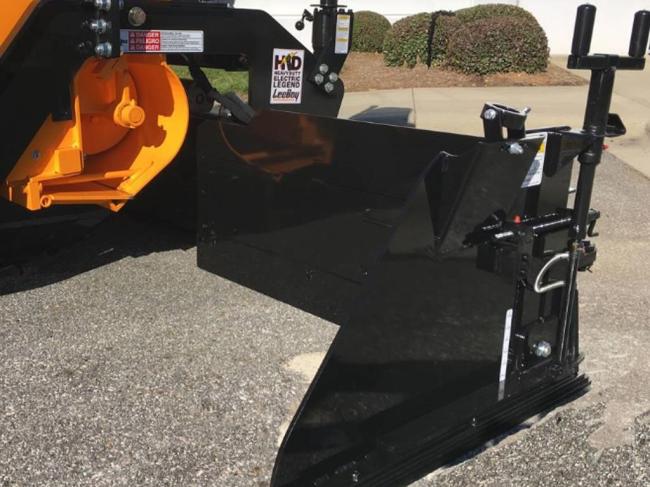

• Heated endgates

• 12” x 4.5” berm extensions, right and left

• Single point lube system, conveyors

• Single point lube system, screed

• Wiring only, grade controls (TopCon)

• Sonic grade control, one side (TopCon)

• Dual grade control (TopCon)

• Dual grade and slope (TopCon)

• Truck Hitch

• Truck Hitch Valving Only

Specifications are subject to change without prior notice.

Similar models may be shown in addition to the featured model. Equipment may be shown with options.
