Leeboy 8530

LEEBOY 8530 — ASPHALT PAVERS

We’ve set the standards in heavy-commercial paving even higher! Equipped with exciting new features that were truly designed with the paving professional in mind, the LeeBoy 8530 is the new benchmark. Standard machine assets include the 4,150 lbs Legend HD PRO Screed with spring-loaded end gates, front adjustable conveyor chains, pivoting dual seating and controls as well as many other enhancements. And as always, LeeBoy’s wide slow-moving conveyor system moves material from the truck to the screed without segregation which ensures a flawless mat.

PERFORMANCE FEATURES

• 125 hp (93 kw) Kubota Tier 4 Final Diesel Engine

• Legend HD PRO Screed, Weight 4,150 lbs

• Paving Widths Variable Up To 15’ 6”

• 9 Ton Capacity Material Hopper

• Operator’s Choice of High or Low Deck Configuration

• Remote Mounted SCR for Greater Visibility

• Dual Electronic Steering & Adjustable Operator Platforms

• Ultra-efficient Wide-Conveyor Material Management

• Automatic Temperature Control (ATC) Standard

• Electric Screed Heat, 14.4 kw Generator

• Actuator Driven Hood Lift to Aid in Maintenance

EGINE

• Kubota turbocharged diesel

• Tier 4 Final – 125 HP (93.2 kW)

• Remote mounted DOC + DPF + SCR

• MURR I/O distributor blocks with LED lighting

PAVING WIDTHS

• Variable paving widths up to 15’ 6"

PAVING DEPTHS

Manual flight screws positioned on the screed to control material thickness, depth: 0” to 8”

SCREED

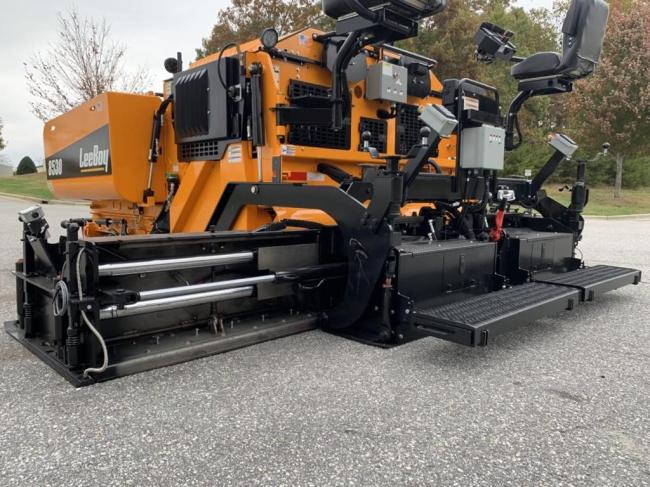

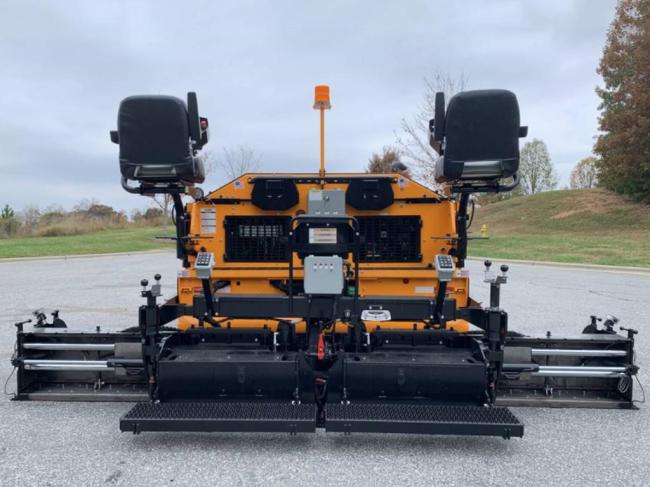

• Legend HD PRO Screed, free floating

• Weight: 4,150 lbs

• Consisting of a main screed and two hydraulically operated screed extensions

• Spring-loaded end gates standard

• Sloping screed extensions standard

• Equipped with two electric vibrators, 4100 RPM

SCREED HEAT

• Legend electric screed heat, 14.4 kw generator

• Electric timer and automatic temperature control

• Sealed s-curve elements in main screed and sealed blade-style elements in extensions

SCREED CROWN/VALLEY

• Equipped with a crown/invert adjustment

• Includes a levelling indicator for the operator

MATERIAL HANDLING

• Two hydraulically operated under auger material cutoffs can close in reverse

• Single point lube system

• Two 12” independent hydraulically operated cast augers

OPERATOR’S PLATFORM

• Full machine width platform, slide out extensions

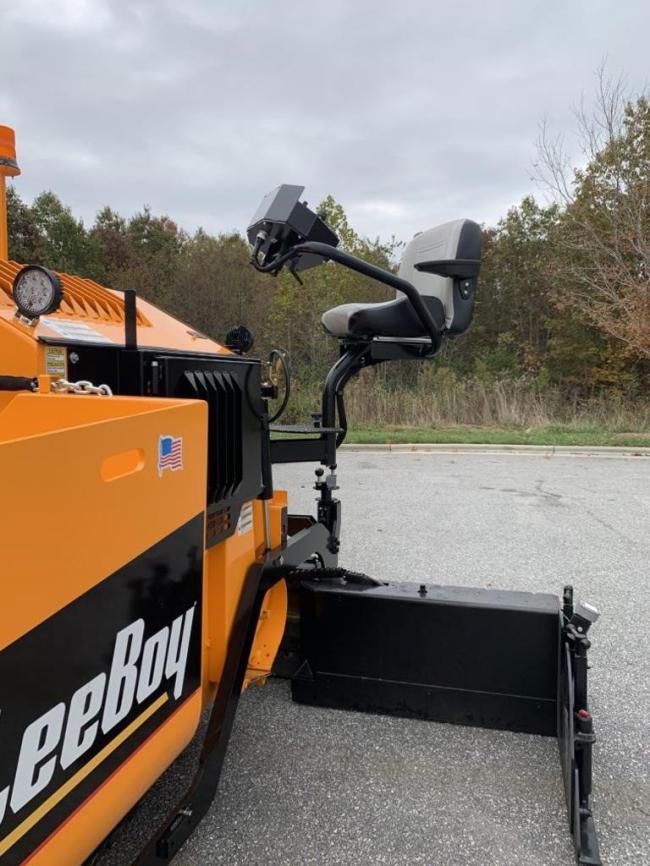

• Pivoting, swing out seats and control panels

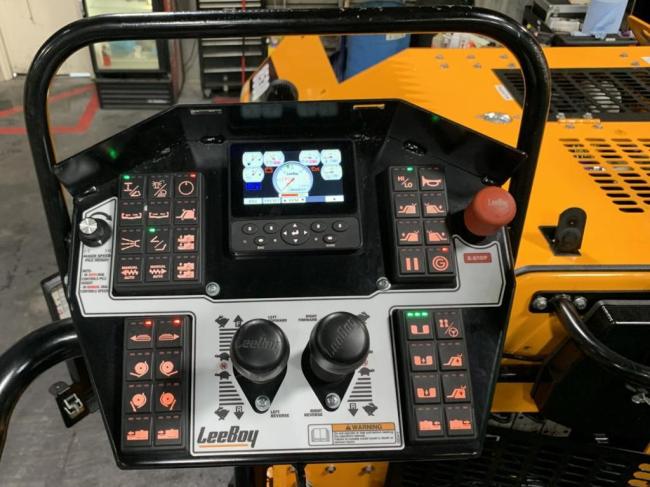

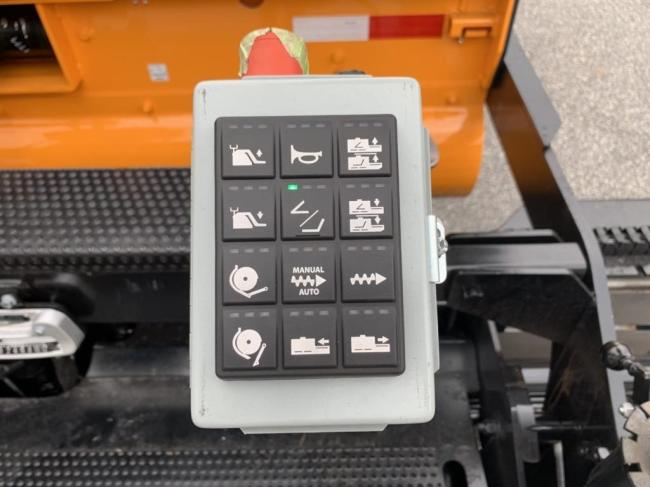

OPERATOR’S CONTROLS

• Dual adjustable, independent control stations

• Colored LED, sunlight viewable control screens with digital readouts

STEERING

• Dual electronic steering controls

• Electronically controlled pumps operated by the forward/reverse joysticks

WASHDOWN SYSTEM

Electric HD pump with hose and two hose reels

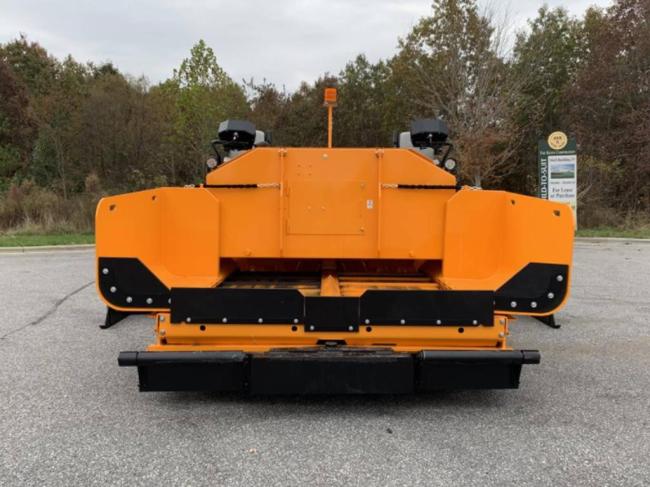

PUSH ROLLERS

• Two rollers with sealed bearings mounted to allow pivoting on frame, built in material scrapers

• Vertically adjustable oscillating push rollers

TRACK DRIVE SYSTEM

• Hydrostatically powered, self-cleaning crawler type

• Track size: 14” w x 87” l poly

• Paving speed: 0 to 150’ per minute (1.7 mph)

• Travel speed: 0 to 300’ per minute (3.4 mph)

ADDITIONAL STANDARD EQUIPMENT

• Gauge package

• Actuator-driven hood lift

• LED beacon light

• LED work light package

• Integrated tool boxes

• Vandalism protection covers

• 2 Year Standard Product Warranty

OPTIONAL EQUIPMENT

• Additional control post, wire harness - left side

• Screed extension vibration

• Rubber track, continuous

• Heated end gates

• Slope meter

• Horizontal flight screw

• 3:1 flight screw adjusters

• Truck hitch

• Power crown

• Hydraulically extendable oscillating push roller

• Central point lube system

• Steering knob drive controls, in lieu of joysticks

• Wiring only, grade controls (TopCon)

• Sonic grade control, one side (TopCon)

• Dual grade control (TopCon)

• Dual grade and slope (TopCon)

• 12” x 6” berm extensions, left and right

Similar models may be shown in addition to the featured model. Equipment may be shown with options.

Specifications are subject to change without prior notice.
