Leeboy 6150
| Make | Leeboy |
| Model | 6150 |
| Type | Asphalt Pavers |
How can we help?
Description

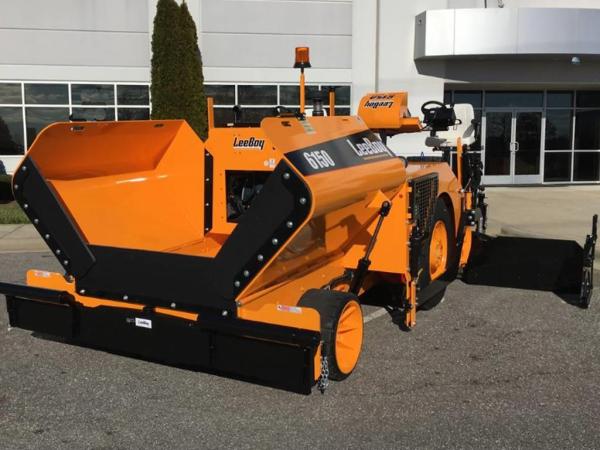

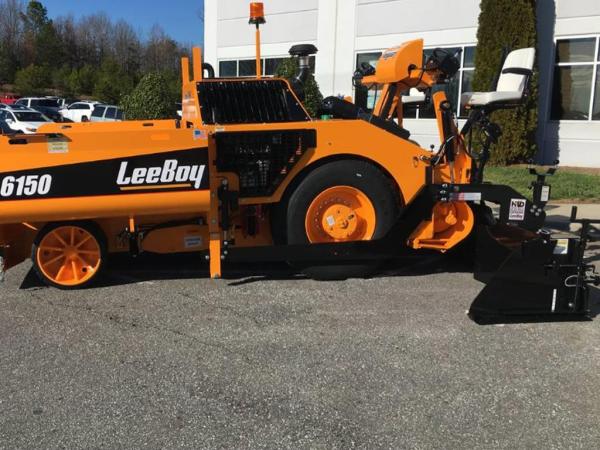

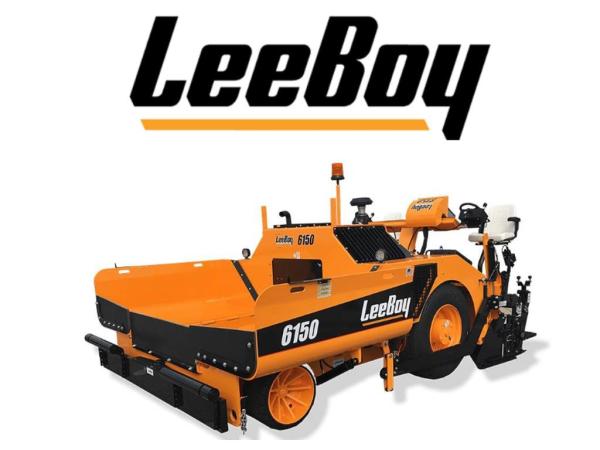

LEEBOY 6150 — ASPHALT PAVER
The LeeBoy 6150 wheeled asphalt paver was truly designed with the paving professional in mind. With a quicker travel speed, this paver delivers a quality mat while easily maneuvering from point to point. Given traditional LeeBoy style and operation, the operator has a choice of working in a high-deck or low-deck configuration which can greatly benefit visibility depending on the application. Improved easy-to-reach service compartments allows quick access for regular maintenance requirements.
PERFORMANCE FEATURES
• 74 hp (55 kw) Kubota Tier 4 Final Diesel Engine
• Paving Widths Variable Up To 15’
• Paving Speeds: 0 to 228’ per minute
• Travel Speed: 0 to 660’ per minute
• Operator’s Choice: High or Low Deck Configuration
• Dual Electronic Steering Wheels
• Sliding Operator Control Station
• 7 Ton Capacity Material Hopper
• Electric Screed Heat
• Vertically Adjustable Oscillating Push Rollers
• Under Auger Material Cutoff
ENGINE
• Kubota turbocharged diesel,
• Tier 4 Final – 74hp (55 kw) @ 2,200 RPM

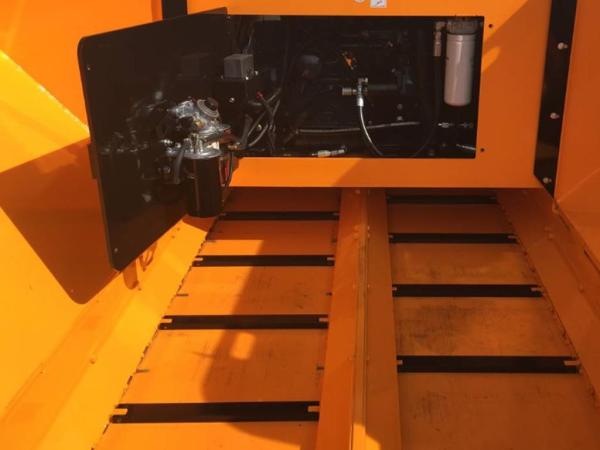

HOPPER
Hopper size: 7.0 ton
PAVING WIDTHS
Variable up to 15’
PAVING DEPTHS
• Manual flight screws positioned on the screed to control material thickness
• Depth: 0” to 6”

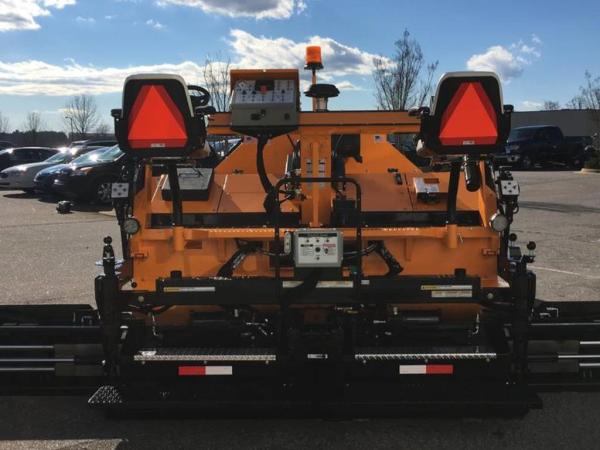

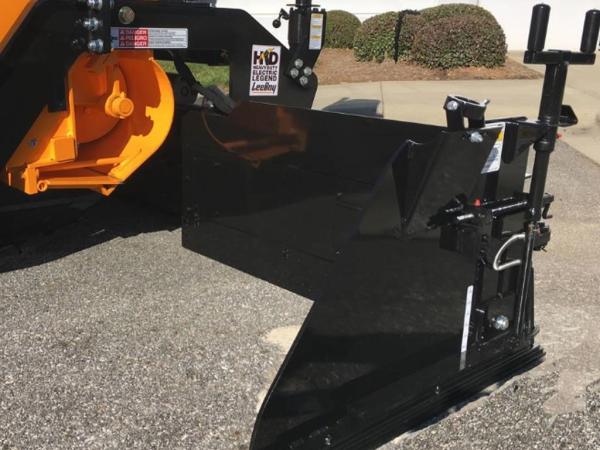

SCREED
• Legend Electric screed
• Consisting of a main screed and two hydraulically operated screed extensions
• Equipped with two electric vibrators
SCREED HEAT
• Legend electric screed heat, 10kw generator
• Electric timer and automatic RPM control system
• 2 Blade heating elements in main, 1 blade element in each extension
SCREED CROWN/VALLEY
• Equipped with a crown/invert adjustment
• Includes a levelling indicator for the operator
MATERIAL HANDLING
• Two independentaly controled, hydraulically operated under auger material cutoff

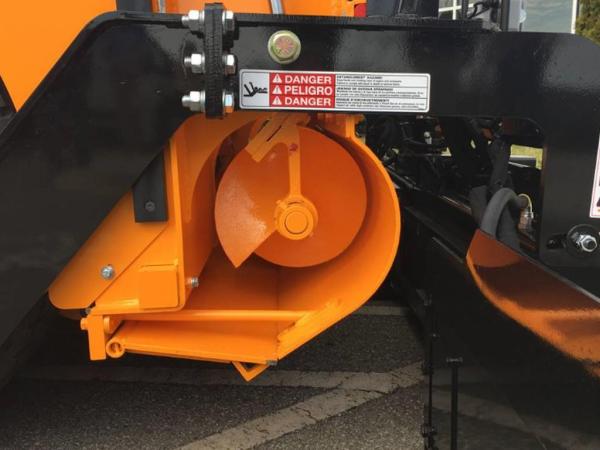

• Two 12” diameter independent hydraulically operated cast augers
• Single point lube system
OPERATOR’S PLATFORM
• Full machine width platform
• Walkboard extensions slide outs, left and right
OPERATOR’S CONTROLS

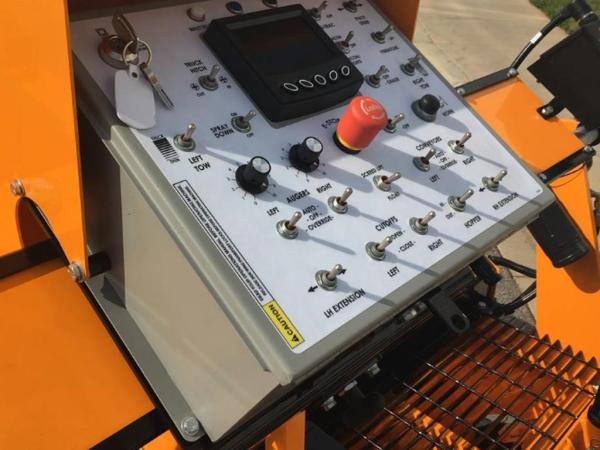

All control switches are in a single control box which can be moved from right side to left side
STEERING
• Dual electronic steering
• Electronically controlled pumps operated by the forward/reverse joysticks
WASHDOWN SYSTEM
Electric HD pump and two hose reels

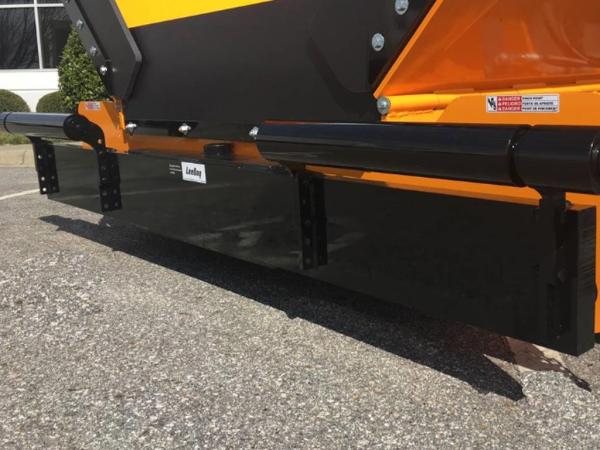

PUSH ROLLERS
Two vertically adjustable rollers with sealed bearings mounted to allow pivoting on frame
WHEELED DRIVE SYSTEM
• Hydrostatic drive using hydrostatic pump which drives left and right sides
• Rear: 385/65 R22.5 heavy-duty hydroinflated truck tires

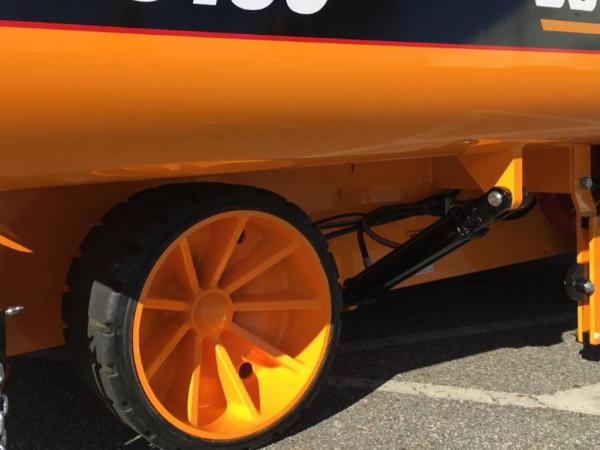

• Front: steerable wheels, 12” x 22” diameter solid rubber tires
• Paving speed: 0 to 228’ per minute (2.6 mph)
• Travel speed: 0 to 660’ per minute (7.5 mph)
ADDITIONAL STANDARD EQUIPMENT
• Back-up alarm
• LED beacon light
• Lockable fuel and hydraulic caps
• LED work light package
OPTIONAL EQUIPMENT
• Legend HD Screed, 8’ to 15’
• Remote screed controls
• Automatic screed temperature controls
• Screed extension vibration
• Sloping screed extensions
• Power crown
• Heated endgates
• 12” x 4.5” berm extensions, right and left
• Single point lube system, conveyors
• Single point lube system, screed
• Wiring only, grade controls (TopCon)
• Sonic grade control, one side (TopCon)
• Dual grade control (TopCon)
• Dual grade and slope (TopCon)
• Truck Hitch
• Truck Hitch Valving Only
Specifications are subject to change without prior notice.
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications
- Capacities - DEF Tank:
- Capacities - Fuel: 36 gallons
- Capacities - Hydraulic Reservoir: 36 gallons
- Capacities - Washdown Tank: 7 gallons
- Dimensions - Height: 7'8"
- Dimensions - Length: 16'6"
- Dimensions - Total Weight with screed: 17,550 lbs
- Dimensions - Width: 8'6" transport | 10'7" hopper wings down
