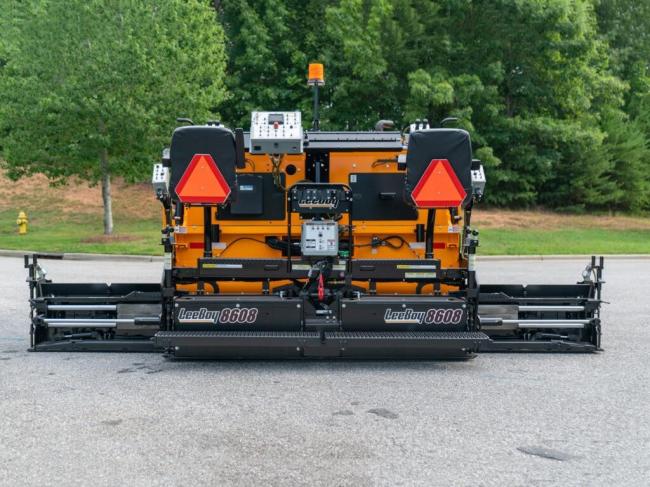

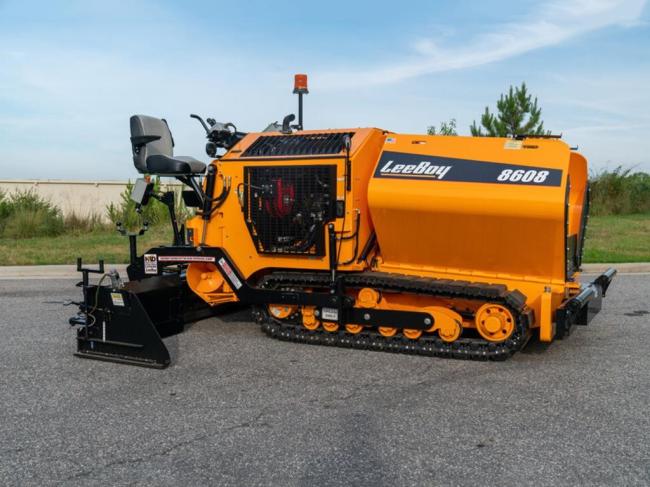

LEEBOY 8608 — ASPHALT PAVERS

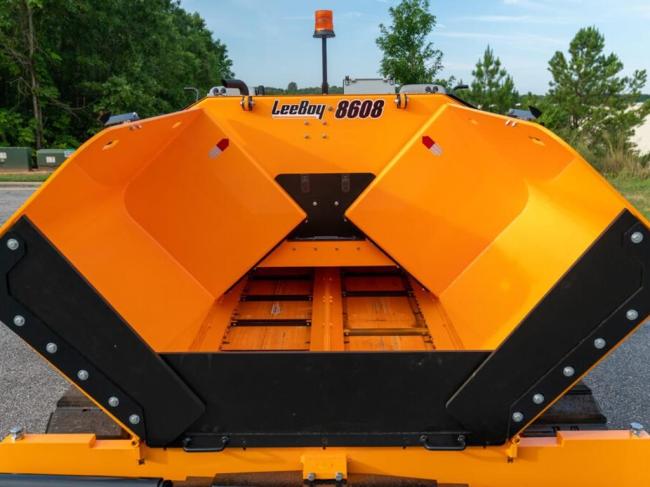

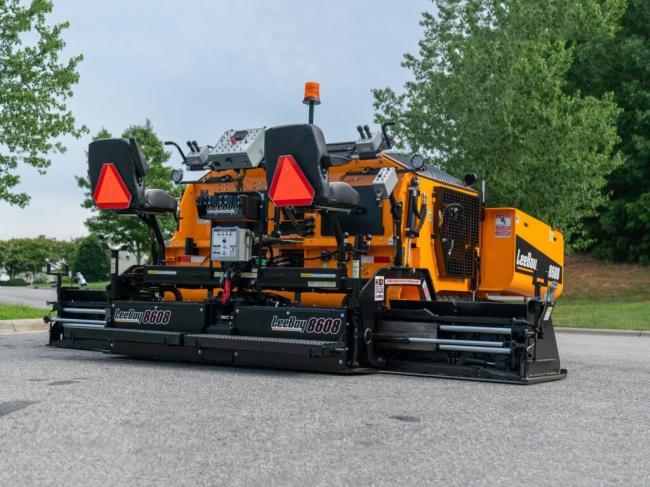

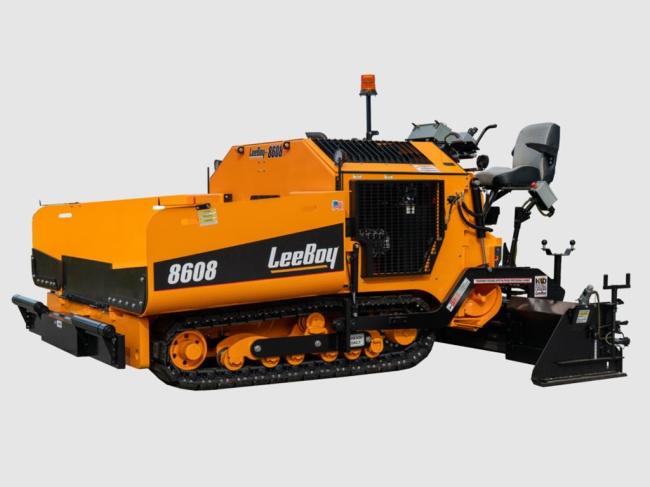

The new 8608 asphalt paver is equipped with an efficient narrow conveyor material management system along with our Oscillating bogie style, B1 smooth ride poly track system. This allows the paver to drive over base imperfections and other obstacles that may be encountered without altering the depth of the mat. This asphalt paver is powered by a 125HP Kubota Tier 4 engine including a lowered SCR, exhaust, and flat hood for enhanced operator visibility and access. The 8608 is equipped with a 14.4 kw belt driven generator. This model includes operator friendly toggle switch controls Leeboy operators are familiar with. The operator’s platform is equipped with the choice of high or low deck controls with electronic steering. Designed with the paving professional in mind, this heavy commercial paver is guaranteed to impress.
PERFORMANCE FEATURES
• Efficient Narrow Conveyor Material Management System

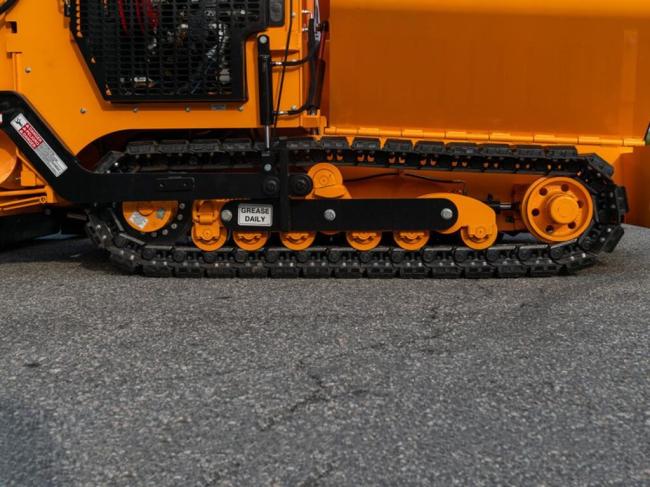

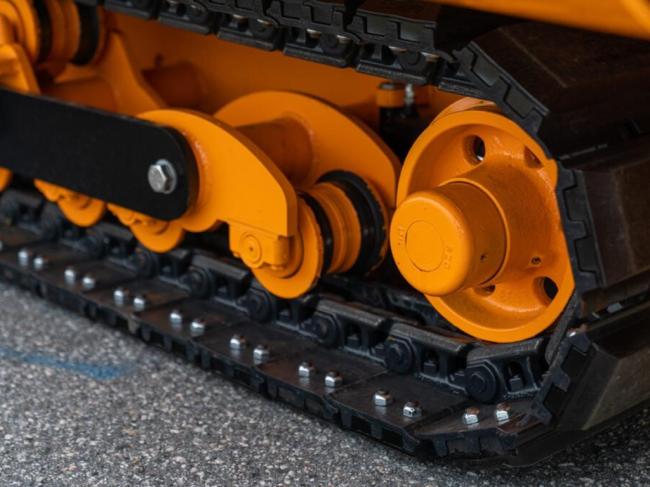

• Oscillating Bogie Style, B1 Smooth Poly Pad Track System
• Low Profile-SCR & Exhaust for Enhanced Visibility

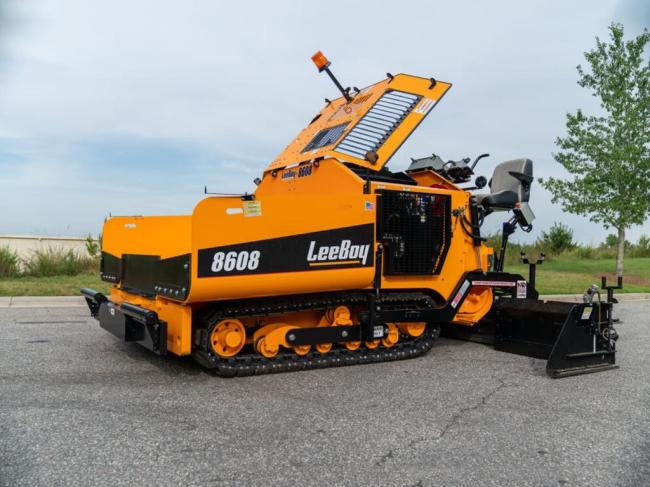

• Actuator Driven Hood Lift to Aid in Maintenance

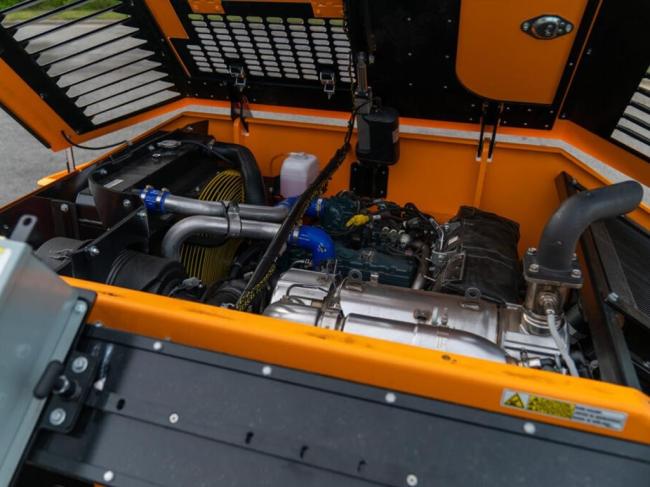

• 125 HP (93 kw) Kubota Tier 4 Final Diesel Engine

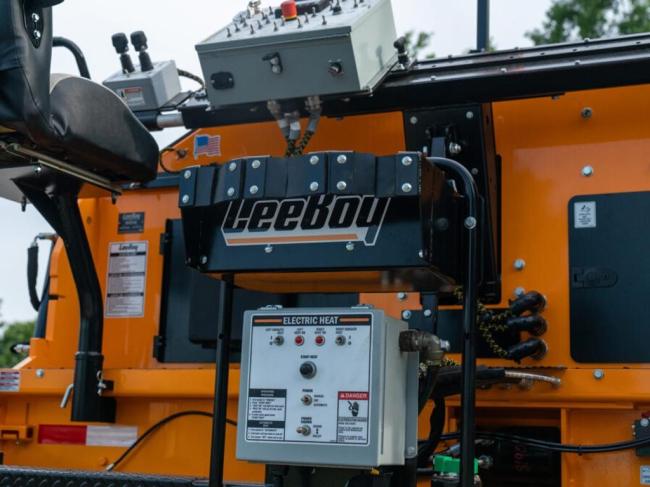

• Electric Screed Heat, 14.4 KW Belt-Driven Generator
• Dual Electronic Steering
• Toggle Switch Functional Controls
• Automatic RPM Control System

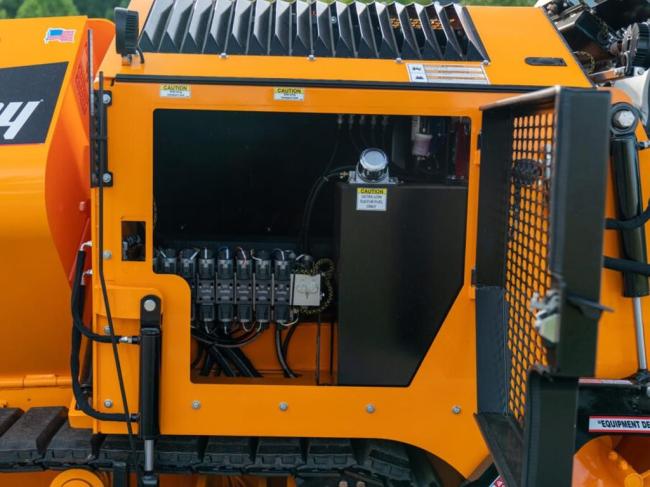

• Large Access Service Doors
• Operator’s Choice of High or Low Deck Configuration
ADDITIONAL STANDARD EQUIPMENT
• Gauge package
• Back-up alarm
• LED beacon light
• LED work light package
• Vandalism protection cover
• 2 Year Standard Product Warranty
OPTIONAL EQUIPMENT

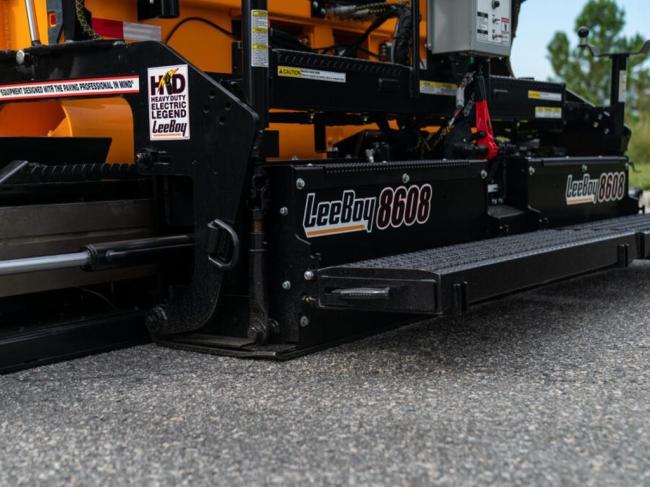

• Legend HD PRO Screed, Weight 4,150 Variable paving width up to 15’ 6”
• Screed extension vibration
• Automatic screed temperature control
• Sloping screed extensions
• Heated endgates
• Slope meter
• Horizontal flight screws
• 3:1 flight screw adjusters
• Truck hitch
• Power crown
• Single point lube system, screed
• Steering wheel drive controls, in lieu of joysticks
• Wiring only, grade controls (TopCon)
• Sonic grade control, one side (TopCon)
• Dual grade control (TopCon)
• Dual grade and slope (TopCon)
• 12” x 4.5” berm extension, left & right
• Other options available
Specifications are subject to change without prior notice.
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
LEEBOY 8608 — ASPHALT PAVERS
The new 8608 asphalt paver is equipped with an efficient narrow conveyor material management system along with our Oscillating bogie style, B1 smooth ride poly track system. This allows the paver to drive over base imperfections and other obstacles that may be encountered without altering the depth of the mat. This asphalt paver is powered by a 125HP Kubota Tier 4 engine including a lowered SCR, exhaust, and flat hood for enhanced operator visibility and access. The 8608 is equipped with a 14.4 kw belt driven generator. This model includes operator friendly toggle switch controls Leeboy operators are familiar with. The operator’s platform is equipped with the choice of high or low deck controls with electronic steering. Designed with the paving professional in mind, this heavy commercial paver is guaranteed to impress.
PERFORMANCE FEATURES
• Efficient Narrow Conveyor Material Management System
• Oscillating Bogie Style, B1 Smooth Poly Pad Track System
• Low Profile-SCR & Exhaust for Enhanced Visibility
• Actuator Driven Hood Lift to Aid in Maintenance
• 125 HP (93 kw) Kubota Tier 4 Final Diesel Engine
• Electric Screed Heat, 14.4 KW Belt-Driven Generator
• Dual Electronic Steering
• Toggle Switch Functional Controls
• Automatic RPM Control System
• Large Access Service Doors
• Operator’s Choice of High or Low Deck Configuration
ADDITIONAL STANDARD EQUIPMENT
• Gauge package
• Back-up alarm
• LED beacon light
• LED work light package
• Vandalism protection cover
• 2 Year Standard Product Warranty
OPTIONAL EQUIPMENT
• Legend HD PRO Screed, Weight 4,150 Variable paving width up to 15’ 6”
• Screed extension vibration
• Automatic screed temperature control
• Sloping screed extensions
• Heated endgates
• Slope meter
• Horizontal flight screws
• 3:1 flight screw adjusters
• Truck hitch
• Power crown
• Single point lube system, screed
• Steering wheel drive controls, in lieu of joysticks
• Wiring only, grade controls (TopCon)
• Sonic grade control, one side (TopCon)
• Dual grade control (TopCon)
• Dual grade and slope (TopCon)
• 12” x 4.5” berm extension, left & right
• Other options available
Specifications are subject to change without prior notice.
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications
Capacities - DEF tank: |
5 gallons |
Capacities - Fuel: |
32 gallons |
Capacities - Hydraulic Reservoir: |
25 gallons |
Capacities - Washdown Tank: |
7 gallons |
Dimensions - Height: |
6’ 10” high deck |
Dimensions - Length: |
15’ 3” | 14’ 3” transport |
Dimensions - Total Weight w/screed: |
21,920 lbs. |
Dimensions - Width: |
8’ 6” transport | 10’ hopper wings down |
Engine - Kubota turbocharged diesel: |
Tier 4 Final – 125 hp (93 kw) |
-
