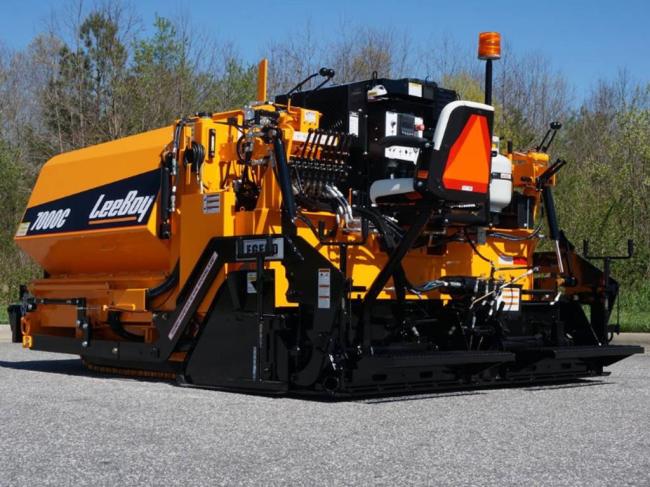

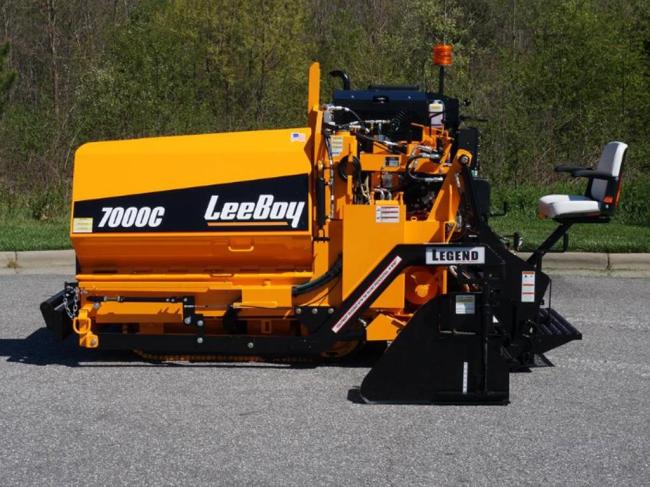

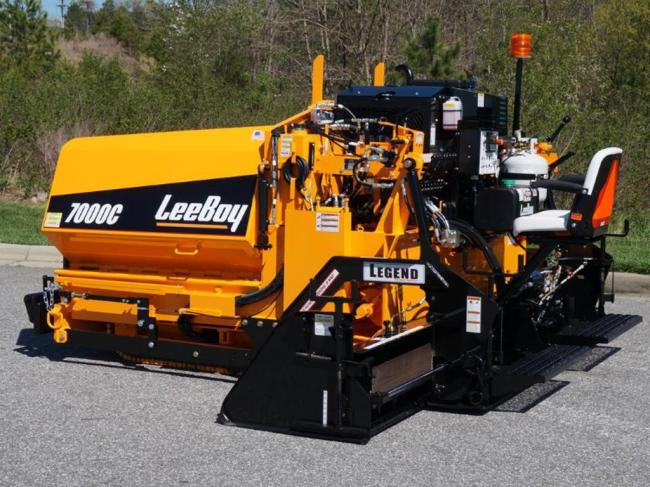

LEEBOY 7000C — ASPHALT PAVERS
Using our proven Legend Screed technology, the LeeBoy 7000C delivers a quality end result while maintaining extreme versatility. This large capacity paver is a classic entry-level conveyor paver able to maneuver flawlessly around obstacles in smaller operational areas such as parking lots and driveways. Highlighting the industry’s widest conveyor system within its class, the 7000C quickly preforms the job it has set to accomplish – laying a consistent, presentable mat each time.
PERFORMANCE FEATURES:

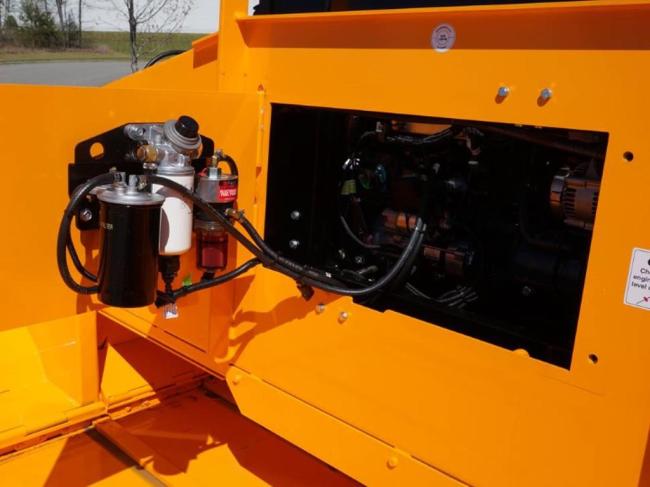

• 65 hp (48 kw) Kubota Tier 4 Final Diesel Engine
• Paving Widths Variable Up To 13’ (3.9 m)
• Low Deck Configuration
• Hydrostatic Controls
• Operator Control Functions on Both Sides of Unit

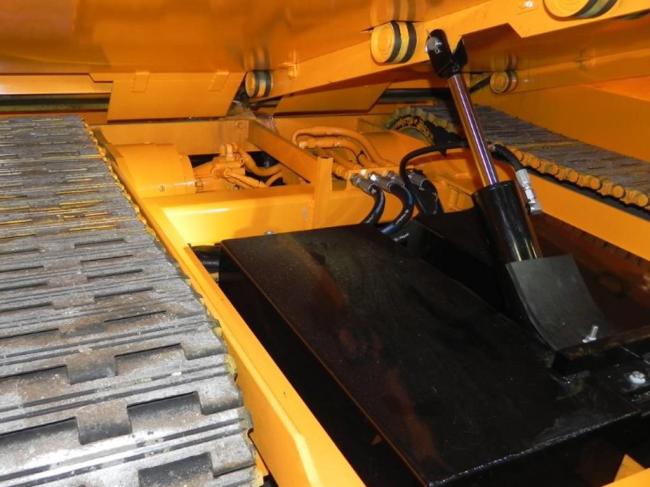

• Two 3’ (0.91 m) wide automatic conveyors
• Gauge Package for System Monitoring

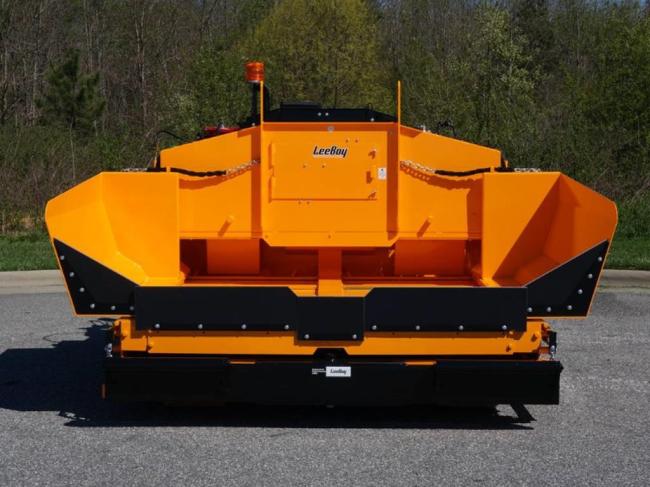

• 6 ton (5,443 kg) Capacity Material Hopper

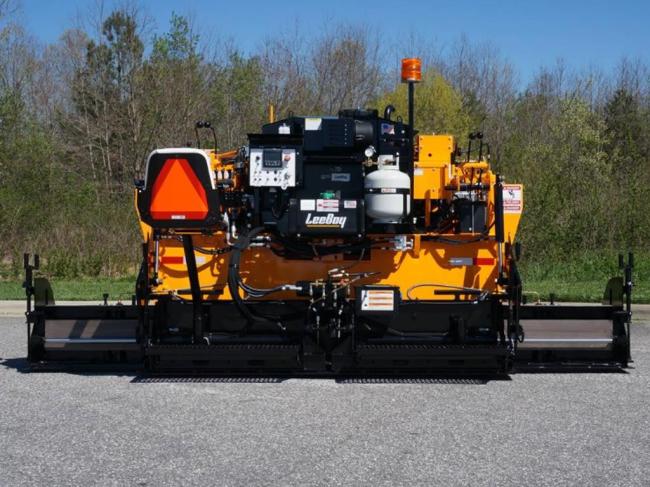

• Proven Legend Screed System
• Heated and Vibrating Screed System
• Heavy-duty Undercarriage and Track System
ADDITIONAL STANDARD EQUIPMENT
• Back-up alarm
• LED beacon Light

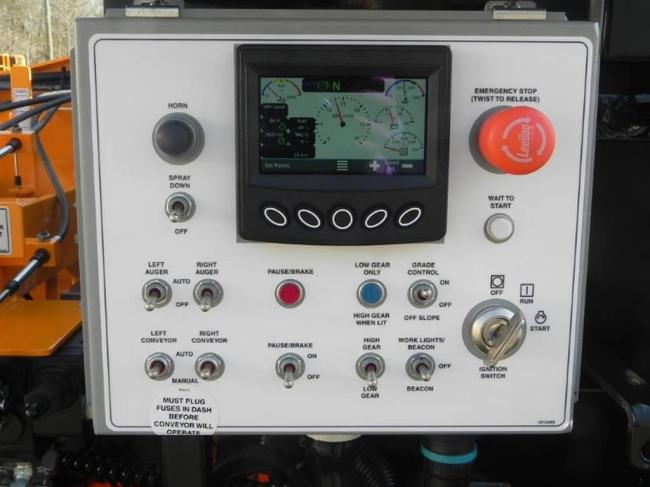

• Electronic gauge package (oil pressure, voltmeter, fuel)
• Wired for sonic auger, sensor and grade controls
OPTIONAL EQUIPMENT
• Truck hitch
• Failsafe brake with anti-creep
• Slope meter
• Second seat
• LED work light package
• Sonic auger, sensor and cords
• Hose reel, limited to one
• Electric screws for grade controls
• Wiring only, grade controls (TopCon), includes A/M modules
• Sonic grade control, one side (TopCon)
Specifications are subject to change without prior notice.
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
LEEBOY 7000C — ASPHALT PAVERS
Using our proven Legend Screed technology, the LeeBoy 7000C delivers a quality end result while maintaining extreme versatility. This large capacity paver is a classic entry-level conveyor paver able to maneuver flawlessly around obstacles in smaller operational areas such as parking lots and driveways. Highlighting the industry’s widest conveyor system within its class, the 7000C quickly preforms the job it has set to accomplish – laying a consistent, presentable mat each time.
PERFORMANCE FEATURES:
• 65 hp (48 kw) Kubota Tier 4 Final Diesel Engine
• Paving Widths Variable Up To 13’ (3.9 m)
• Low Deck Configuration
• Hydrostatic Controls
• Operator Control Functions on Both Sides of Unit
• Two 3’ (0.91 m) wide automatic conveyors
• Gauge Package for System Monitoring
• 6 ton (5,443 kg) Capacity Material Hopper
• Proven Legend Screed System
• Heated and Vibrating Screed System
• Heavy-duty Undercarriage and Track System
ADDITIONAL STANDARD EQUIPMENT
• Back-up alarm
• LED beacon Light
• Electronic gauge package (oil pressure, voltmeter, fuel)
• Wired for sonic auger, sensor and grade controls
OPTIONAL EQUIPMENT
• Truck hitch
• Failsafe brake with anti-creep
• Slope meter
• Second seat
• LED work light package
• Sonic auger, sensor and cords
• Hose reel, limited to one
• Electric screws for grade controls
• Wiring only, grade controls (TopCon), includes A/M modules
• Sonic grade control, one side (TopCon)
Specifications are subject to change without prior notice.
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications
Capacities - DEF Tank: |
|
Capacities - Fuel: |
13 gallons |
Capacities - Hydraulic Reservoir: |
40 gallons |
Capacities - Washdown Tank: |
7.5 gallons |
Dimensions - Height: |
7', adjustable to 6'4" |
Dimensions - Length: |
11' |
Dimensions - Total Weight with screed: |
13,000 lbs |
Dimensions - Width: |
8'6" transport | 10' hopper wings down |
-
Specifications
Specifications
Capacities - DEF Tank:
Capacities - Fuel:
13 gallons Capacities - Hydraulic Reservoir:
40 gallons Capacities - Washdown Tank:
7.5 gallons Dimensions - Height:
7', adjustable to 6'4" Dimensions - Length:
11' Dimensions - Total Weight with screed:
13,000 lbs Dimensions - Width:
8'6" transport | 10' hopper wings down
