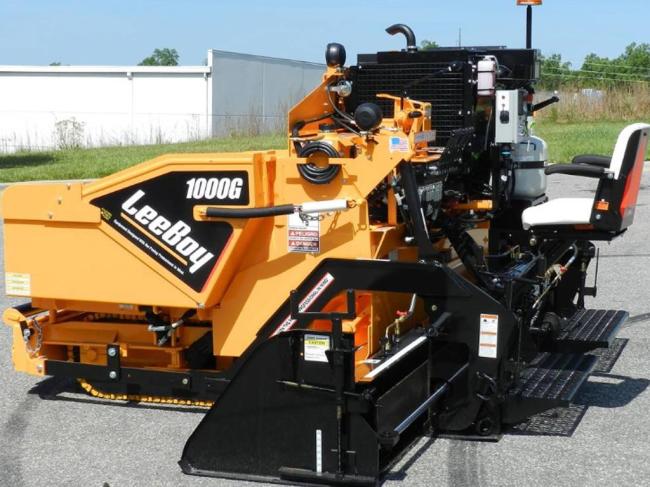

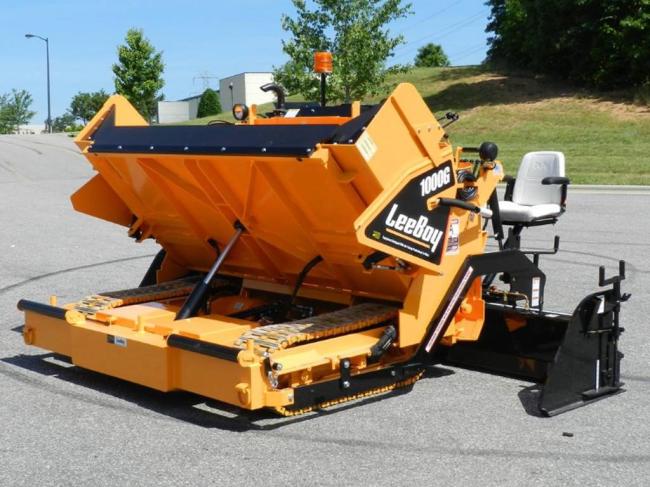

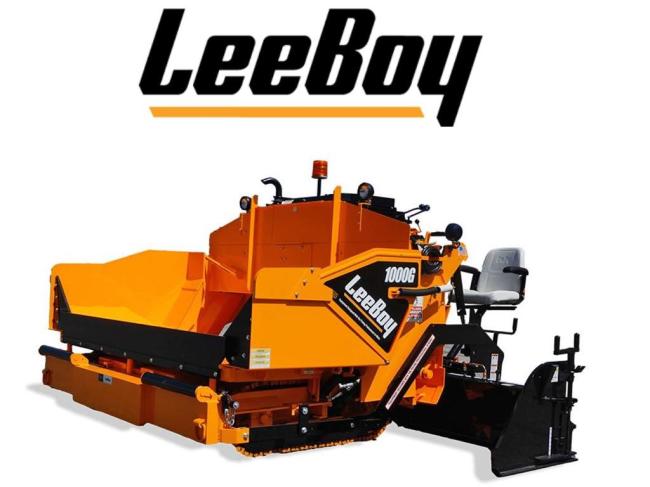

LEEBOY 1000G — ASPHALT PAVER

Small footprint, large results. The gravity-feed tilt hopper featured on the 1000G can be raised to a steeper level than any other paver in its class allowing for optimum material flow. This paver boasts of a sleek design in which the hopper wings can be retracted. This dynamic feature allows continuous material flow while reducing the machine’s overall width. As on all LeeBoy pavers, this smaller track paver features our superior Legend Screed system that is proven to supply one of the best mats in the industry.

PERFORMANCE FEATURES

• 49 hp (37 kw) Kubota Tier 4 Final Diesel Engine

• Paving Widths Variable Up To 13’

• Low Deck Configuration

• Best-In-Class Tilt Hopper Angle

• Single Lever Hopper and Wing Control

• Ultra-efficient Material Management System

• Under Auger Material Cut-Off Gates

• 5.5 Ton Capacity Material Hopper

• Steel Track for Superior Flotation

• Proven Legend Screed System

• Heated and Vibrating Screed System

ENGINE

• Kubota turbocharged diesel,

• Tier 4 Final – 49 hp (37kw

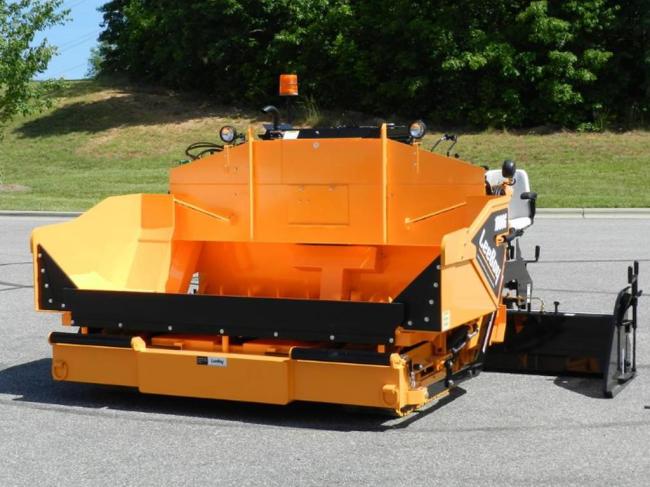

HOPPER

Hopper size: 5.5 ton

PAVING WIDTHS

Variable up to 13’

PAVING DEPTHS

Depth: 0” to 6”

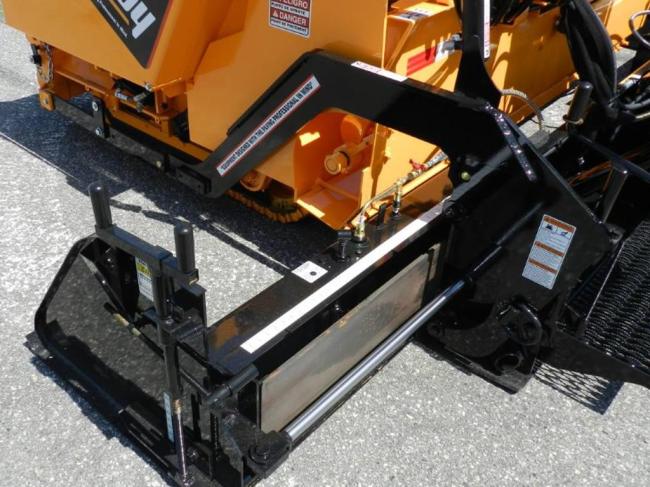

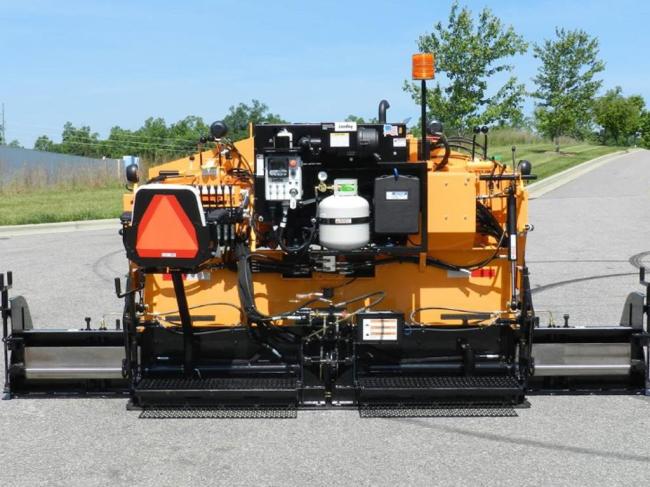

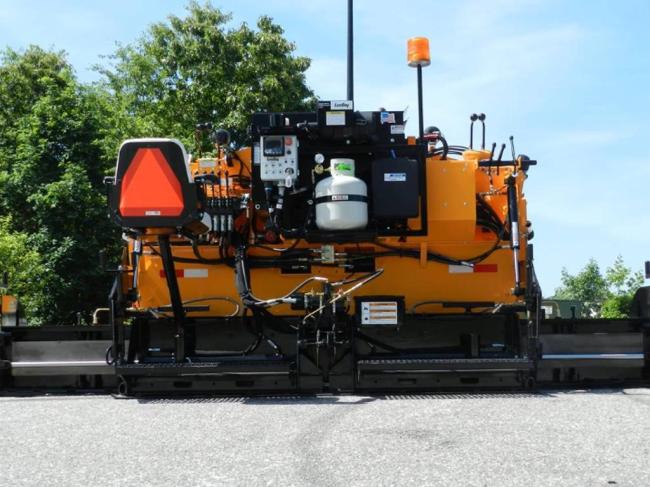

SCREED

• Legend Propane full free floating screed

• Consisting of a main screed and two hydraulically operated screed extensions

• Equipped with a electric vibrator

SCREED HEAT

• Two propane burners on main screed

• One propane burner on each extension

SCREED CROWN/VALLEY

• Equipped with a crown/invert adjustment

• Includes a depth indicator for the operator

MATERIAL HANDLING

• Two independent hydraulically operated under auger material cut-off gates

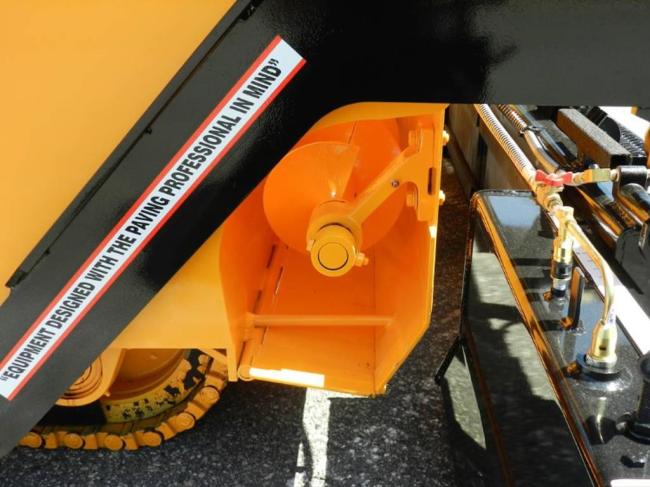

• Two independent hydraulically operated cast augers

OPERATOR’S PLATFORM

• Full machine width platform

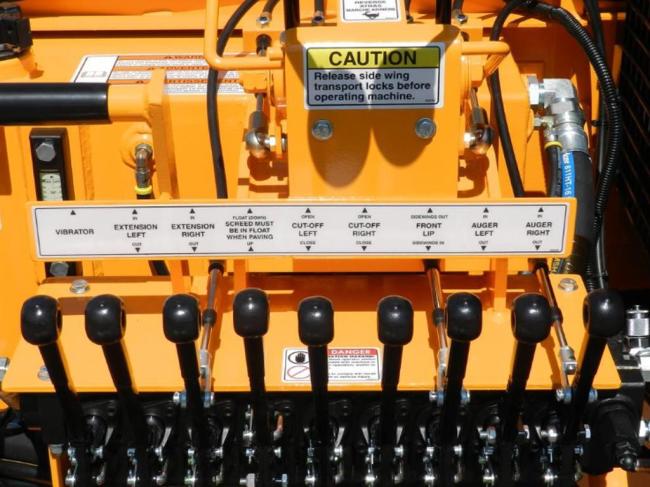

OPERATOR’S CONTROLS

• All control levers are on left side

• Right side levers include left/right drive control, right auger, right screed extension hopper

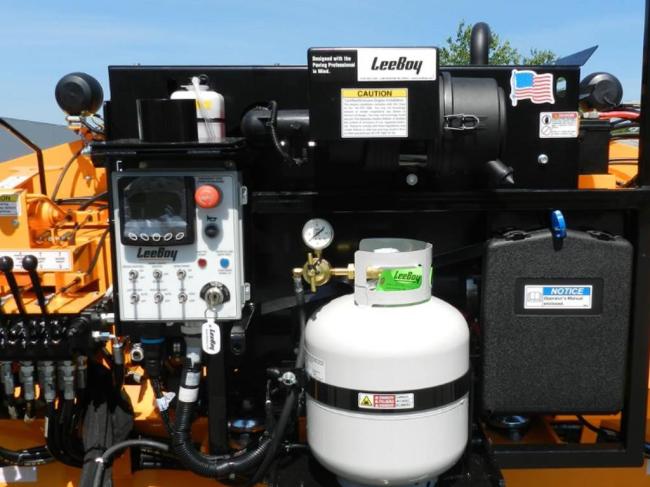

• Color graphic control screen with digital read outs. Review and monitor system vitals including: oil pressure, hour meter, fuel gauge, volt meter, water temp, tachometer, hydraulic oil temp, engine diagnostics

STEERING

Independent hydrostatic steering from left or right side of machine

WASHDOWN SYSTEM

Electric HD pump with two hoses and spray nozzles

PUSH ROLLERS

Two rollers with sealed bearings

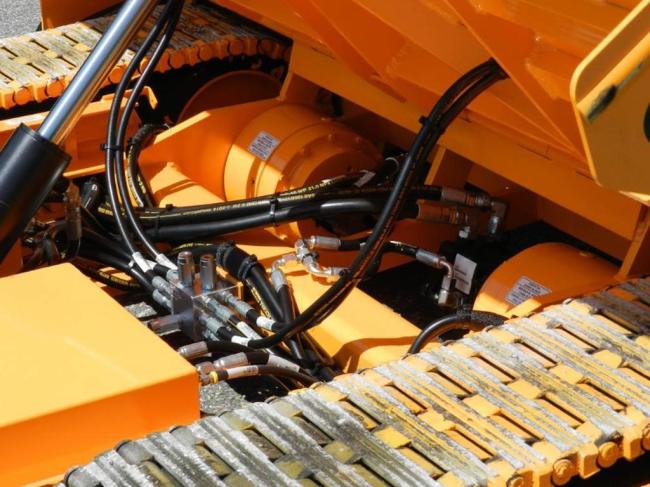

TRACK DRIVE SYSTEM

• Hydrostatically powered, self-cleaning friction drive tracks

• Track size: 14” wide x 4’ long steel (wheel base)

• Paving speed: 0 to 220’ per minute (2.5 mph)

• Travel speed: 0 to 220’ per minute (2.5 mph)

ADDITIONAL STANDARD EQUIPMENT

• Back-up alarm

• LED beacon light

• Horn

• Lockable fuel and hydraulic caps

• Electric gauge package (oil pressure, voltmeter, fuel)

• Wired for sonic auger, sensory and cord

OPTIONAL EQUIPMENT

• Two-speed track drive (track only)

• Fail-safe brake

• Rubber tire drive system

• Sonic auger, sensors and cords

• Slope meter

• LED work light package

• Hose reel, limited to one

• Electric screws for grade controls

• Wiring only, grade controls (TopCon), includes A/M modules

• Sonic grade control, one side (TopCon)

Specifications are subject to change without prior notice.

Similar models may be shown in addition to the featured model. Equipment may be shown with options.
