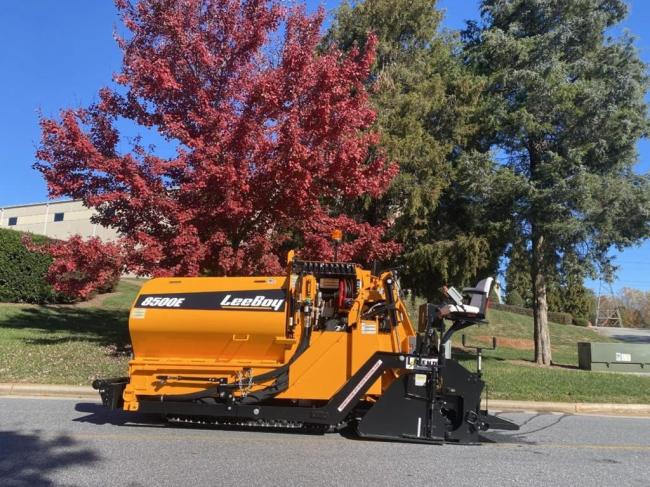

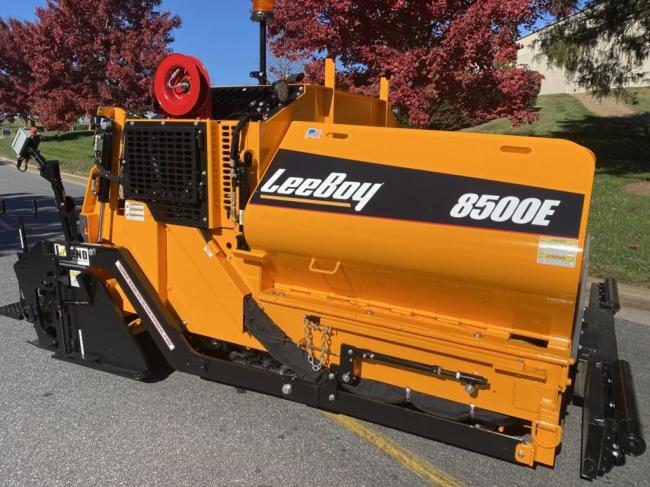

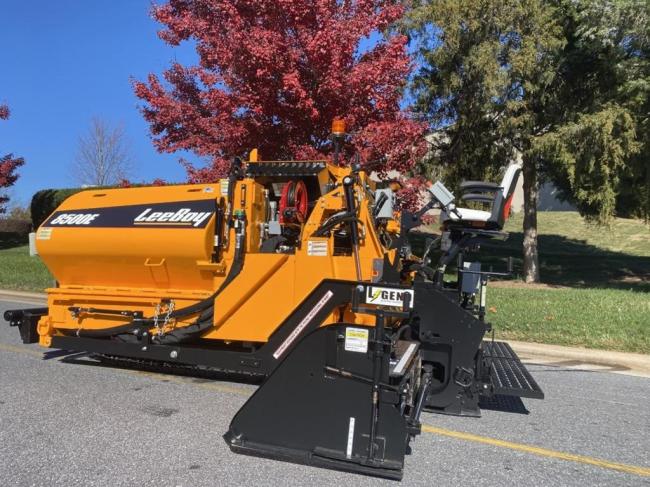

LEEBOY 8500E — ASPHALT PAVERS
Boasting of a small footprint yet retaining a 15 foot-wide screed, the LeeBoy 8500E allows for wider and longer pulls than competitive pavers. The new and improved 8500E series paver is equipped for the next generation, with a 71 hp Kubota turbocharged diesel engine: DOC only. No regen required. This machine is enhanced with 12″ augers, heavy duty radius hopper wings, and more robust hydraulics for cooling and efficiency. The larger fuel tank increases the daily run time. These enhancements make the 8500E more productive than ever, along with less hand work, means the end user minimizes the number of stops which increases productivity and profitability. The 8500E features upgraded controls which lessens any learning curve and allows for immediate use. This paver is a true commercial class machine easily fitting onto a trailer with other complementary equipment in order to provide high revenue opportunities for its patrons.
PERFORMANCE FEATURES
• 71 hp (53 kw) Kubota Tier 4 Final Turbocharged Diesel DOC Only Engine
• Paving Widths Variable Up To 15’

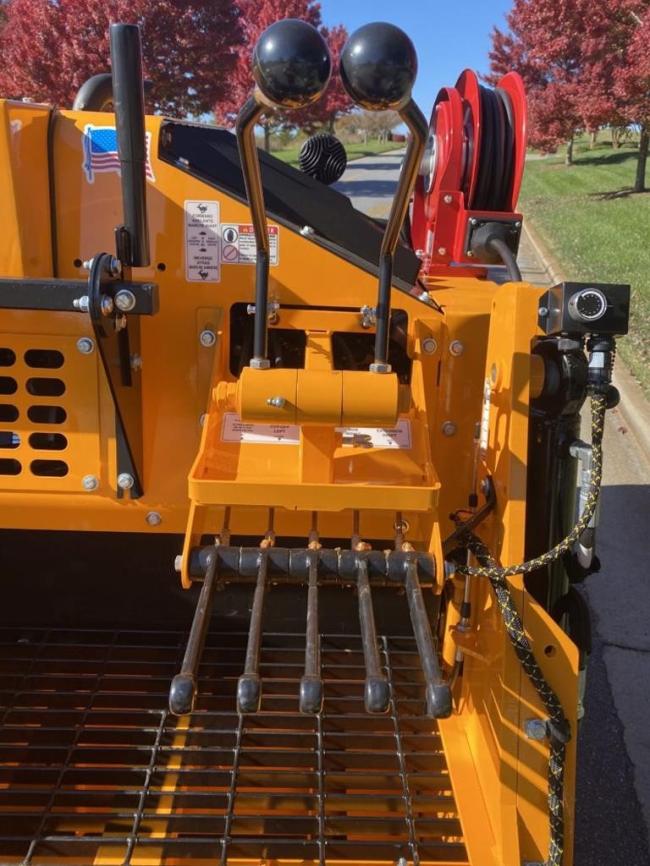

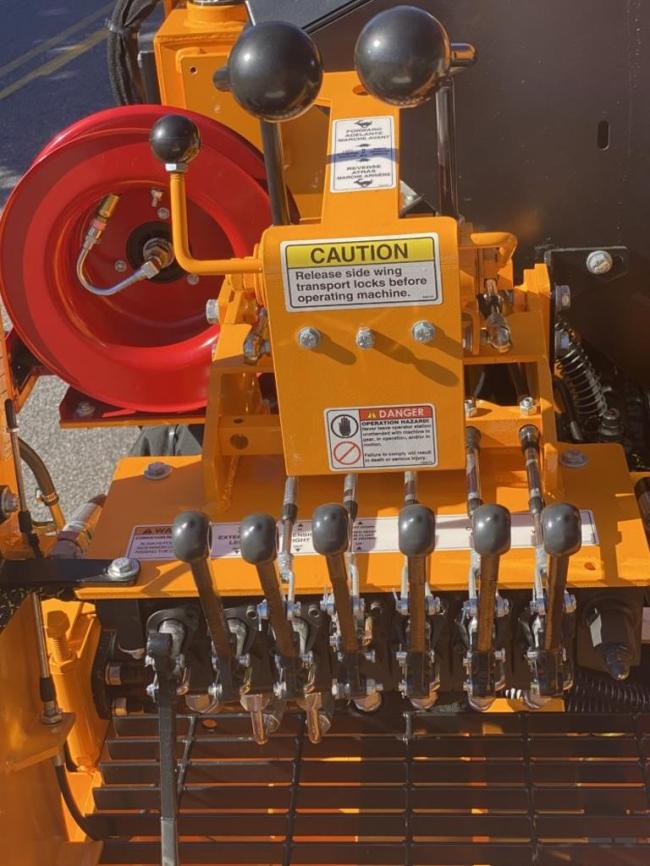

• Left Side Control Levers, Sliding Operator Control Station
• Ultra-efficient Material Management System
• Gauge Package for System Monitoring
• 7.5 Ton Capacity Material Hopper

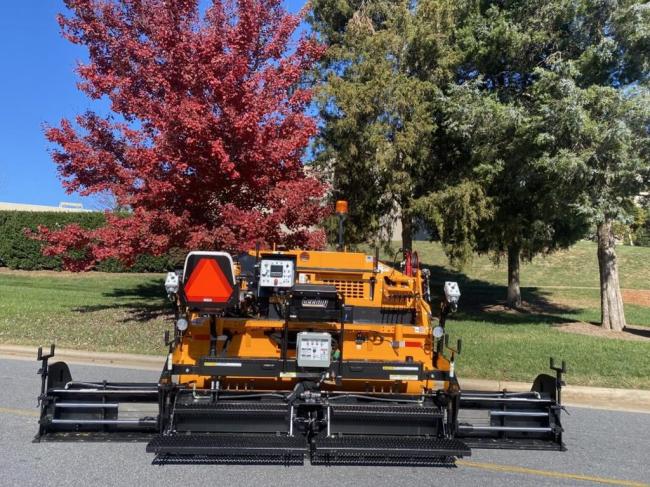

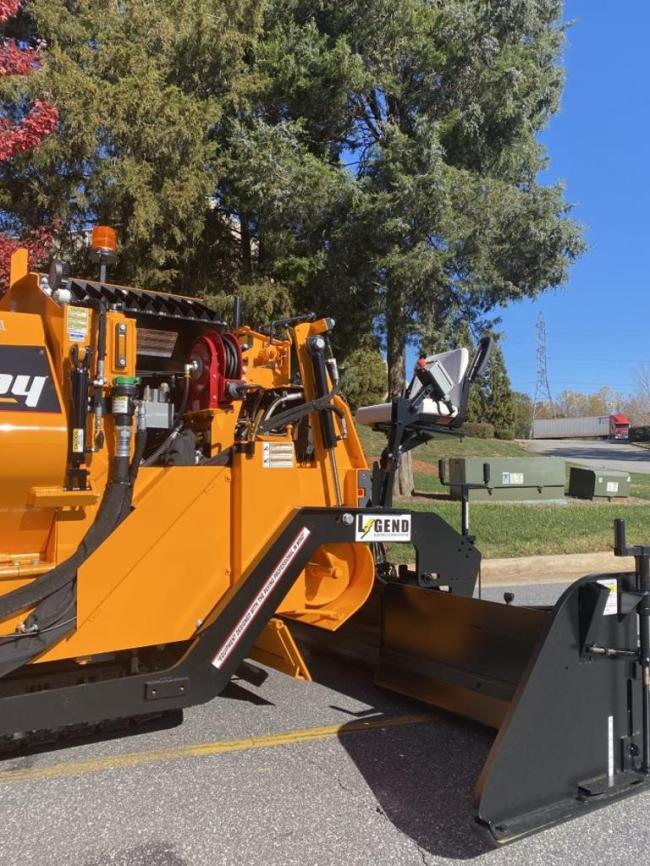

• Proven Legend Screed System
• Propane or Electric (option) Screed Heat
• Steel Track Drive with Automatic Adjustment
• Automatic Screed Heat Cycling
ADDITIONAL STANDARD EQUIPMENT
• Back-up alarm
• LED beacon light

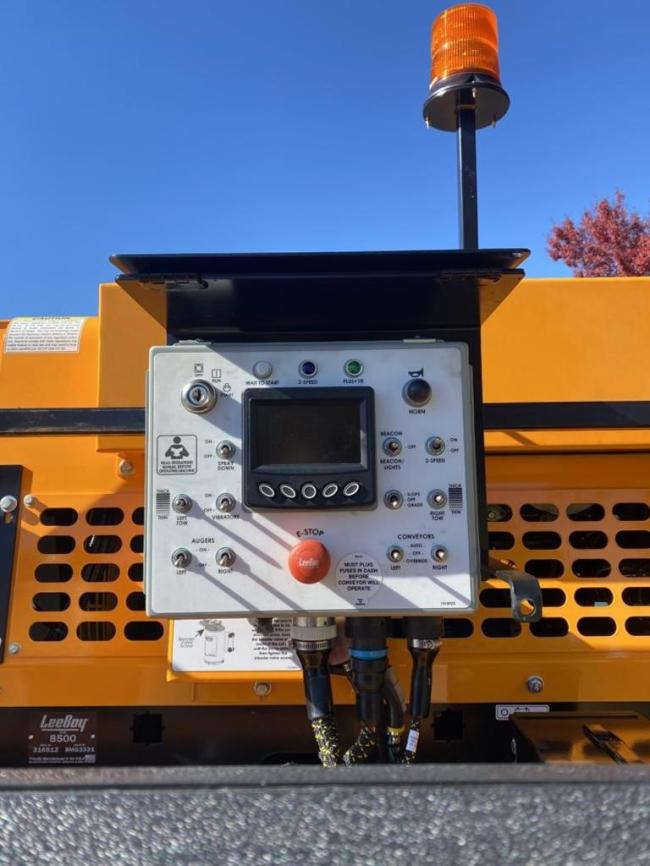

• Electronic gauge package (oil pressure, voltmeter and fuel)
• Glow plugs
• Vandalism protection covers
• Horn
• Wired for sonic auger, sensors and cords
OPTIONAL EQUIPMENT
• Legend Electric screed 8’ to 15’
• Heated end gates
• 14” polyurethane pad track
• Rubber track 15.75” wide continuous in lieu of steel
• Truck hitch
• Slope meter
• Second seat
• LED work light package

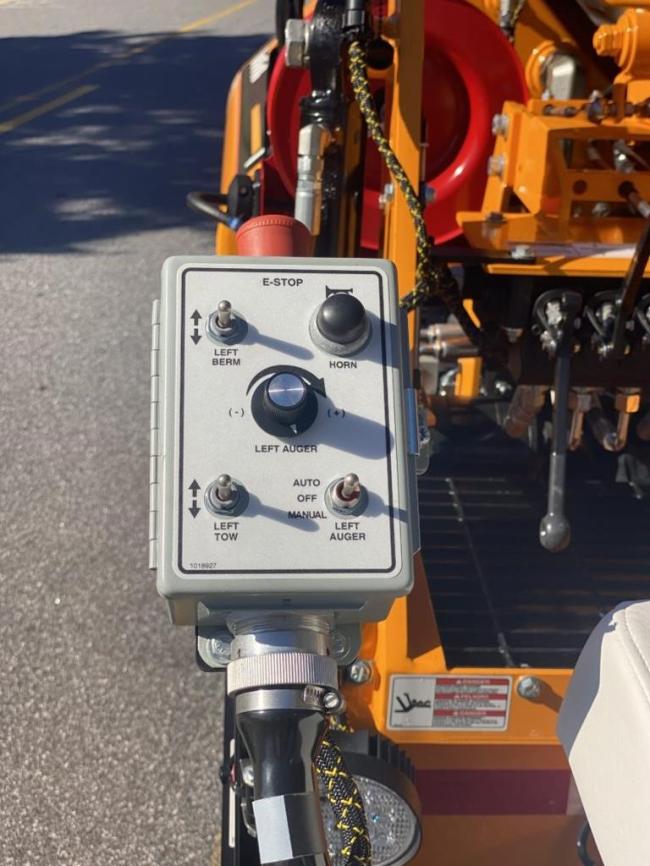

• Sonic auger, sensors and cords
• Electric screws for grade controls
• Wiring only, grade controls (TopCon)
• Sonic grade controls, one side (TopCon)
• Dual grade controls (TopCon), includes electric screws

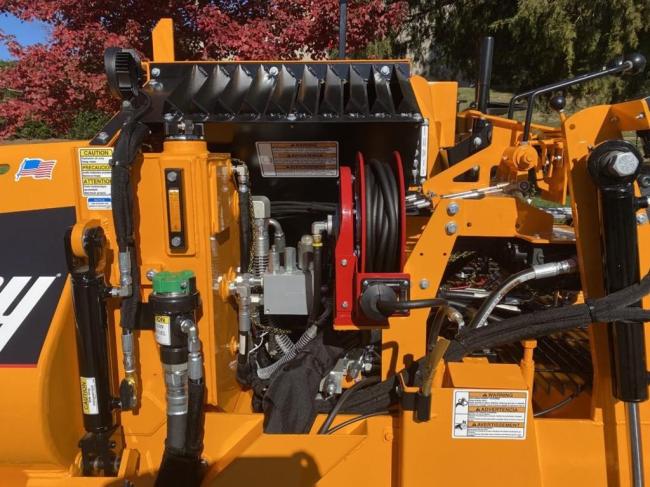

• Hose reel, limited to two
Specifications are subject to change without prior notice.
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
LEEBOY 8500E — ASPHALT PAVERS
Boasting of a small footprint yet retaining a 15 foot-wide screed, the LeeBoy 8500E allows for wider and longer pulls than competitive pavers. The new and improved 8500E series paver is equipped for the next generation, with a 71 hp Kubota turbocharged diesel engine: DOC only. No regen required. This machine is enhanced with 12″ augers, heavy duty radius hopper wings, and more robust hydraulics for cooling and efficiency. The larger fuel tank increases the daily run time. These enhancements make the 8500E more productive than ever, along with less hand work, means the end user minimizes the number of stops which increases productivity and profitability. The 8500E features upgraded controls which lessens any learning curve and allows for immediate use. This paver is a true commercial class machine easily fitting onto a trailer with other complementary equipment in order to provide high revenue opportunities for its patrons.
PERFORMANCE FEATURES
• 71 hp (53 kw) Kubota Tier 4 Final Turbocharged Diesel DOC Only Engine
• Paving Widths Variable Up To 15’
• Left Side Control Levers, Sliding Operator Control Station
• Ultra-efficient Material Management System
• Gauge Package for System Monitoring
• 7.5 Ton Capacity Material Hopper
• Proven Legend Screed System
• Propane or Electric (option) Screed Heat
• Steel Track Drive with Automatic Adjustment
• Automatic Screed Heat Cycling
ADDITIONAL STANDARD EQUIPMENT
• Back-up alarm
• LED beacon light
• Electronic gauge package (oil pressure, voltmeter and fuel)
• Glow plugs
• Vandalism protection covers
• Horn
• Wired for sonic auger, sensors and cords
OPTIONAL EQUIPMENT
• Legend Electric screed 8’ to 15’
• Heated end gates
• 14” polyurethane pad track
• Rubber track 15.75” wide continuous in lieu of steel
• Truck hitch
• Slope meter
• Second seat
• LED work light package
• Sonic auger, sensors and cords
• Electric screws for grade controls
• Wiring only, grade controls (TopCon)
• Sonic grade controls, one side (TopCon)
• Dual grade controls (TopCon), includes electric screws
• Hose reel, limited to two
Specifications are subject to change without prior notice.
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications
Capacities - DEF Tank: |
|
Capacities - Fuel: |
23 gallons |
Capacities - Hydraulic Reservoir: |
19 gallons |
Capacities - Washdown Tank: |
7 gallons |
Dimensions - Height: |
6’ 4” with beacon folded down |
Dimensions - Length: |
12’ 8” |
Dimensions - Total Weight with screed: |
18,100 lbs |
Dimensions - Width: |
8'6" transport | 10' hopper wings down |
Engine - : |
|
Engine - Kubota turbocharged diesel: |
DOC only. No regen required. Tier 4 Final – 71hp (53 kW) @ 2,200 RPM |
-
Specifications
Specifications
Capacities - DEF Tank:
Capacities - Fuel:
23 gallons Capacities - Hydraulic Reservoir:
19 gallons Capacities - Washdown Tank:
7 gallons Dimensions - Height:
6’ 4” with beacon folded down Dimensions - Length:
12’ 8” Dimensions - Total Weight with screed:
18,100 lbs Dimensions - Width:
8'6" transport | 10' hopper wings down Engine - :
Engine - Kubota turbocharged diesel:
DOC only. No regen required. Tier 4 Final – 71hp (53 kW) @ 2,200 RPM
