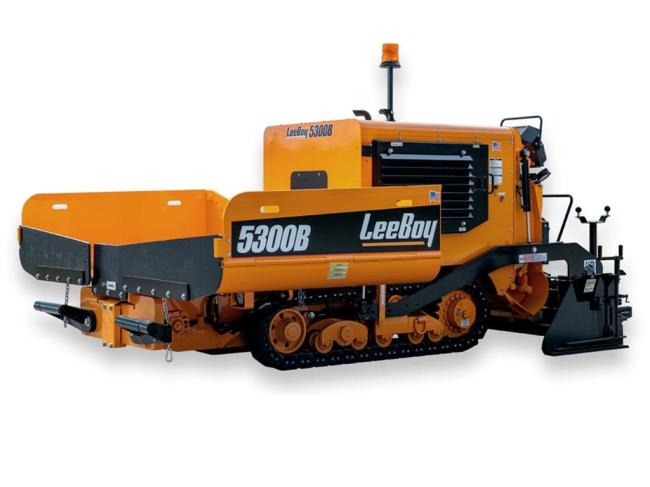

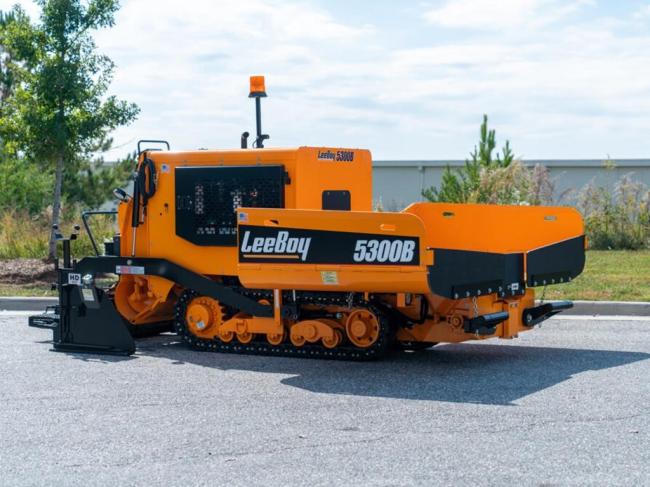

LEEBOY 5300B — ASPHALT PAVERS

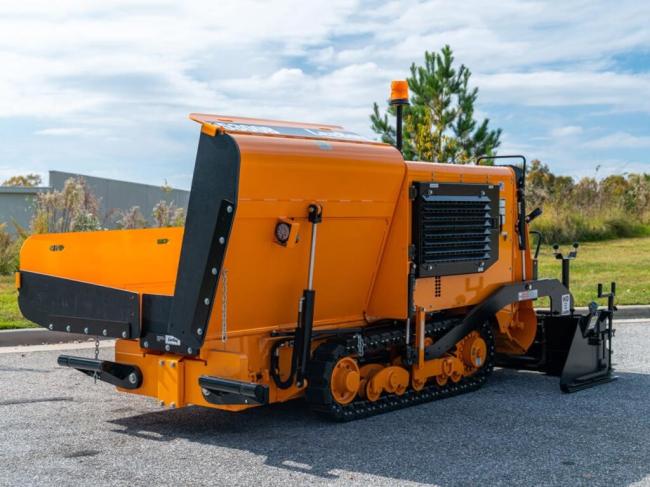

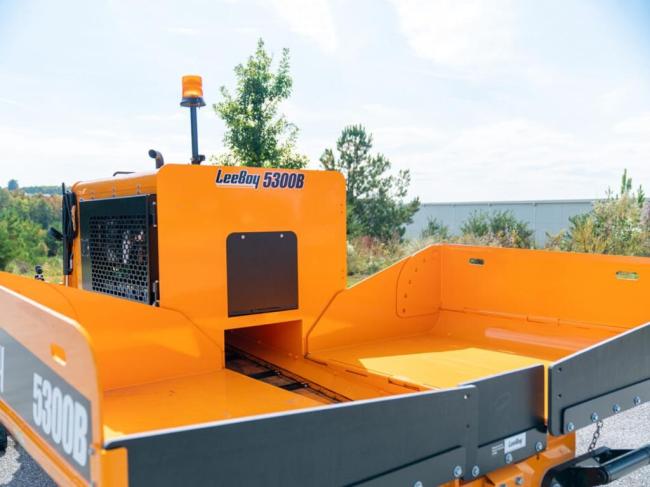

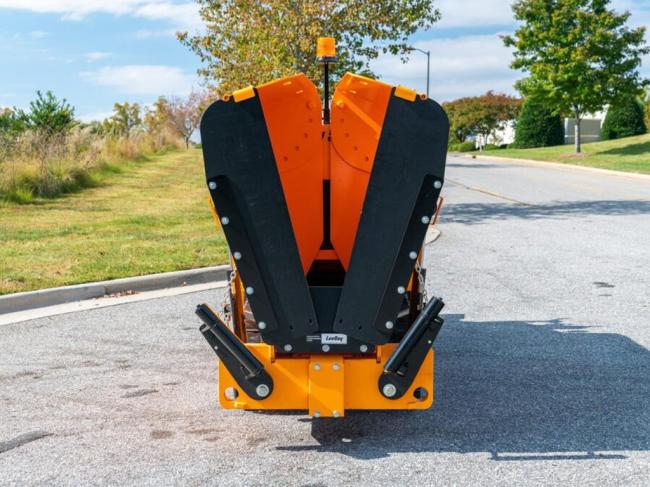

One of the industry’s most versatile and quietest compact pavers, the LeeBoy 5300B asphalt paver material hopper allows several variations, one side up or both sides down to allow asphalt to be fed from a shuttle buggy or skid steer or dump truck. While allowing for the ability to fit into tight spaces. By maintaining a large capacity material hopper and ultra-efficient material management system, the paver provides the operator with precise control of the head of material at the main screed and hydraulic extensions. This unique design is ideal for the smallest of paving jobs to include walking trails, cart paths, sidewalks, trenches, mill, patch and repair work.
PERFORMANCE FEATURES

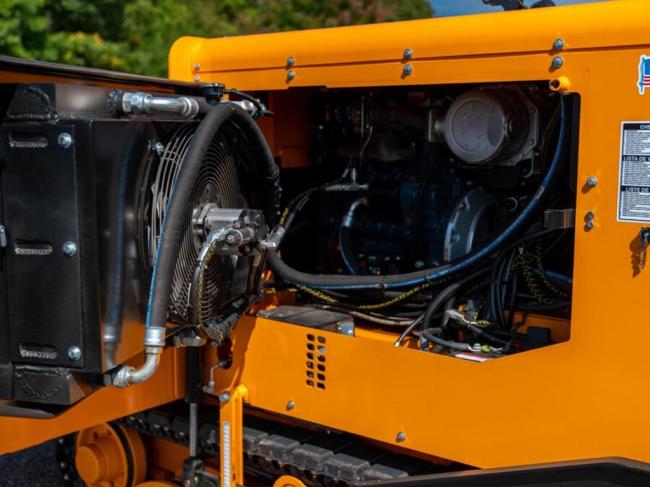

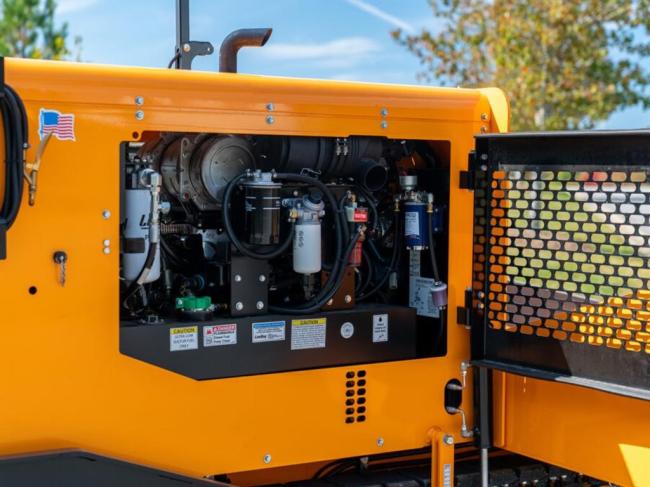

• 64 hp (48 kw) Kubota Tier 4 Final Diesel Engine
• Paving Widths Variable Up To 7’
• Low Deck Configuration
• Traditional, Single Control Functionality

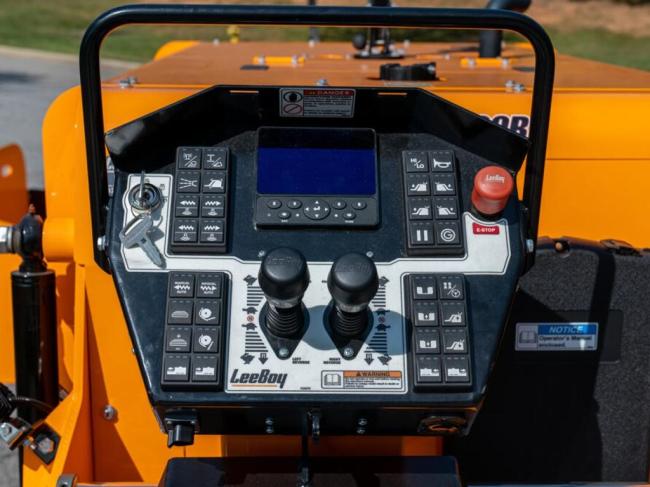

• User-friendly icon based CAN Bus control station
• Ultra-efficient Material Management System
• Hydraulic Pressure Sensors for System Monitoring

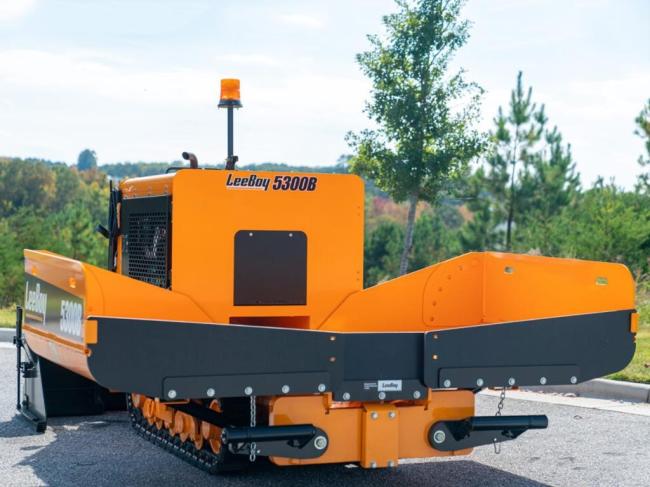

• 7 Ton Capacity Material Hopper
• Proven Legend Screed System
• Electric Screed Heat

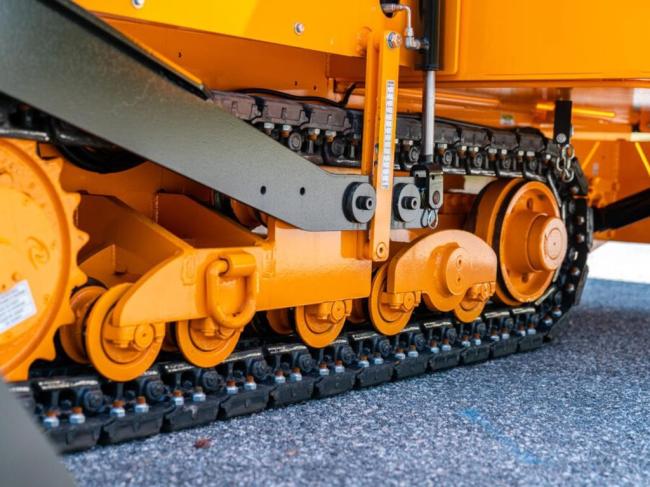

• Heavy-duty Undercarriage and Track System
ADDITIONAL STANDARD EQUIPMENT
• Back-up alarm
• LED beacon light
• LED work light package
• Pressure transducers
• Sonic auger, sensors and cords
• Grade control wiring (Topcon or Spectra-Physics)
• Slim line end gates
OPTIONAL EQUIPMENT
• 9’ paving kit, includes auger extensions, shields and screed extensions
• Slope meter
• Swivel/pivoting push roller
• Hydraulic tow-points
• Dual grade control (TopCon)
• Dual grade and slope (TopCon)
• Left hand auger strike off plate
• Right hand auger strike off plate
• Steering knob drive control with forward/ reverse joystick
• Rubber pad tracks
Specifications are subject to change without prior notice.
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
LEEBOY 5300B — ASPHALT PAVERS
One of the industry’s most versatile and quietest compact pavers, the LeeBoy 5300B asphalt paver material hopper allows several variations, one side up or both sides down to allow asphalt to be fed from a shuttle buggy or skid steer or dump truck. While allowing for the ability to fit into tight spaces. By maintaining a large capacity material hopper and ultra-efficient material management system, the paver provides the operator with precise control of the head of material at the main screed and hydraulic extensions. This unique design is ideal for the smallest of paving jobs to include walking trails, cart paths, sidewalks, trenches, mill, patch and repair work.
PERFORMANCE FEATURES
• 64 hp (48 kw) Kubota Tier 4 Final Diesel Engine
• Paving Widths Variable Up To 7’
• Low Deck Configuration
• Traditional, Single Control Functionality
• User-friendly icon based CAN Bus control station
• Ultra-efficient Material Management System
• Hydraulic Pressure Sensors for System Monitoring
• 7 Ton Capacity Material Hopper

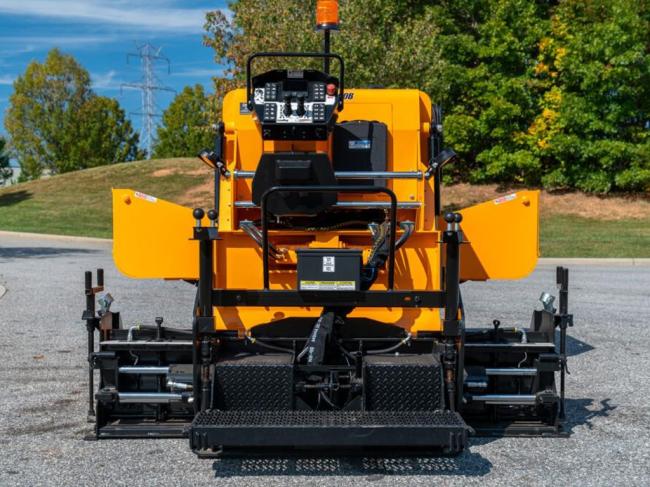

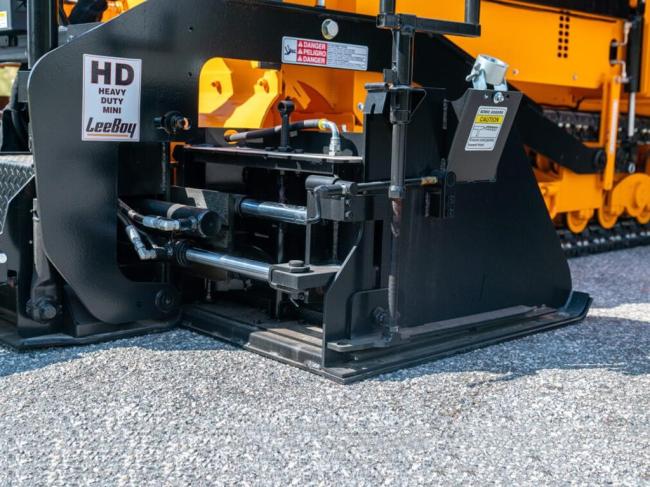

• Proven Legend Screed System
• Electric Screed Heat
• Heavy-duty Undercarriage and Track System
ADDITIONAL STANDARD EQUIPMENT
• Back-up alarm
• LED beacon light
• LED work light package
• Pressure transducers
• Sonic auger, sensors and cords
• Grade control wiring (Topcon or Spectra-Physics)
• Slim line end gates
OPTIONAL EQUIPMENT
• 9’ paving kit, includes auger extensions, shields and screed extensions
• Slope meter
• Swivel/pivoting push roller
• Hydraulic tow-points
• Dual grade control (TopCon)
• Dual grade and slope (TopCon)
• Left hand auger strike off plate
• Right hand auger strike off plate
• Steering knob drive control with forward/ reverse joystick
• Rubber pad tracks
Specifications are subject to change without prior notice.
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications
Capacities - Fuel: |
25 gallons |
Capacities - Hydraulic Reservoir: |
33 gallons |
Capacities - Washdown Tank: |
5 gallons |
Dimensions - Height: |
5’ 9” |
Dimensions - Length: |
15'5" |
Dimensions - Total Weight w/screed: |
12,700 lbs |
Dimensions - Width: |
4'5" transport | 9'7" hopper wings down |
Engine - Kubota turbocharged diesel: |
Tier 4 Final – 64.4 hp (48 kw) @ 2,400 rpm |
-
Specifications
Specifications
Capacities - Fuel:
25 gallons Capacities - Hydraulic Reservoir:
33 gallons Capacities - Washdown Tank:
5 gallons Dimensions - Height:
5’ 9” Dimensions - Length:
15'5" Dimensions - Total Weight w/screed:
12,700 lbs Dimensions - Width:
4'5" transport | 9'7" hopper wings down Engine - Kubota turbocharged diesel:
Tier 4 Final – 64.4 hp (48 kw) @ 2,400 rpm
