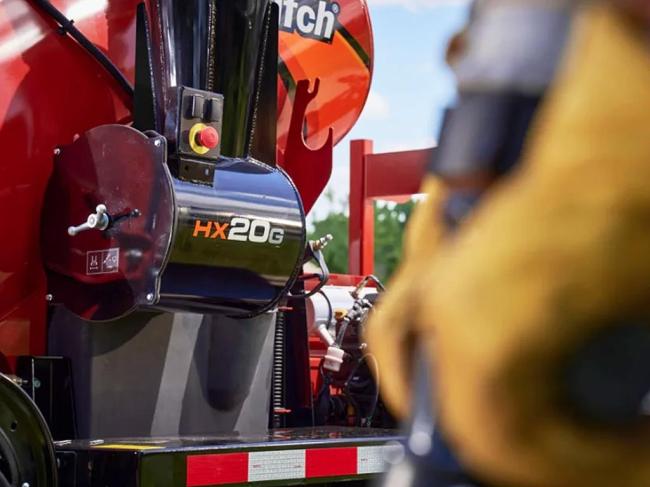

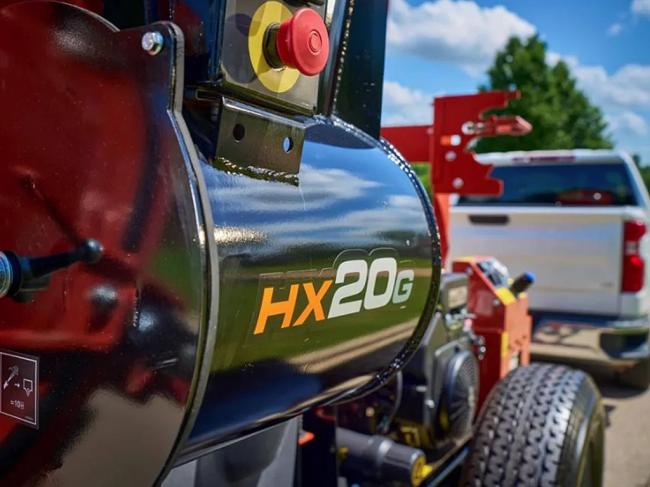

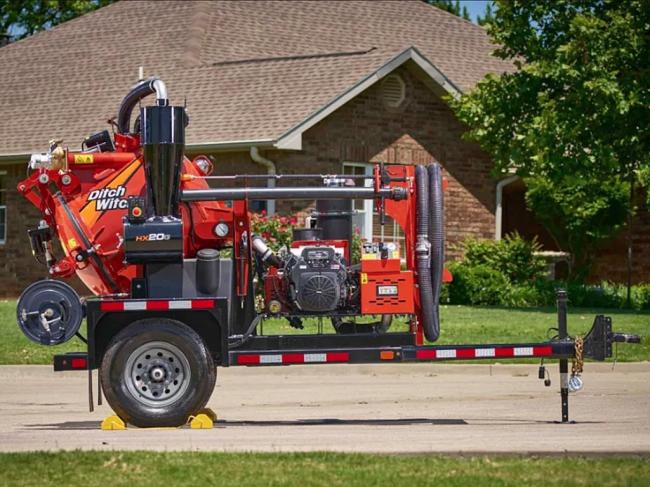

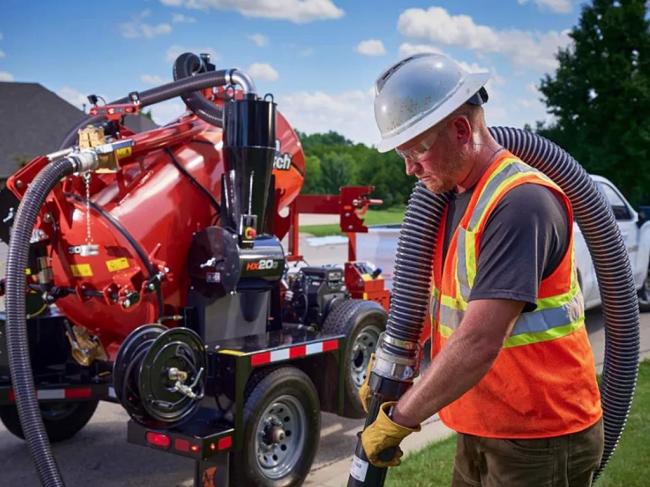

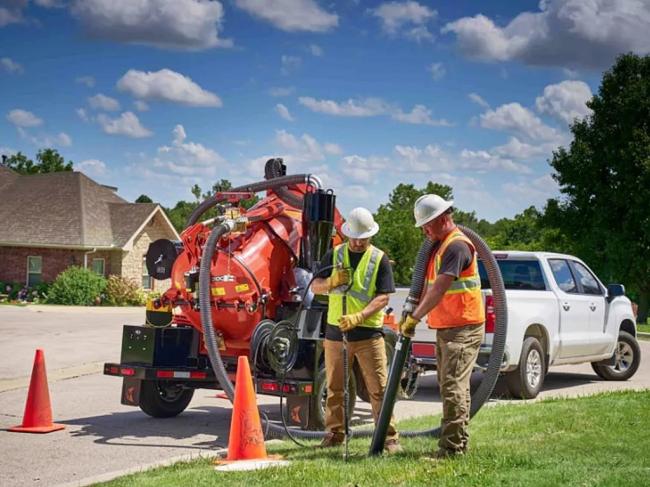

HX20G GAS-POWERED VACUUM EXCAVATOR
SMALL TRAILER BUILD. BIG GAS POWER.
Don’t be fooled by the small footprint, the HX20G works BIG. This low-profile trailer vac is designed to be towed by a half-ton truck and its 26.5-hp Kohler® gasoline engine delivers impressive suction, powering the vac’s 541 cfm and 15 inHg of lift.
AFFORDABLE ENGINE POWER
Every vac in the HXG line is equipped with a powerful gasoline engine for reliable performance at a budget-friendly price point. The engines featured are 25.5-hp, 31-hp and
40-hp models, all designed to deliver optimal power, water pressure and suction.
EFFICIENT AIRFLOW & WATER PRESSURE
The HXG line was built for efficiency. All models feature a powerful 3,000 PSI water system with blower capabilities ranging from 541 CFM to 1,000 CFM, ensuring you have the
airflow and pressure needed to get the job done.
ENHANCED VERSATILITY
HXG vacs were designed for you to tailor your debris tank capacity to your budget and jobsite needs, with each model offering two different tank capacity options. Additionally,
each model can be towed by a half-ton truck, eliminating the need for a CDL, reducing labor costs and allowing for easier transportation.
SUPERIOR MANEUVERABILITY
The compact footprint and low-profile design of the HXG line, including a narrow frame and reduced height, allow for exceptional maneuverability in tight urban areas and other cramped jobsites.
OPTIMIZED DESIGN
Every HXG trailer vac was designed for easier storage and greater stability. The HX20G’s freshwater tank is positioned beneath the debris tank for a more stable and compact
design, while the HX30G and HX40G allow you to store the vac hose inside the trailer frame for added ease and convenience.
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are general and subject to change without notice. If exact measurements are required, equipment should be weighed and measured. Due to selected options, delivered equipment may not necessarily match that shown.
