Ditch Witch SK1000
| Make | Ditch Witch |
| Model | SK1000 |
| Type | Mini Skid Steers |
How can we help?
Description

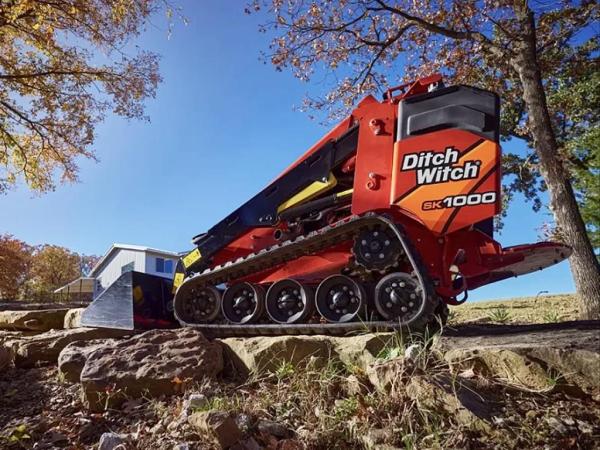

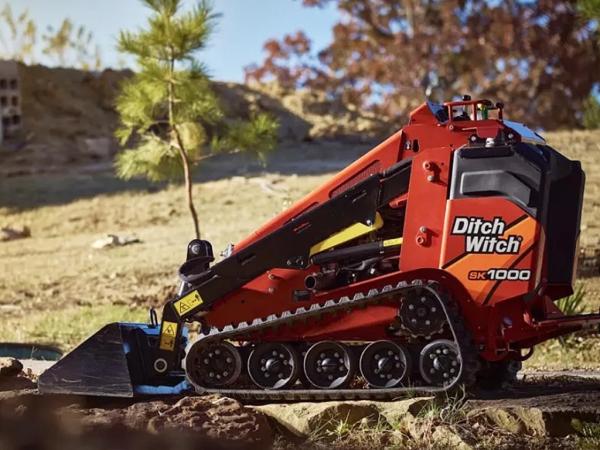

SK1000 MINI SKID STEER
POWER WHEN YOU NEED IT. SPEED WHEN YOU WANT IT.
The sweet spot between power and speed? That’s where the SK1000 lives. By directing 12 HP to the attachment and 11.2 HP to the ground drive, this machine ensures you always hit hard and move fast—without compromising one for the other.
BALANCED PERFORMANCE
The SK1000 directs 12 HP to the attachment and 11.2 HP to the ground drive, delivering the perfect balance of power and speed.
OPEN ROLLER TRACKS
A completely open track design prevents mud buildup and simplifies cleaning and maintenance.
50 FT⋅LBS OF TORQUE
50 ft⋅lbs of torque increases lifting power and pushing force, so you can take on heavy projects with ease.
OPERATING CAPACITY
1,000-lb operating capacity brings eye-popping performance to the job, helping you make light work of heavy lifting, grappling, pushing and more.
YANMAR® TURBOCHARGED DIESEL ENGINE
The SK1000 is powered by a 23.2-hp Yanmar turbocharged diesel engine that brings plenty of power to the machine’s components.
DUAL JOYSTICK CONTROLS
An ergonomically designed dual joystick control system allows you to work for long periods of time without hand cramps or fatigue. Also, available in single joystick configuration for those operators who want old-school controls.
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are general and subject to change without notice. If exact measurements are required, equipment should be weighed and measured. Due to selected options, delivered equipment may not necessarily match that shown.
Specifications
- BATTERY - Electrical System: 12V
- BATTERY - SAE Cold Crank @ 0°F (-18°C): 750 amps
- BATTERY - SAE Reserve Capacity Rating: 120 min
- DIMENSIONS - Angle of Departure: 26°
- DIMENSIONS - Ground Clearance, Min: Center: 8.6 in | 218 mm
- DIMENSIONS - Ground Clearance, Min: Side: 4.2 in | 107 mm
- DIMENSIONS - Hinge Pin Height, Max: 82 in | 2.1 m
- DIMENSIONS - Operating Height, Max, Std. Bucket: 105 in | 2.67 m
- DIMENSIONS - Overall Height of Machine: 56 in | 1.42 m
- DIMENSIONS - Overall Length of Loader, No Attachment: 87 in | 2.21 m
- DIMENSIONS - Overall Length of Machine, Std. Bucket: 105 in | 2.67 m
- DIMENSIONS - Track Width:
- DIMENSIONS - Wheelbase/Track Length: 43 in | 1.1 m
- FLUID CAPACITIES - Engine Oil, w/Filter: 3.5 qt | 3.3 L
- FLUID CAPACITIES - Fuel Tank Capacity: 10.5 gal | 40 L
- FLUID CAPACITIES - Hydraulic Reservoir Capacity: 9.2 gal | 35 L
- HYDRAULIC SYSTEM - Auxiliary Circuit: Double Gear Pump: Flow Rate Pump 1: 6.3 gpm | 23.8 l/min
- HYDRAULIC SYSTEM - Auxiliary Circuit: Double Gear Pump: Flow Rate Pump 2: 5.7 gpm | 21.5 l/min
- HYDRAULIC SYSTEM - Auxiliary Circuit: Double Gear Pump: Pressure: 3,000 psi | 207 bar
- HYDRAULIC SYSTEM - Ground drive, dual hydrostatic pumps: Flow Rate: 14.4 gpm | 54.6 l/min
- HYDRAULIC SYSTEM - Ground drive, dual hydrostatic pumps: Pressure: 3,625 psi | 250 bar
- NOISE LEVEL - Exterior : 102 dBA
- NOISE LEVEL - Operator : 89 dBA
- PERFORMANCE - Ground Drive Speed: Forward/Reverse: 4.0 mph | 6.4 km/h
- PERFORMANCE - Ground pressure (ISO/CD 16754): 7-in (180-mm) tracks: 5.2 psi | 0.36 bar
- PERFORMANCE - Ground Pressure (ISO/CD 16754): 9-in (230-mm) tracks: 4.1 psi | 0.28 bar
- PERFORMANCE - Machine weight (no attachment, fluids full): 3,140 lb | 1424 kg
- PERFORMANCE - Machine weight, weighted : 3,480 lb | 1579 kg
- PERFORMANCE - Operating capacity, weighted: 1,356 lb | 615 kg
- PERFORMANCE - Tipping capacity, weighted: 3,222 lb | 1461 kg
- POWER - Bore: 3.15 in | 80 mm
- POWER - Displacement: 77 in³ | 1.27 L
- POWER - Emissions Compliance: EPA Tier 4 Final | EU Stage V
- POWER - Engine: Yanmar 3TNV80FT
- POWER - Fuel: Diesel
- POWER - Gross power rating (SAE J1995): 23.2 hp | 17.3 kW
- POWER - Number of Cylinders: 3
- POWER - Rated Speed: 2,600 rpm
- POWER - Stroke: 3.31 in | 84 mm
