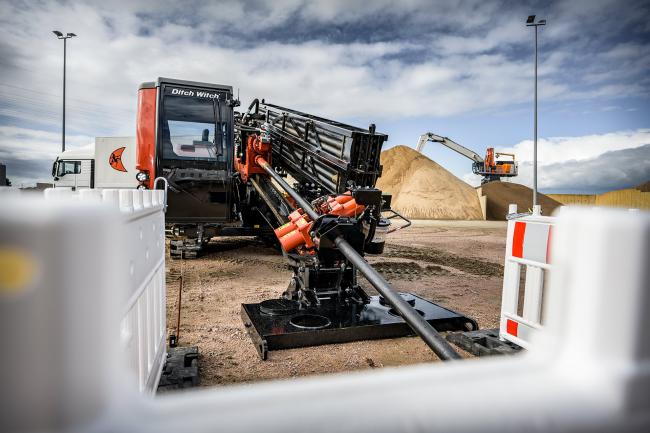

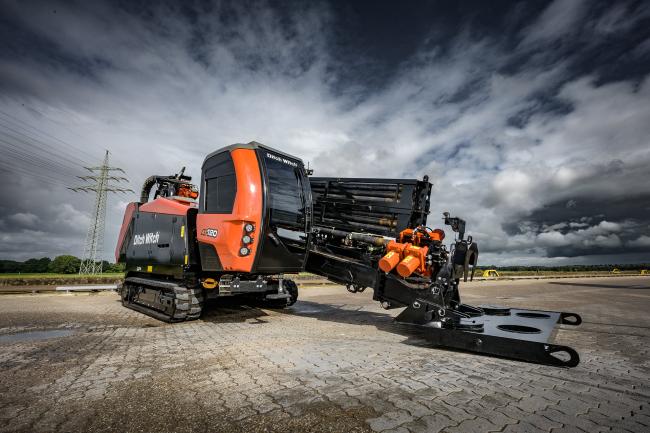

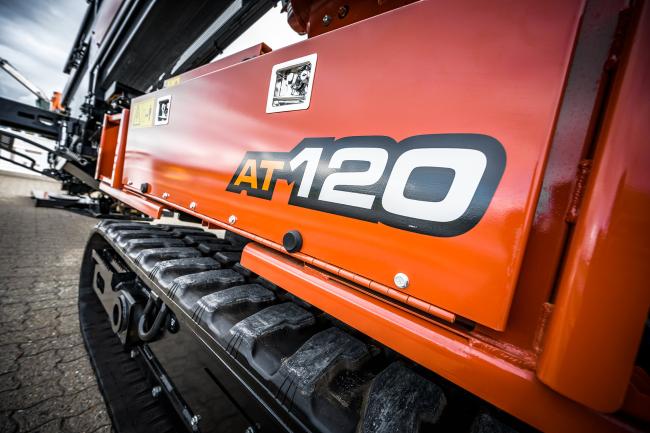

Ditch Witch AT120 ALL TERRAIN DIRECTIONAL DRILL

All Terrain

How can we help?

443-460-1070

Whether you’re facing the world’s tightest timeline or the world’s rockiest mountain, there’s a drill for that. The world’s largest All Terrain drill, the AT120 was built to dominate the toughest challenges on the planet.

Details

Dimensions

Length - 453 in; Width - 100.4 in; Height, w/ cab - 121.5 in

Operating weight - 49,761 lb

Entry angle - 12-18°; Angle of approach - 17°; Angle of departure - 17°

Fluid Capacities

DEF tank - 12.2 gal; Hydraulic reservoir - 39 gal; Fuel tank - 120 gal

Engine lubrication oil, w/filter - 18.5 qt; Antifreeze tank - 20 gal

Drilling Fluid System

Pressure, max - 1,100 psi

Flow, max - 285 gpm

Operation

Spindle speed, max - 200 rpm; Spindle torque, max - 15,500 ft∙lb

Carriage thrust travel speed - 210 fpm; Carriage pullback travel speed - 210 fpm

Thrust force - 120,000 lb; Pullback force - 120,000 lb

Bore diameter - 6.5 in; Backreamer diameter - Soil dependent

Ground travel speed: Forward/reverse - 2.8 mph

Power

Engine - Cummins QSB6.7; Fuel - Diesel

Cooling medium - Liquid; Injection - Direct

Aspiration - Turbocharged & charge air cooled; Number of cylinders - 6

Displacement - 409 in³; Bore - 4.21 in; Stroke - 4.88 in

Manufacturer’s gross power rating - 280 hp; Rated speed - 2,200 rpm

Emissions compliance - EPA Tier 4F

Noise & Vibration Levels

Operator sound pressure per ISO 6394 - < or = 80 dBA

Average vibration transmitted to the operator’s hand and whole body during normal operation does not exceed 2.5 and 0.5 m/sec² respectively.

Battery (2 Used)

SAE reserve capacity rating - 175 min

SAE cold crank rating @ 0°F (-18°C) - 950 amps
