American Augers M1200DH
| Make | American Augers |
| Model | M1200DH |
| Type | Cleaning Systems |
How can we help?
Description

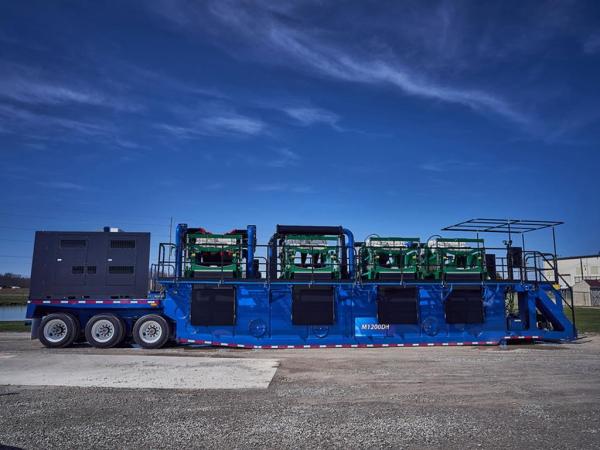

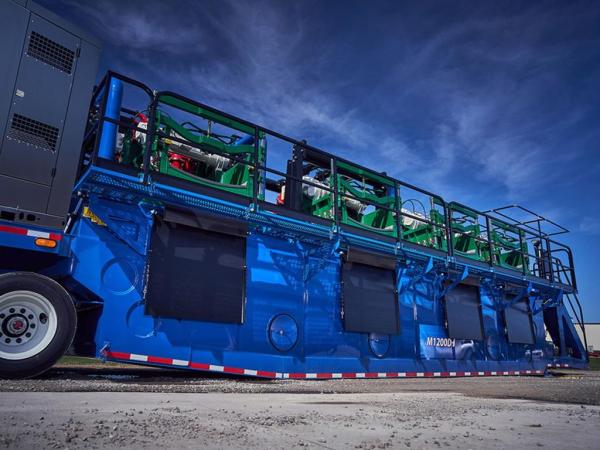

AMERICAN AUGERS CLEANING SYSTEM — M1200DH
Start earning now or three hours from now? With the easy-to-setup M1200DH, there’s only one right answer. Built with a fully hydraulic catwalk and foldout walkway, this machine will have you up and earning in no time.
• Get set up faster and get more done with a hydraulic catwalk and foldout walkway.
• Avoid unplanned downtime with button guards, inset valves and new framing for easy charge pump moving.

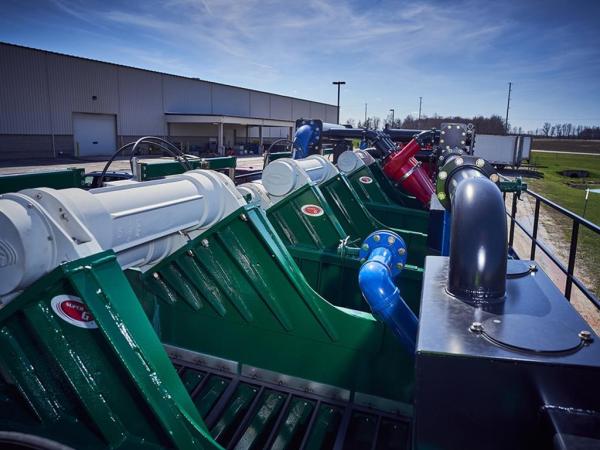

• Do more with higher capacity pumps and derrick® hyperpool linear motion shakers that boost overall system performance.
• Load from multiple positions with a flexible mud pallet you can tailor to your jobsite’s requirements.
• Increase mixing efficiency with a stainless steel mixing hopper that extends the life of the mixing station.
FEATURES & BENEFITS
FAST SETUP. EASY TEARDOWN.
A hydraulic catwalk, foldout walkway and simple hose connections make the M1200DH quick to deploy and easy to take down—letting you spend more time getting things done.
INCREASED UPTIME
From the control panel to the framing, the M1200DH is designed to start up quickly and stay running. With button guards to help prevent accidental shutdowns, inset valves for quick maintenance and new framing for easy charge pump moving, unexpected downtime will be a thing of the past.
INDUSTRY-LEADING PERFORMANCE

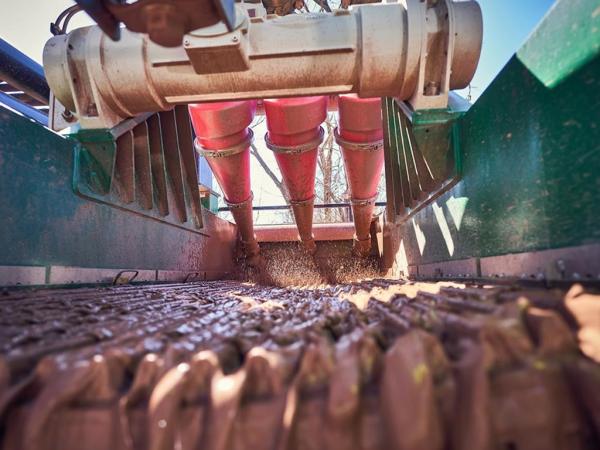

A supercharged 50-horsepower pump, Derrick® Hyperpool Linear Motion Shakers and a charge pump pick-up tube can take your performance to the next level, while industry-leading screening capacity and three centrifugal pumps increase uptime and decrease costs.
CLEANER JOBSITE
Pump drain hose exits keep the M1200DH’s cleaning system free of debris, and discharge shaker toe kicks prevent the operator from stepping through the solids discharge space.
DURABLE DESIGN
The M1200DH’s stainless steel mixing hopper can handle plenty of wear and tear—and it’s resistant to the rusting often caused by paint flaking.
WARRANTY
• Parts: 2 Years / 2,000 Hours
• Labor: 1 Year / 1,000 Hours
• Engine and Transmission: 2 Years / 2,000 Hours
• Rack and Pinion: 5 Years / 10,000 Hours
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
Specifications
- Cleaning Shaker System - 1st Cut Shaker Cleaning Capacity, max.: 1,200 gpm (4,542 L/min)
- Cleaning Shaker System - Linear Motion Shaker - Make: Derrick®
- Cleaning Shaker System - Linear Motion Shaker - Model: HyperPool™
- Cleaning Shaker System - Linear Motion Shaker - Quantity: 4
- Cleaning Shaker System - Non-Blanked Screen Size: 30.8 sq ft (2.8 sq m)
- Desanding Pump - Impeller size: 11 in (279.4 mm)
- Desanding Pump - Inlet size: 8 in (203.2 mm)
- Desanding Pump - Motor: 75 hp, 3 phase, 480v (56 kW)
- Desanding Pump - Outlet size: 6 in (152.4 mm)
- Desilting Pump - Impeller Size: 11.5 in (292.1 mm)
- Desilting Pump - Inlet Size: 8.0 in (203.2 mm)
- Desilting Pump - Motor: 75 hp, 3 phase, 480v (56 kW)
- Desilting Pump - Outlet Size: 6 in (152.4 mm)
- Dimensions - Length: 53 ft (16.2 m)
- Dimensions - Maximum height: 13.6 ft (4.11 m)
- Dimensions - Maximum width: 8.8 ft (2.68 m)
- Dimensions - Weight: 85,000 lbs (38,555 kg)
- Mixing Pump - Impeller Size: 11 in (279.4 mm)
- Mixing Pump - Inlet Size: 6 in (152.4 mm)
- Mixing Pump - Motor: 50 hp, 3 phase, 480v (37 kW)
- Mixing Pump - Outlet Size: 5 in (127 mm)
- Offload Pump - Impeller size: 11 in (279.4 mm)
- Offload Pump - Inlet size: 6 in (152.4 mm)
- Offload Pump - Motor: 50 hp, 3 phase, 480v (37 kW)
- Offload Pump - Outlet size: 5 in (127 mm)
- Power Train - Emissions compliance: T4F
- Power Train - Fuel Capacity: 300 gal (1,135 L)
- Power Train - Generator Set: Stateline
- Tanks - Intermediate Tank capacity: 2,500 gal (9,464 L)
- Tanks - Screen tank capacity: 4,000 gal (15,142 L)
- Tanks - Tank capacity, max: 9,600 gal (36,340 L)
