AMERICAN AUGERS DIRECTIONAL DRILL — DD600
The DD600’s 600,000 lbs of thrust and pullback and 100,000 ft·lbs of torque mean you can take on big jobs in tough soil conditions—but this drill is about more than raw power. With a design based on customer feedback, it also boasts state-of-the-art, industry-leading features.
• Get 600,000 lbs of thrust and pullback, up to 130 rpm rotary speeds, and 100,000 ft·lbs of torque for demanding jobs in tough conditions.
• No need for diesel exhaust fluid (DEF), lowering costs and reducing downtime.
• Designed to transport without removing the wrenches, you’ll save hours in disassembly time.
• Hydraulic catwalk with fold-down handrails and waist-high cable and hose connections allow for an easier setup.
• New open-top wrench design and dual rotation cylinders guarantee easier servicing and greater reliability.
• Redesigned, climate-controlled cabin gives operators extra comfort and a wide-angle, unobstructed view of the drill.

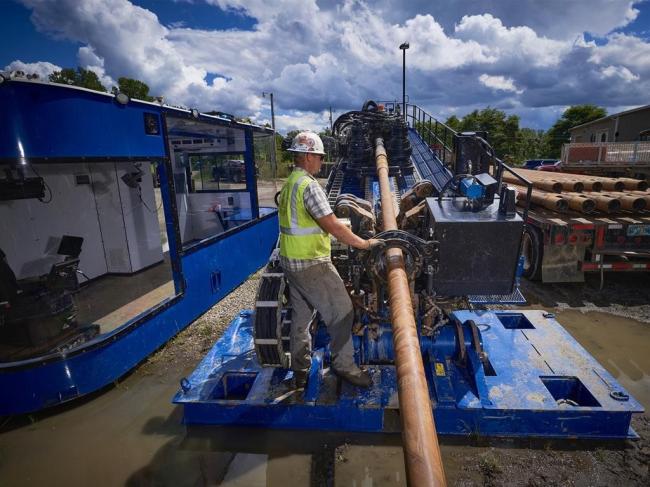

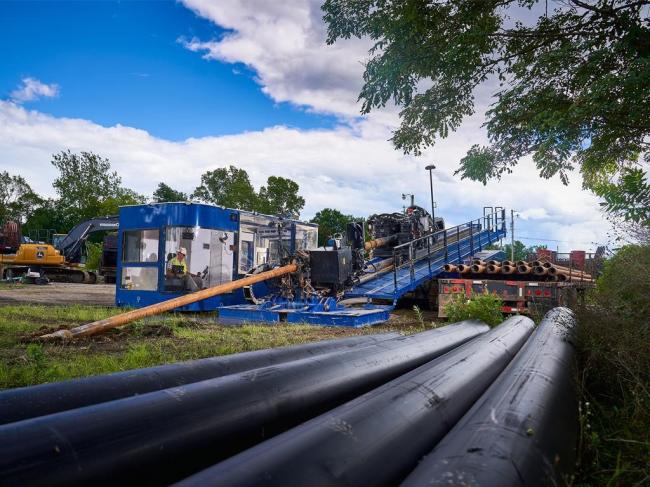

DD600 DIRECTIONAL DRILL
With all-new, state-of-the-art features, the DD600 is ready to take on any jobsite. Eliminate DEF with a new engine design, and get things done with 600,000 lbs of thrust and pullback. Combine that with an innovative open-top wrench layout and a brand-new cabin, and you have a drill that’s in a class of its own.
• Cable and hose connections are waist-high for yet another way to make setup quick and simple.
• With a weight of just 95,000 lbs—including wrenches and full fluids—it meets standard permitting, saving you time and money.
• A hydraulic catwalk allows for one-person setup, and fold-down handrails don’t have to be removed for transport.
• The front foot design offers a simple pinned retention foot that’s both strong and easy to connect and disconnect.
• Diesel exhaust fluid (DEF) isn’t required, simplifying the engine, making maintenance easier, lowering costs, and eliminating downtime.

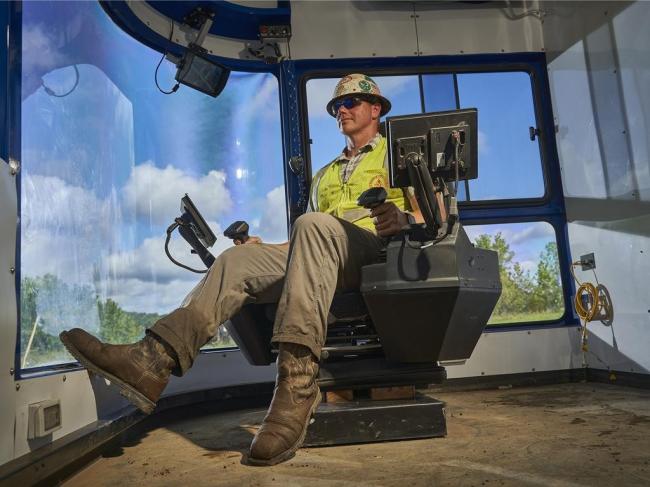

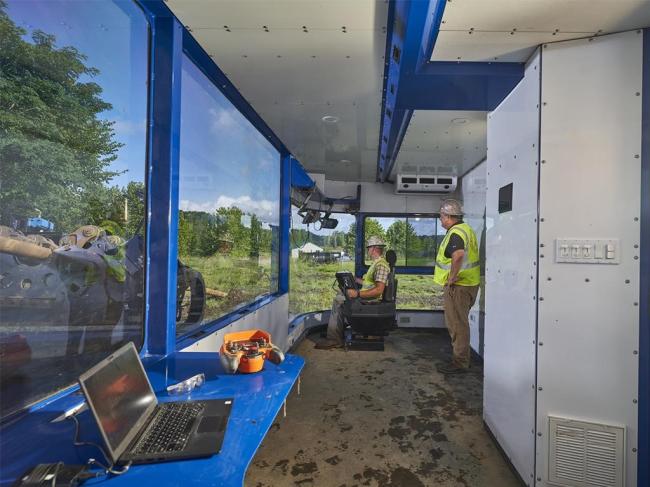

NEW CABIN DESIGN
The DD600’s expansive operator cabin is designed around ease of use and better control of the drill. Enjoy a wide 180° view of the entire jobsite while sitting in the comfort of a climate-controlled cabin. An enhanced steering location can also make auxiliary crew members even more effective.
• A new, spacious cabin gives you a wide-angle, unobstructed view of the drill.
• An improved steering location offers even better control to auxiliary crew members.
• Interior red lights allow for nighttime operation without glare, and jobsite LED lighting is included on the exterior of the cabin.
• Ducted heating and air conditioning in the cabin make things comfortable in any weather conditions, and sliding windows provide improved airflow.
REVOLUTIONARY DESIGN
The DD600 is also designed to save you time. Features like easy transportability and a brand-new, open-top wrench design with dual rotation cylinders mean added reliability and convenience that you can count on.
• Designed to transport without removing the wrenches, you’ll save hours in disassembly time every time you need to move the DD600.
• Route blow-down through the foot and into the pit, increasing comfort for both the operator and the crew.

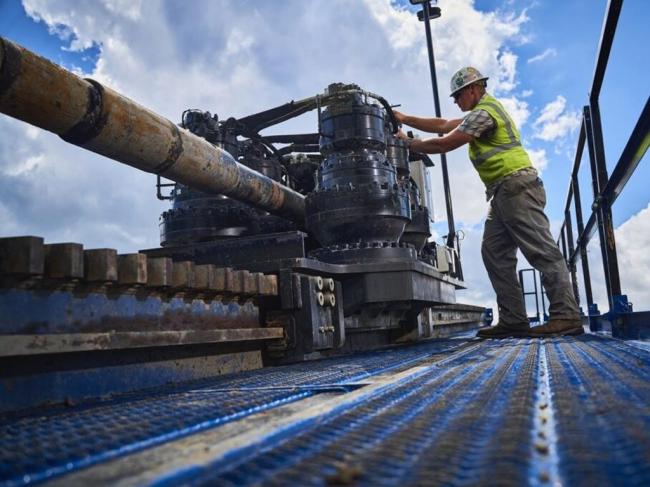

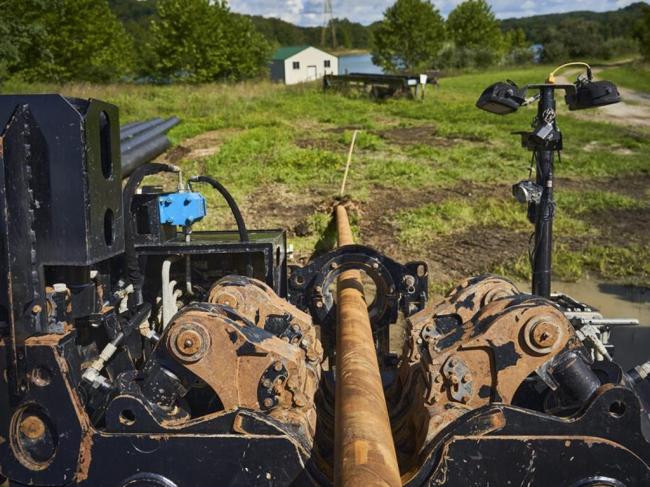

• An open-top wrench design offers better visibility and makes things easier than ever to service. Plus, floating die heads that conform to the pipe offer better grip and reduce die wear.
• Dual rotation cylinders guarantee even and higher breakout force for extra reliability.
• Patented, free-spin capability allows the DD600 to operate as a catch rig for breakout, increasing jobsite versatility.
WARRANTY
• Parts: 2 Years / 2,000 Hours
• Labor: 1 Year / 1,000 Hours
• Engine and Transmission: 2 Years / 2,000 Hours
• Rack and Pinion: 5 Years / 10,000 Hours
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
