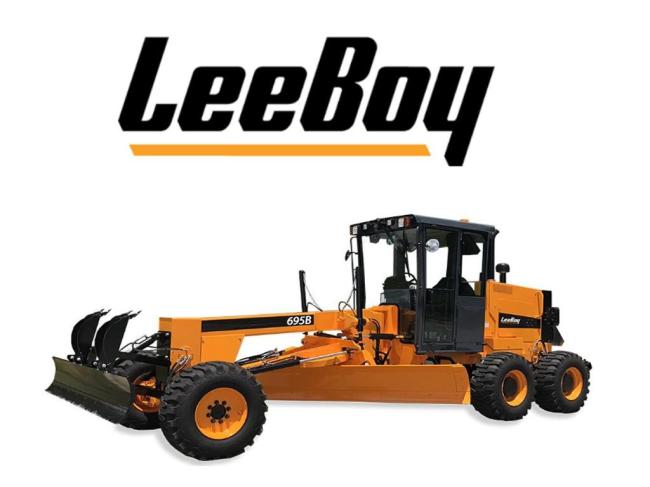

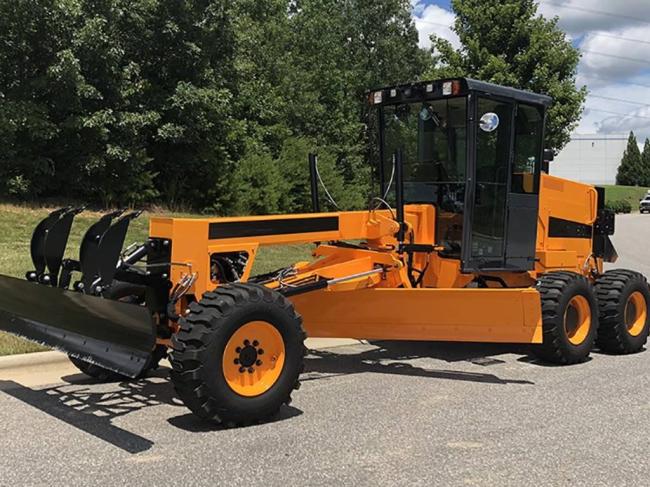

LEEBOY 695B — MOTOR GRADER

The 695B provides precise performance and ruggedness in a time-tested design. Delivering exceptional 360-degree views and heightened visibility to the cutting edge, while operating this motor grader, you will also notice profound performance marked by ergonomic controls, industry-leading hydraulic responsiveness and electronic gauge package. Featuring ten spool fully adjustable controls, the 695B can be used for various grader operations all while remaining in the comfortable pressurized, heated and cooled cab.

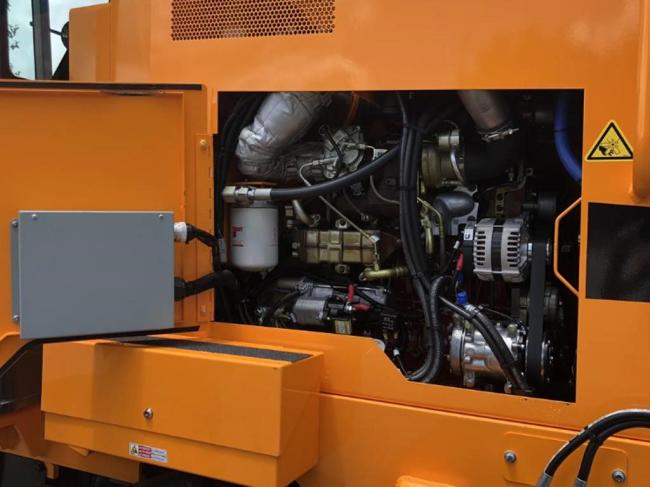

ENGINE

• Cummins Tier 4 Final diesel engine, water-cooled turbocharged

• 130 hp (97 kW) @ 2,200 RPM

• Fuel capacity: 45 gallon

• Hydraulic reservoir: 30 gallons

• Electric start

• Two 12 volt batteries, 135 amp alternator

PERFORMANCE FEATURES

• 130 hp (97 kw) Cummins Tier 4 Final Diesel Engine

• 11’ Moldboard

• Moldboard Shifts 3’ left or right

• Hydrostatic Transmission, 2-Speed Tandem Axle

• Tandem Drive

• Electronic Gauge Package

• Fail Safe Braking

• ROPS/FOPS Cab or ROPS/FOPS Canopy

• Cushioned, Fully Adjustable Suspension Seat

• Vandalism Protection Package

• Front or Rear Mounted Scarifier Optional

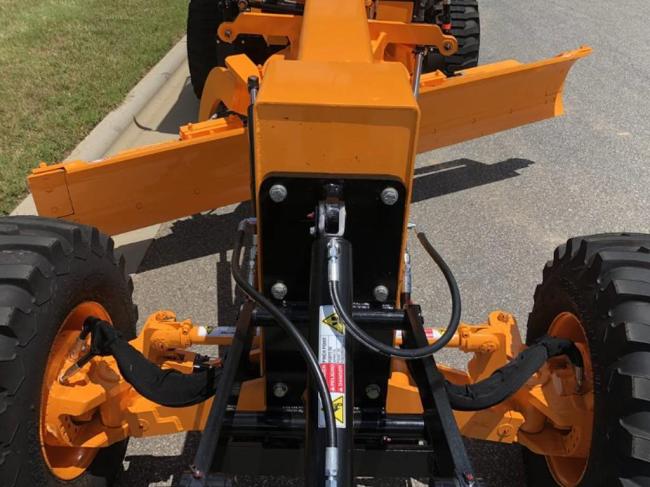

MOLDBOARD

• 11’ x 21” x 5/8”

• Side shift: 3’ left or right

• Tilt: 30 degrees

• Ground clearance: 13”

• Penetration: 1’ 2”

• Rotation: 64 degrees

DRAWBAR

Drawbar: 4” x 6” x 0.5” tube

ARTICULATED FRAME

Steel channel and rectangle tubing, articulated 24⁰ in each direction

TURNING RADIUS

22’ to center of outside front tire with frame articulated

TRACTION DRIVE

• Hydrostatic drive, 2-speed tandem axle

• Working range: 0 to 10 mp

• Travel range: 0 to 20 mph

• Tandems oscillate a minimum of +/- 15 degrees

TIRES

• Six 15 x 19.5, TL, G-2

• 8-ply pneumatic tires

BRAKES

• Foot operated primary and service brakes

• Hydrostatic traction drive system secondary brakes

• Spring apply, hydraulic release parking brakes automatically apply when ignition is in “off” position or if system pressure is lost

REAR HITCH

15 ton, heavy-duty, forged rear pintle hitch

OPERATOR STATION

• Fully cushioned, fully adjustable suspension seat

• Adjustable operator’s pedestal

• Choice of ROPS/FOPS cab or ROPS/FOPS canopy

• Cab includes heat, front wiper, front washer and defroster

• Two external convex 7.5” diameter side mirrors and single rearview mirror

• Color display with digital readouts: coolant and hydraulic oil temperature, fuel level, volt meter, tachometer, hour meter, DEF level, percent engine load, engine diagnostics

OPERATOR’S CONTROLS

• Industry-standard control levers mounted to an adjustable operator’s pedestal

• Left and right-hand moldboard lift, front attachment lift, moldboard side shift, circle side shift, moldboard tilt, circle turn, articulation, front wheel lean and rear-mount scarifier control

LIGHTING

• Two rear LED working lights

• Two front LED moldboard lights

• Two front headlights, signals, flashers

• Two rear LED tail lights, signals

• Amber LED strobe beacon

ADDITIONAL STANDARD EQUIPMENT

• Back-up alarm

• High temperature, low oil pressure shut down

• Horn

• Slow-moving vehicle sign

• 12V DC power outlet

• Mounting provisions for Topcon control system sensors

OPTIONAL EQUIPMENT

• All-wheel drive

• Cold weather engine package

• Rear-mounted scarifier, includes 9 ripper shanks with teeth

• 8’ x 16” front blade, inlcudes blade float control

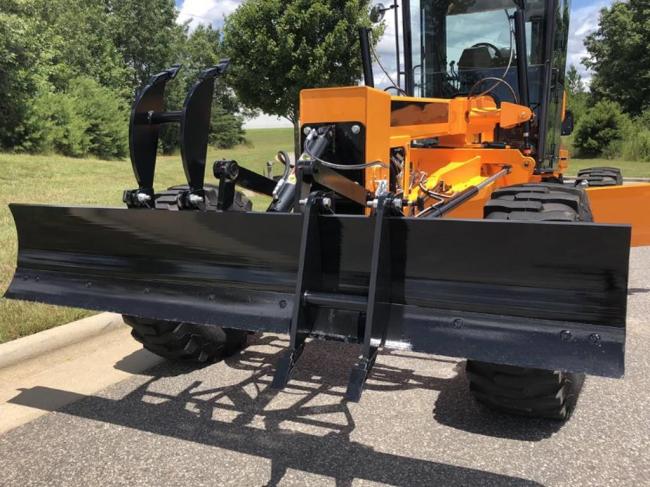

• Front blade mounted flip-down 4 shank scarifier

• 8’ X 30” front dozer blade, includes blade float control

• Front-mounted V-bar scarifier, includes float control

• 10’ moldboard

• 12’ moldboard

• Foot throttle

• F-N-R pedal

• Dead engine steering

• Back-up/reverse camera with in cab color display

• Circle side shift

• Topcon ready options

Similar models may be shown in addition to the featured model. Equipment may be shown with options.

Specifications are subject to change without prior notice.
