Leeboy 685D

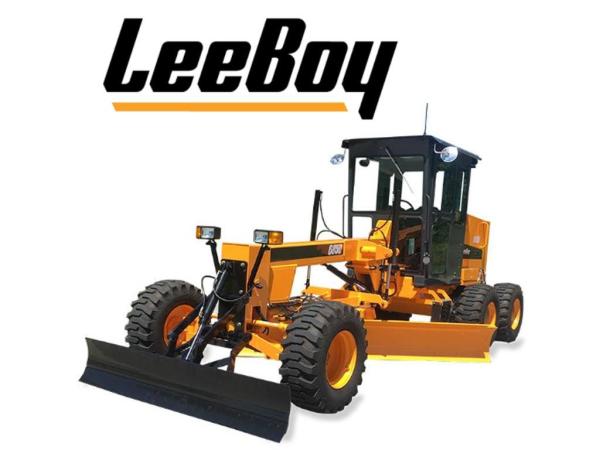

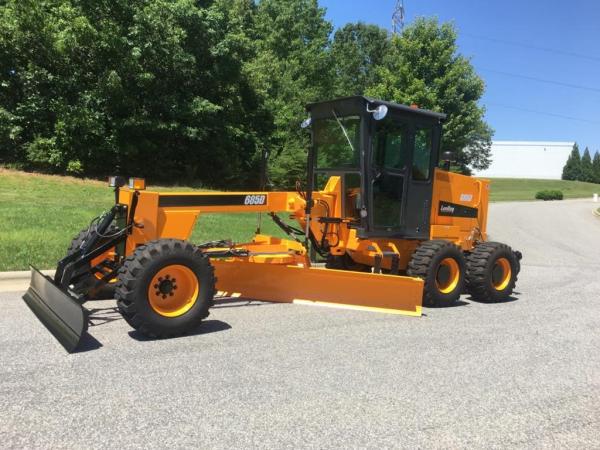

LEEBOY 685D — MOTOR GRADER

Designed with the functionality of a large motor grader, the more compact 685D can be used in many versatile and specialized applications including spreading base materials, ditch/shoulder projects, fine grading, medium cutting or even snow removal. The noticeable power provided by a Cummins engine merged with smooth transition and controlled drive, makes this motor grader an all-around must have on any job site. Whether you decide a cab or canopy suits your needs, you can rest assured your visibility will remain unobstructed.

PERFORMANCE FEATURES

• 130 hp (97 kw) Cummins Tier 4 Final Diesel Engine

• 11’ Moldboard

• Moldboard Shifts 3’ left or right

• Hydrostatic Transmission, 2-Speed Tandem Axle

• Tandem Drive

• Electronic Gauge Package

• Fail Safe Braking

• ROPS/FOPS Cab or ROPS/FOPS Canopy

• Cushioned, Fully Adjustable Suspension Seat

• Vandalism Protection Package

• Front or Rear Mounted Scarifier Optional

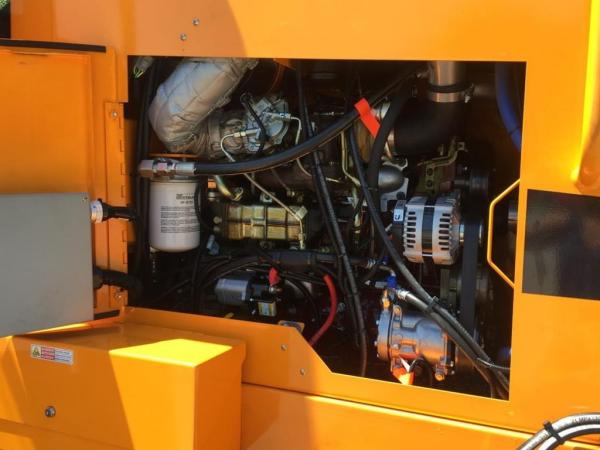

ENGINE

• Cummins Tier 4 Final diesel engine, water-cooled turbocharged

• 130 hp (97 kW) @ 2,200 RPM

• Fuel capacity: 45 gallon

• Hydraulic reservoir: 30 gallons

• Electric start

• Two 12 volt batteries, 135 amp alternator

MOLDBOARD

• 11’ x 21” x 5/8”

• Side shift: 3’ left or right

• Tilt: 30 degrees

• Ground clearance: 13”

• Penetration: 1’ 2”

• Rotation: 64 degrees

DRAWBAR

Drawbar: 4” x 6” x 0.5” tube

ARTICULATED FRAME

Steel channel and rectangle tubing, articulated 24⁰ in each direction

TURNING RADIUS

22’ to center of outside front tire with frame articulated

TRACTION DRIVE

• Hydrostatic drive, 2-speed tandem axle

• Working range: 0 to 10 mp

• Travel range: 0 to 20 mph

• Tandems oscillate a minimum of +/- 15 degrees

TIRES

• Six 15 x 19.5, TL, G-2

• 8-ply pneumatic tires

BRAKES

• Foot operated primary and service brakes

• Hydrostatic traction drive system secondary brakes

• Spring apply, hydraulic release parking brakes automatically apply when ignition is in “off” position or if system pressure is lost

REAR HITCH

15 ton, heavy-duty, forged rear pintle hitch

OPERATOR STATION

• Fully cushioned, fully adjustable suspension seat

• Adjustable operator’s pedestal

• Choice of ROPS/FOPS cab or ROPS/FOPS canopy

• Cab includes heat, front wiper, front washer and defroster

• Two external convex 7.5” diameter side mirrors and single rearview mirror

• Color display with digital readouts: coolant and hydraulic oil temperature, fuel level, volt meter, tachometer, hour meter, DEF level, percent engine load, engine diagnostics

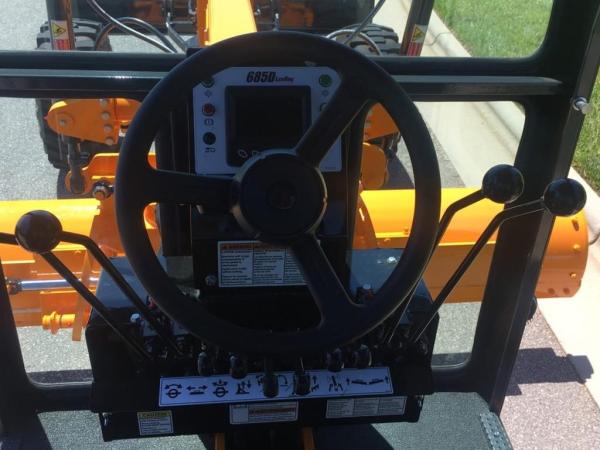

OPERATOR’S CONTROLS

• Industry-standard control levers mounted to an adjustable operator’s pedestal

• Left and right-hand moldboard lift, front attachment lift, moldboard side shift, circle side shift, moldboard tilt, circle turn, articulation, front wheel lean and rear-mount scarifier control

LIGHTING

• Two rear LED working lights

• Two front LED moldboard lights

• Two front headlights, signals, flashers

• Two rear LED tail lights, signals

• Amber LED strobe beacon

ADDITIONAL STANDARD EQUIPMENT

• Back-up alarm

• High temperature, low oil pressure shut down

• Horn

• Slow-moving vehicle sign

• 12V DC power outlet

• Mounting provisions for Topcon control system sensors

OPTIONAL EQUIPMENT

• All-wheel drive

• Air conditioning (cab only)

• Front-mounted V-bar scarifier, includes float control

• Rear-mounted scarifier, 9 ripper shanks w/ teeth

• 8’ x 16” front blade, includes blade float control

• Front blade mounted flip-down 4 shank scarifier

• 8’ x 30” front dozer blade, includes blade float control

• Dead engine steering

• Cold weather engine package

• Rear wiper and washer (cab only)

• 10’ moldboard

• 12’ moldboard

• Circle side shift

• Radio/Bluetooth speakers with remote

• Back-up/reverse camera with color display

• Topcon ready options

Similar models may be shown in addition to the featured model. Equipment may be shown with options.

Specifications are subject to change without prior notice.
