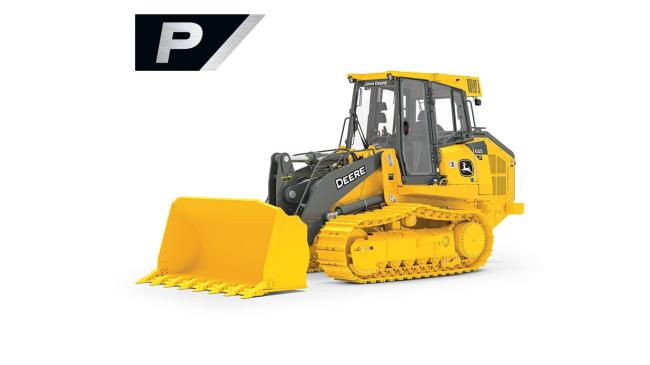

John Deere 655 P-Tier Crawler Loader
Crawler Loaders
How can we help?
443-460-1070
Specifications
DIMENSIONS - Bucket pin height, mm (ft/in): |
3710 (12 ft 2 in) |
DIMENSIONS - Digging depth, mm (inches): |
152 (6) |
DIMENSIONS - Ground clearance, mm (inches): |
395 (15.6) |
DIMENSIONS - Max. height, mm (ft/in): |
3120 (10 ft 3 in) |
DIMENSIONS - Overall length, mm (ft/in): |
6735 (22 ft 1 in) |
DIMENSIONS - Shovel 1 dump height 45° max, mm (ft/in): |
2665 (8 ft 9 in) |
DIMENSIONS - Shovel 1 width, mm (ft/in): |
2470 (8 ft 1 in) |
DIMENSIONS - Track gauge - standard, mm (ft/in): |
1740 (5 ft 9 in) |
DIMENSIONS - Track length on ground, mm (inches): |
2414 (95) |
DRIVELINE - Displacement, ltr (Inches³): |
6.8 (414) |
DRIVELINE - Engine Manufacturer: |
John Deere |
DRIVELINE - Engine Model: |
PowerTech PVS 6068 |
DRIVELINE - Engine Output - Net, kW (hp): |
116 (155) |
DRIVELINE - Ground Contact Area, cm² (Inches²): |
24622 (3816) |
DRIVELINE - Rated Speed, rpm: |
1700 |
DRIVELINE - Track rollers per side - std: |
6 |
DRIVELINE - Track shoe pitch, mm (inches): |
190 (7.5) |
DRIVELINE - Track shoe width, mm (inches): |
510 (20) |
DRIVELINE - Track shoes per side - std: |
38 |
DRIVELINE - Transmission type: |
Hydrostatic |
Achieve comfort and increased productivity in a spacious cab
Front cab view in a 655 P-Tier
Operator’s air suspension seat and operation station
Overview
Looking for a way to increase productivity by keeping operators comfortable? All P-Tier cabs are comfortable, quiet, and more spacious than previous models. Operators will appreciate fatigue-beating ergonomics that include extensive leg room, wide doorways, and user-friendly pull-type latches to ease entry and exit from both sides of the machine.
Benefits
- Quietly go about your business – Viscous cab mounts, rear acoustical glass, and extensive insulation effectively isolate operators from vibration and noise.
- Calm, cool, and collected – Air conditioning is standard. Numerous directional vents keep the glass clear and interior comfortable, while the pressurized cab keeps outside contaminants to a minimum.
- Sit back and relax – Standard high-back air-suspension seat adjusts multiple ways for all day comfort and support. A deluxe heated and leather-bolstered seat is optional.
- Simple conveniences – A 12-volt power port, tinted windows, and AM/FM/Weather-Band (WB) radio and clock make it easy for operators to settle in and stay focused on the task at hand.
Power management and infinite speed control
John Deere 755 P-Tier Crawler Loader
Overview
Crawler loaders equipped with a hydrostatic (HST) drivetrain keep operation simple and provide the confidence to conquer any task. The dual-path HST transmission delivers smooth moves, infinite speed control, and live power turns that push a full load without spilling material. For unmatched durability and maneuverability, each track is individually powered with its own pump and motor. Multiple operator preference settings are available, giving operators the flexibility to tailor machine operating characteristics.
Benefits
- Easy control – Low-effort controls command the full-featured HST drivetrain, providing smooth, predictable responses at all times, across all conditions.
- Adjustable Transmission and Hydraulic Settings – Allows operators to customize operating characteristics and response for superb, one-of-a-kind control.
- Constant power to both tracks - Allows operators to carry heavy loads through turns and counter-rotate both tracks while in gear and in neutral.
- Peak performance – Simply set maximum desired ground speed, and the power-management system automatically maintains peak engine rpm and power efficiency without stalling or shifting.
Eliminate downtime with increased serviceability
Tilt-out grille
Sealed and lubricated undercarriage
Innovative Quad-Cool™ Cooling System
Onboard diagnostics monitor
Overview
Uptime on a jobsite isn’t demanded, it’s expected. Ensuring you have reliable equipment, and the ability to conveniently perform daily service checks and maintenance is key. Easy to access service doors, onboard diagnostics, automatic filter cleaning, and an innovative cooling system set John Deere crawler loaders apart from the competition.
Benefits
- Built to last – Heavy-duty undercarriage is sealed and lubricated for maximum wear resistance.
- Diagnostic messaging – Easy-to-navigate liquid-crystal display (LCD) monitor displays diagnostic messages if problems occur and offers possible solutions to get back up and running quickly.
- Free of debris – Swing-out side shields and tilt-out grille enable access to both sides of the coolers for low effort debris removal.
- Quad-Cool™ system – Quad-Cool™ places the radiator, air-conditioner condenser, intercooler, and hydraulic, transmission, and axle coolers in a boxed configuration that is isolated from engine heat.
- Easy to read – Hydrostatic and hydraulic pressures can be read via the in-cab monitor, making it easy for operators and technicians to check important system pressures.
Maximum fuel economy without loss of performance
6.8L FT4 engine in a 755 P-Tier Crawler Loader
Overview
Proven technology and a building block approach based on a solid foundation of reliable John Deere engines has led to the integration of Final Tier 4 (FT4) engines in P-Tier crawler loaders. The PowerTech™ PVS 6.8L engine includes familiar components such as electronic injectors, 4-valve cylinder head, turbocharger, cooled exhaust gas recirculation (EGR), diesel oxidation catalyst (DOC), and diesel particulate filter (DPF). The engine is fully integrated into the design of crawler loaders, allowing for optimized performance and maintenance.
Benefits
- More power – With the change to FT4, horsepower has increased to 155hp on the 655 P-Tier and 194hp on the 755 P-Tier.
- Eco mode – Standard Eco mode automatically adjusts engine power and transmission settings based on load while maintaining ground speed, optimizing fuel economy while maintaining performance.
- Fuel efficiency – Auto-idle reduces engine speed when the machine is not moving and no functions are activated, and auto shutdown automatically turns the engine off after an operator-determined period of inactivity.
Increase functionality of the loader with single- or three-lever controls
Single-lever joystick control
Three-lever hydraulic controls
V-pattern transmission lever
Steering pedals
Overview
State-of-the-art controls put a crawler loader operator in complete command of a whole arsenal of highly productive hydrostatic (HST) advantages. HST steering eliminates steering clutches and brakes and enables single-lever steering, speed, direction control, and counterrotation. With different options to choose from for both hydraulic and transmission controls, operators can select the layout that will best fit their style.
Benefits
- HST Advantages - Full power turns and infinitely variable track speeds provide unlimited maneuverability and optimum control.
- Choice of controls – Single-lever joystick or two- or three-lever hydraulic controls, Joystick F-N-R, or V-pattern transmission lever with steering pedals
- Smooth operator – Smooth, predictable-response controls virtually eliminate jerky and abrupt movements.
- Push-button throttle – Control the throttle in full or incremental adjustments using buttons on the sealed switch module (SSM).
