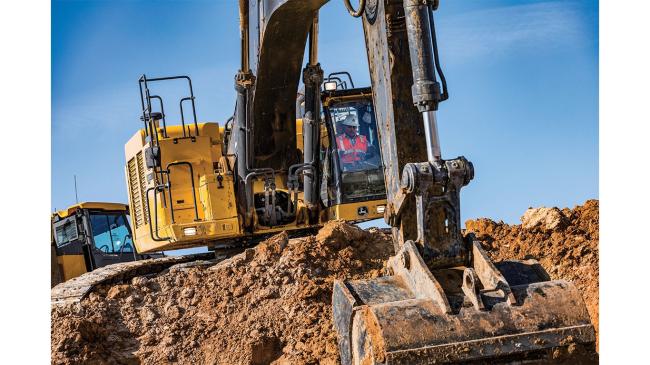

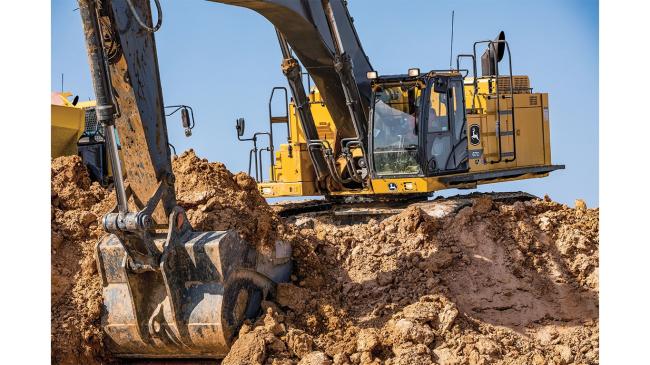

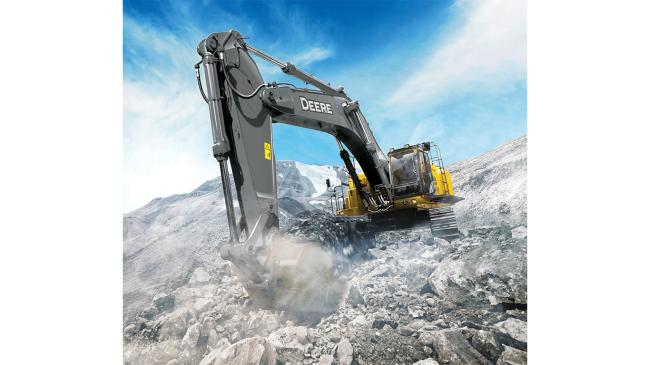

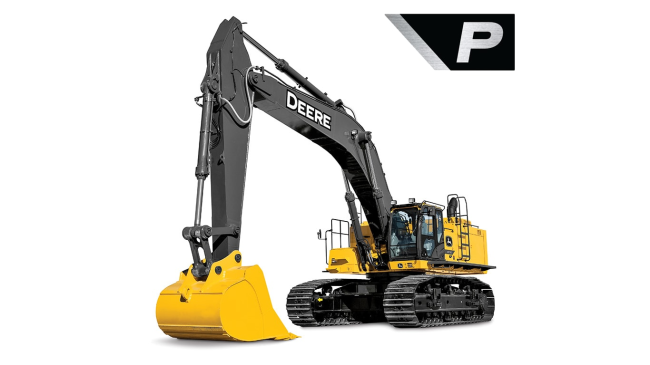

John Deere 670 P-Tier Large Excavator
Large Excavators
How can we help?
443-460-1070
Specifications
DIMENSIONS - Dig Height - Mono Boom, mm (ft/in): |
12240 (40 ft 2 in) |
DIMENSIONS - Digging Reach - Mono Boom, mm (ft/in): |
13850 (45 ft 5 in) |
DIMENSIONS - Dump Height - Mono Boom, mm (ft/in): |
8330 (27 ft 4 in) |
DIMENSIONS - Ground Clearance, mm (inches): |
860 (34) |
DIMENSIONS - Ground Level Reach - Mono Boom, mm (ft/in): |
13610 (44 ft 8 in) |
DIMENSIONS - Overall Undercarriage Length, mm (ft/in): |
5840 (19 ft 2 in) |
DIMENSIONS - Overall Undercarriage Width, mm (ft/in): |
4020 (13 ft 2 in) |
DIMENSIONS - Tailswing Radius, mm (ft/in): |
3910 (12 ft 10 in) |
DIMENSIONS - Track Length On Ground, mm (ft/in): |
4590 (15 ft 1 in) |
DIMENSIONS - Transport Height - Maximum, mm (ft/in): |
4980 (16 ft 4 in) |
DIMENSIONS - Transport Length Mono Boom, mm (ft/in): |
13400 (44 ft ) |
DRIVELINE - Displacement, ltr (Inches³): |
15.7 (958) |
DRIVELINE - Emission Rating: |
Tier 4 / Stage IV |
DRIVELINE - Engine Manufacturer: |
Isuzu |
DRIVELINE - Engine Output - Net, kW (hp): |
345 (463) |
DRIVELINE - Number Of Carrier Rollers - Each Side: |
3 |
DRIVELINE - Number Of Cylinders: |
6 |
DRIVELINE - Number Of Track Rollers - Each Side: |
8 |
DRIVELINE - Rated speed, rpm: |
1800 |
DRIVELINE - Track Shoe Width, mm (inches): |
900 (36) |
Work confidently via standard cameras and lighting
Right, rear, and left cameras with additional light-emitting diode (LED) surround lighting
Standard Right Rear and Left Camera system with additional LED surround lighting work together to provide the operator enhanced 270 degree visibility around the machine. All integrated into the main monitor.
- Work confidently with enhanced visibility even in low light conditions
- Powerful LEDs cast a pool of light surrounding 270 degrees of the sides and rear of the machine. Cameras display surroundings to the operator in the main monitor
- LED front work lights and rear camera are still standard equipment
Final Tier 4 Isuzu® Engine
Final Tier 4 Isuzu® Engine
Our final tier 4 Isuzu engine reduces NOx by injecting diesel exhaust fluid (DEF) into the exhaust stream where then decomposes into ammonia. Operators will no longer have to rely on regenerations, or a diesel particulate filter (DPF). Efficient combustion allows Isuzu engines to burn particulate matter in cylinder during combustion.
- Cooled exhaust gas recirculation reduces Nitrogen Oxide (NOx) Emissions and minimizes fuel consumption.
- Variable Geometry Turbocharger.
- Diesel Oxidation Catalyst (DOC) which reacts with exhaust gases to reduce carbon monoxide and hydrocarbons.
- A DEF level gauge that changes colors to indicate DEF level added to monitor.
With monitoring and on the road technology, your equipment will run smoothly and efficiently.
DEF level gauge
Operator’s station
Operator’s station
Now it’s easier than ever for your operators to “dial things up.” No longer will they have to adjust to the cramped and frustrating area of their cab. Operators are sure to appreciate the quiet and spacious cab, unsurpassed all-around visibility, and numerous other amenities that provide what they need to do their best work.
- Sculpted and heated air-suspension high-back seat with 317.5-mm (12.5-in.) of travel slides with or independent of the joystick console.
- Multi-language liquid-crystal display (LCD) monitor, and rotary dial provide intuitive access to a wealth of information and functions.
- Wide expanse of front, side, and overhead glass and mirrors, visibility to the sides and rear is virtually unobstructed.
- Automatic, high-velocity, bi-level climate-control system with automotive-style adjustable louvers helps keep the glass clear and the cab comfortable.
- Standard boom/frame lights and cab/boom-mounted options provide illumination to extend your workday beyond daytime hours.
Enjoy the ease, comfort, and efficiency of John Deere’s new operator’s station.
