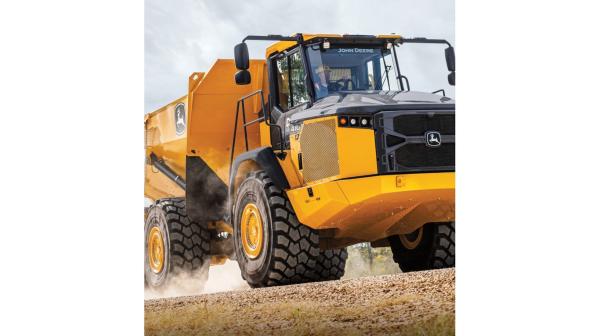

John Deere 410 P-Tier Articulated Dump Truck
| Make | John Deere |
| Model | 410 P-Tier |
| Type | Articulated Dump Trucks |
How can we help?
Description
- Net Power: 329 kW (441 hp) at 1,700 rpm
- Rated Payload: 37 266 kg (82,157 lb.)
- Heaped Capacity: 22.9 m3 (30.0 cu. yd.)
Models
Improve Operator Awareness with Advanced Vision System
460 P-Tier with AVS camera on mirror bow
Overview
For improved operator experience and situational awareness, John Deere Articulated Dump Trucks come with varying levels of vision systems and object detection to increase visibility and situational awareness from the operator’s seat.
Rear Camera
The rear-view camera is mounted at the rear of the truck and displayed through the 8-in. center mounted dedicated machine display. Rear view cameras improve operator awareness behind the machine and are mandatory for some customers. The rear-view camera is available as a factory option or can be added later as a field kit.
Rear Camera on an ADT
Advanced Vision System
The Advanced Vision System adds additional cameras to enhance operator situational awareness. The additional cameras provide a larger field of view for jobsite surroundings and different viewing options to. Advanced Vision offers customers customized approach for each jobsite. Updated articulation sensors provide dynamic panning capabilities. This allows the cameras to automatically pan when in reverse to maximize visibility on the jobsite.
Advanced Vision System cab view 460 P-Tier
AVS Components:
- Right & Left Mirror Bow Camera
- Front Grille Camera
- Rear Camera
- Rear/Front Display
- Left & Right Display
- Includes Powered Mirrors
Updated rear lighting
Updated Position Rear Lights
Previous E-II and P-Tier model rear LED lights
New P-Tier updated rear LED lights
AVS monitor with updated rear lights
Improved Fuel Economy

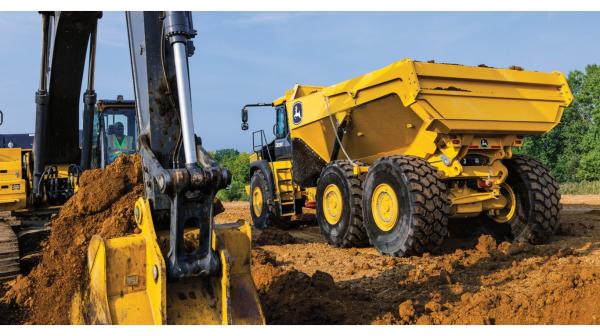

460 P-Tier transporting material
Overview
Reduced weight combined with 3 configurable drive modes and the new JD14 engine the 410 P and 460 P deliver improved fuel economy over the previous models
- Up to 7 percent* fuel savings compared to E-Series, regardless of drive mode
- Eco mode delivers up to 12 percent fuel savings compared to E-Series normal mode
- When conditions allow, eco drive mode helps reduce fuel consumption by smoothing throttle input, reducing maximum rpm, and optimizing transmission response for those conditions
Specifications
- DIMENSIONS - Length - Overall, mm (ft/in): 10640 (34 ft 11 in)
- DRIVELINE - Differential Lock: F: 100 / R: 100
- DRIVELINE - Displacement, ltr (Inches³): 13.6 (830)
- DRIVELINE - Engine Manufacturer: John Deere
- DRIVELINE - Engine Model: JD14
- DRIVELINE - Engine Output - Net, kW (hp): 341 (457)
- DRIVELINE - Final Drive: Planetary
- DRIVELINE - Front Suspension: Nitrogen/Oil-Filled Struts
- DRIVELINE - Front Suspension - Type: A-Frame
- DRIVELINE - Parking Brake - Type: Disc
- DRIVELINE - Rated Speed, rpm: 1700
- DRIVELINE - Rear Suspension: Rubber Suspension Blocks
- DRIVELINE - Rear Suspension - Type: Pivoting Walking Beam
- DRIVELINE - Retarder - Type: Transmission
- DRIVELINE - Secondary Steering Type: Ground Driven Pump
- DRIVELINE - Service Brake - Actuation: Hydraulic
- DRIVELINE - Steering Type: Articulated
- DRIVELINE - Tire size - Standard: 29.5 R25
- DRIVELINE - Transmission Type: Countershaft
- TELEMATICS - Telematics Available: Yes
