JESCO

Rosco NB25

Make	Rosco
Model	NB25
Type	Brooms

How can we help?

Description

ROSCO — NB25 — BROOM

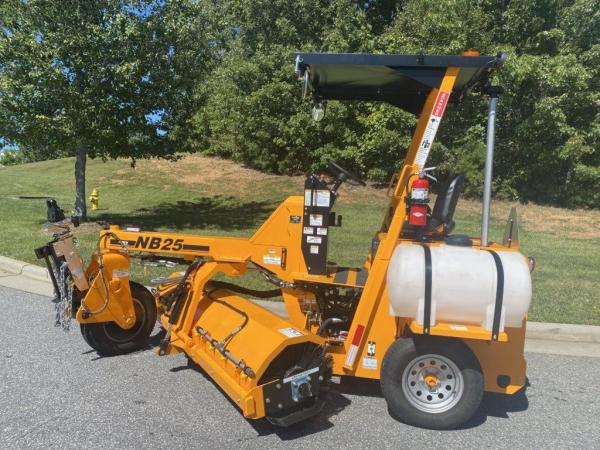

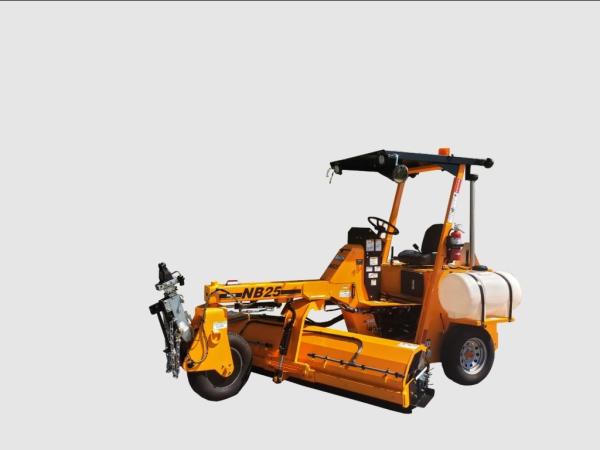

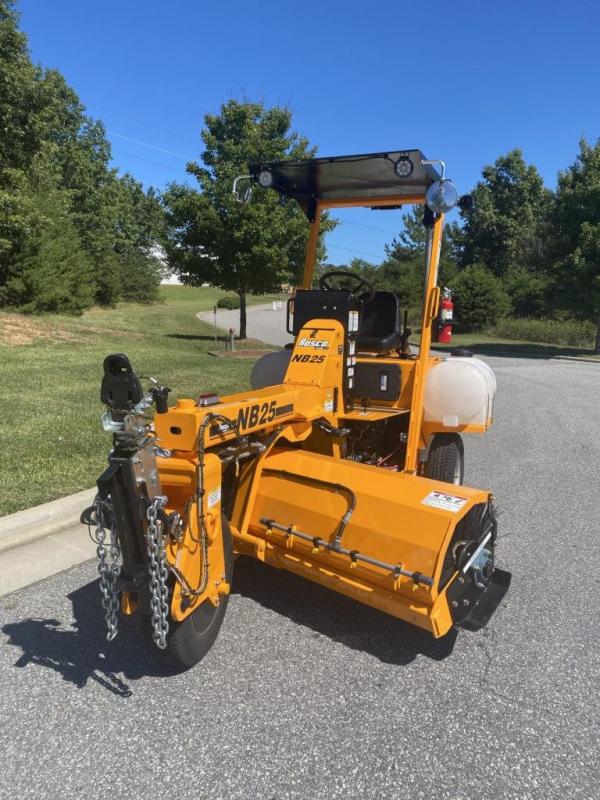

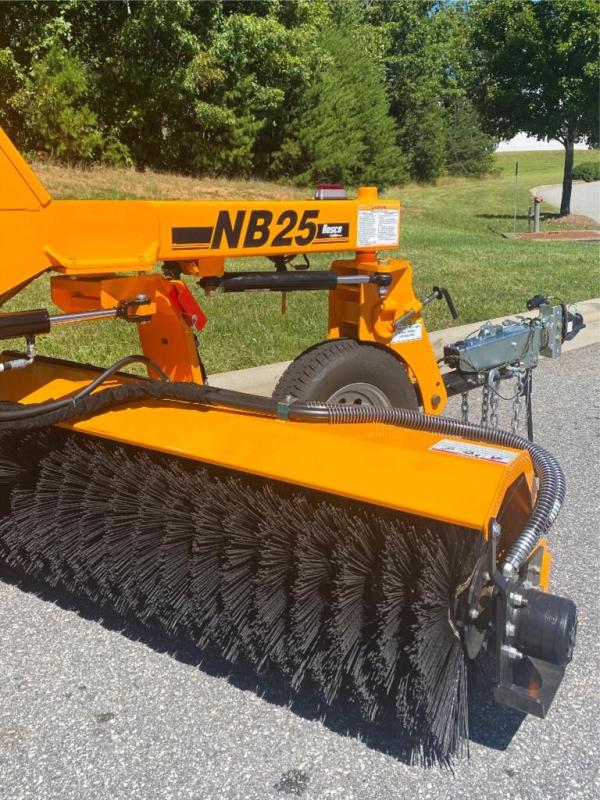

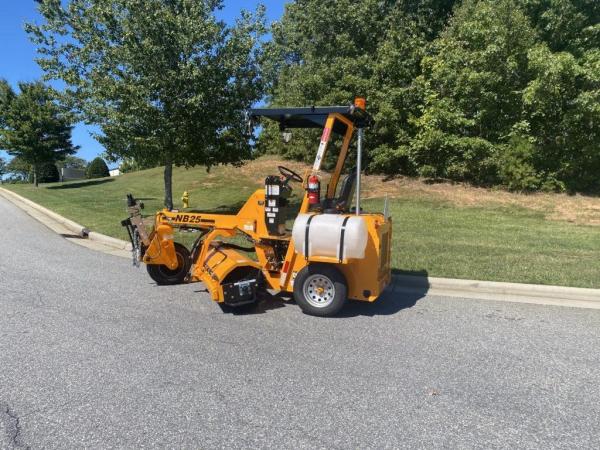

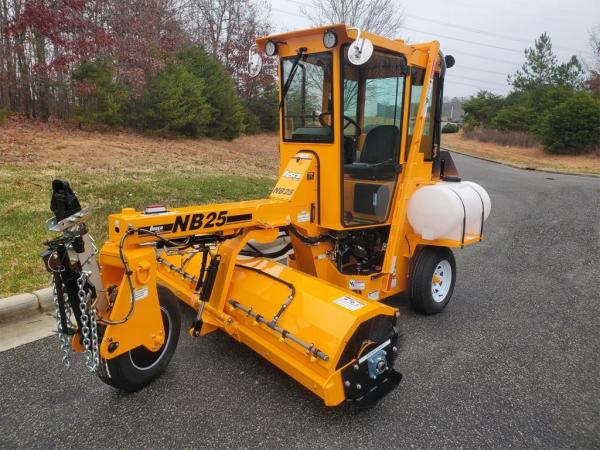

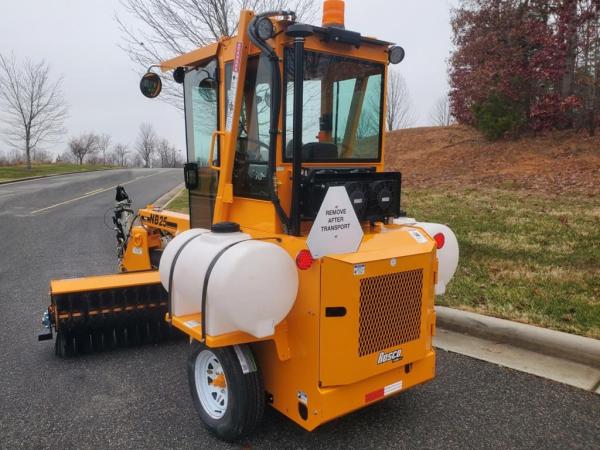

The NB25 is LeeBoy’s 3 Wheeled Self-Propelled Sweeper. This broom is Designed with the Paving Professional in Mind® who is in need of a reliable and quality built 3 wheel sweeper. The frame is heavy duty, operator area is ergonomically friendly with optional climate controlled cab and the machine is easy to tow, if desired. The NB25 is perfect for the rental industry or general application sweeping for any surface with its heavy duty brush core.

ADDITIONAL STANDARD EQUIPMENT:

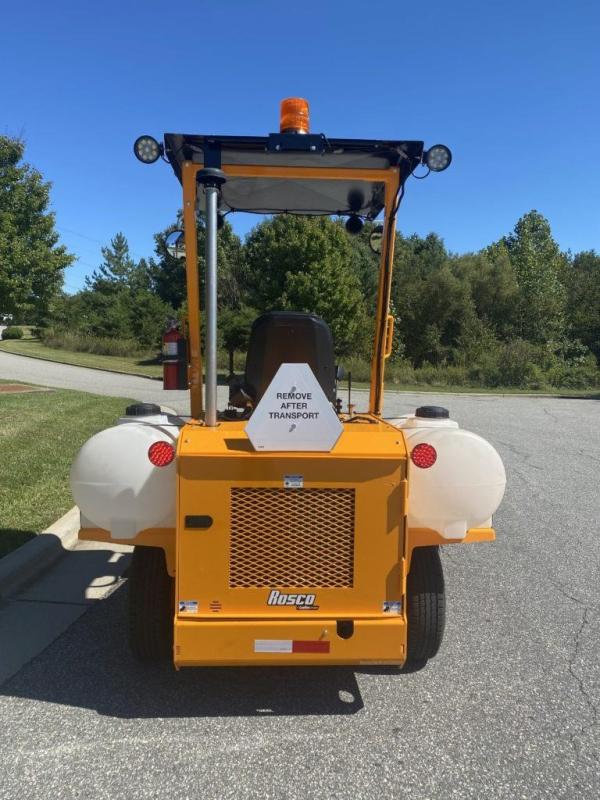

- Brush watering system with (2) 35 gallon tanks

- Padded seat with retractable seat belt

- Safety rear view mirrors

- LED stop, tail light

- Amber LED strobe light

- Horn

- Back-up alarm

- Slow moving vehicle sign

- Vandalism package

- Cup holder

- Manual box

OPTIONAL EQUIPMENT:

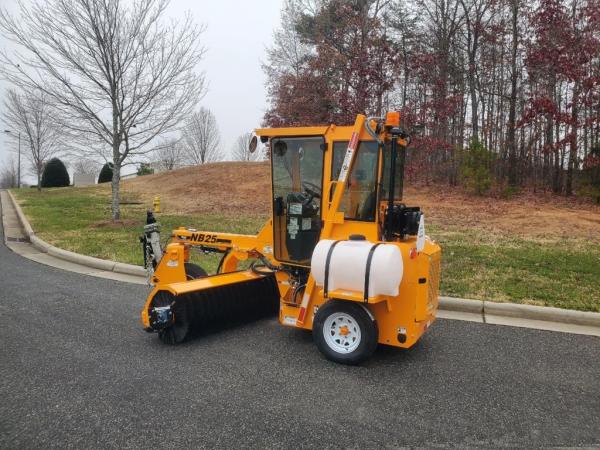

- Fully enclosed cab, with air conditioning and heater/defroster

- Pop-open side window

- Front windshield wiper

- Dome light

- 2-speed operator fan

- Combination poly/steel wafers (in lieu of poly wafers)

- Forward/reverse brush rotation

- Front windshied washer

- Fire extinguisher

- Hydraulic oil cooler and fan (Canopy only, standard on Cab)

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.

Specifications

DIMENSIONS - Ground Clearance: 7”
DIMENSIONS - Height: 8’ 1” Beacon flipped down, shipping/8’9” Beacon flipped up, operating
DIMENSIONS - Length: 15"1"w/ Trailer hitch down|13'w/ Trailer hitch up|12"2"w/o Tow package
DIMENSIONS - Total weight: 3050 lbs w/o water (Canopy)/3175 lbs w/o water (Cab)/3650 lbs w/ water (Canopy)/3775 lbs w/ water (Cab)
DIMENSIONS - Track width: 4’ 3”
DIMENSIONS - Turning Circle: 6’ 6” inside rear wheel
DIMENSIONS - Turning radius: 10’ 2” center front wheel
DIMENSIONS - Wheelbase: 8’ 5”
DIMENSIONS - Width: 9’ Brush centered/7’7” Brush fully rotated

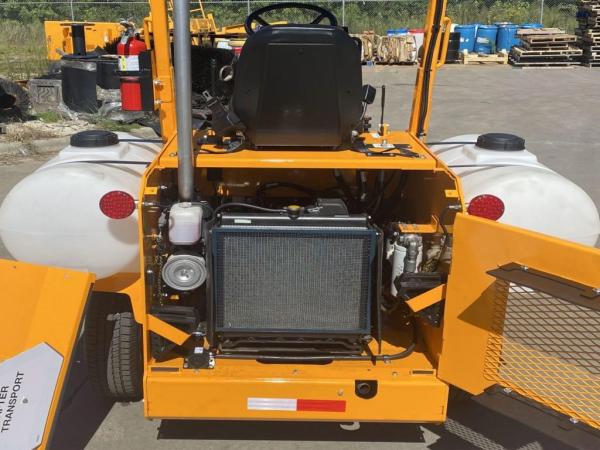

ENGINE - Type: 25 hp max @ 2, 300 rpm, Kubota V1505-E4B (Canopy)
ropstype: Enclosed
