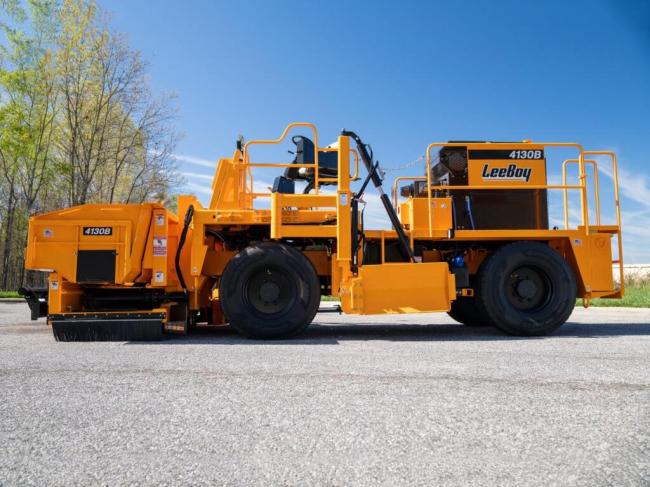

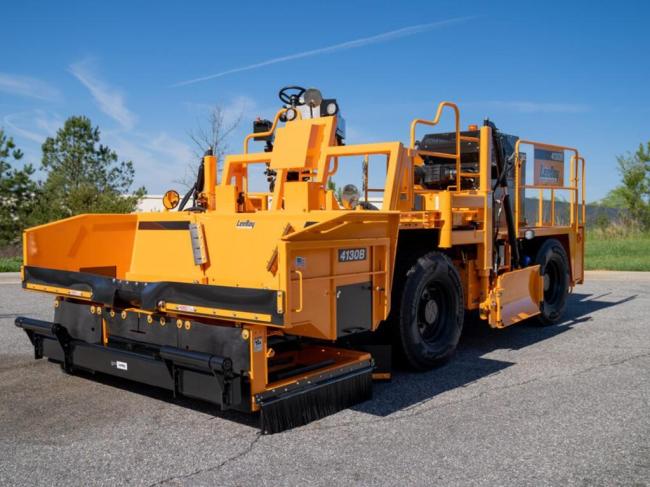

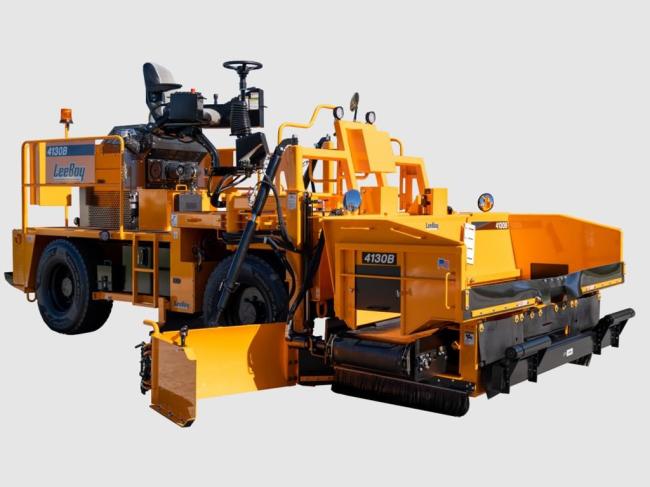

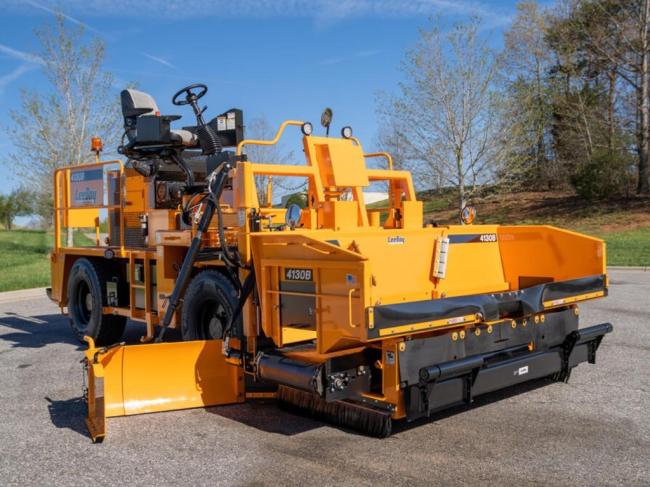

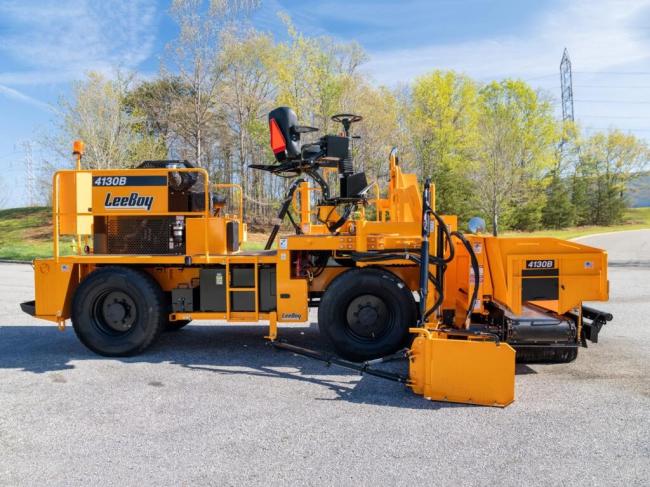

LEEBOY 4130B — ROAD WIDENER

The 4130B road widener is a versatile machine that meets your road widening needs. The narrow width design allows for shipping without a permit while shiftable conveyor and foldable hopper wings allow precise placement of material to either side of the machine. Operator console easily shifts from side-to-side and allows a clear view into the front hopper and of the material flow to the strike-off. A vertical lifting hopper improves trailer loading angle. Extendable push rollers insure a variety of trucks can be used to feed the hopper.

PERFORMANCE FEATURES

• 130 hp Cummings Tier 4 Final Engine

• Width of Spread: up to 8’ (2.44 m)

• Heavy Duty Contoured Strike-Off blades

• 8’ 6” Shipping Width (with dual strike off) - no permit required

• 24” (.609 m) Wide Heat-Resistant Chain Over Belt

• 3 Cubic Yards Hopper Capacity

• Hopper Lift, 170 Load Angle

• Single Pivoting Control Station

• Hydrostatic Drive and Traction Control System

• Extendable Push Rollers

• Unobstructed View from the Operator’s Station

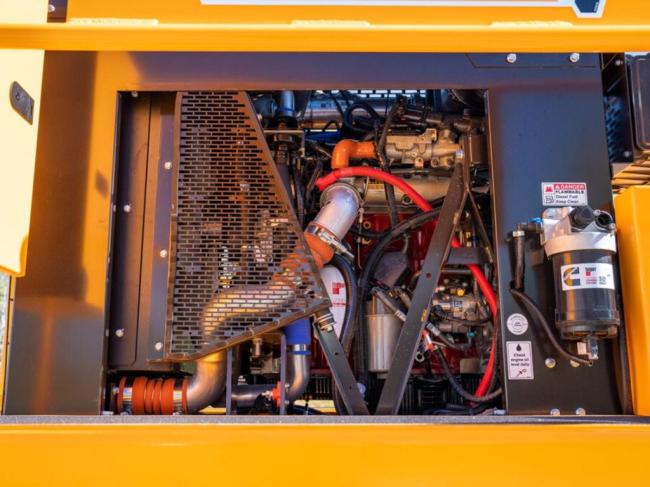

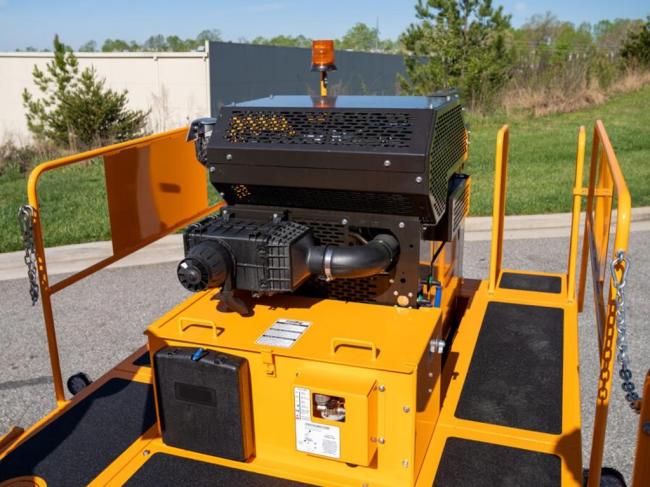

ENGINE

• 130 hp Cummins Tier 4 Final engine

• Water-cooled

• Battery: 12 volt, 120 amp alternator

• Electric start

• Fuel reservoir: 51 gallons

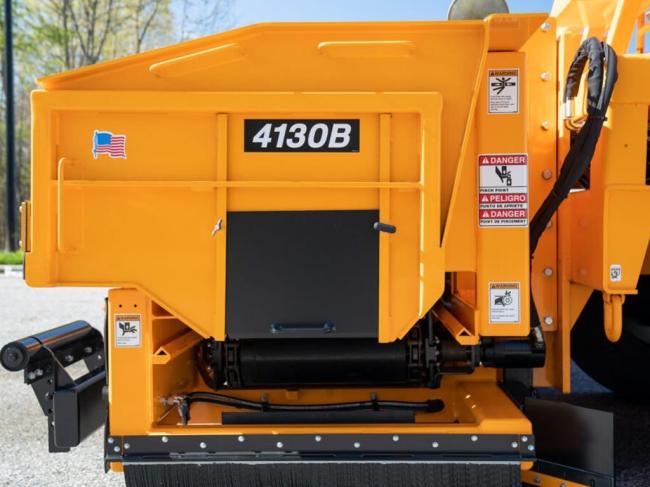

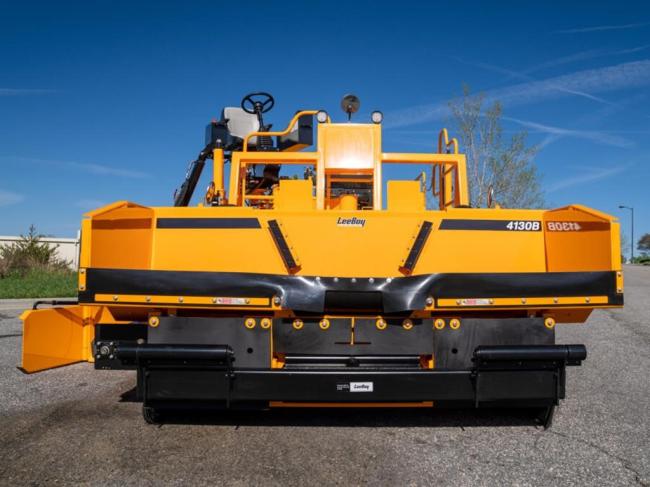

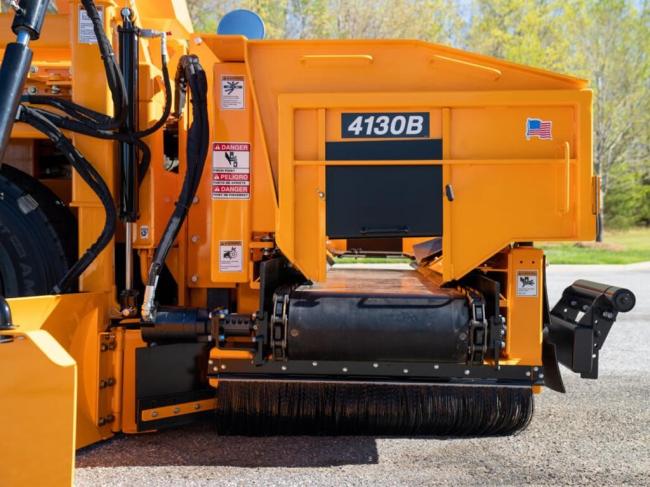

HOPPER

• 3 cubic yards capacity

• Hopper lift: 6” to 28”

• Two bearing equipped push rollers

• Hopper width (truck entry) 10’

CONVEYOR SYSTEM

• 24” wide, heavy duty chain over belt with high temperature service nitrile

• Independent, variable speed, hydrostatic, dual end drive system

• Conveyor speed: 0 to 448’ per minute (5.09mph)

• Equipped with adjustable wipers to prevent material buildup

• Shiftable up to 18” side-to-side

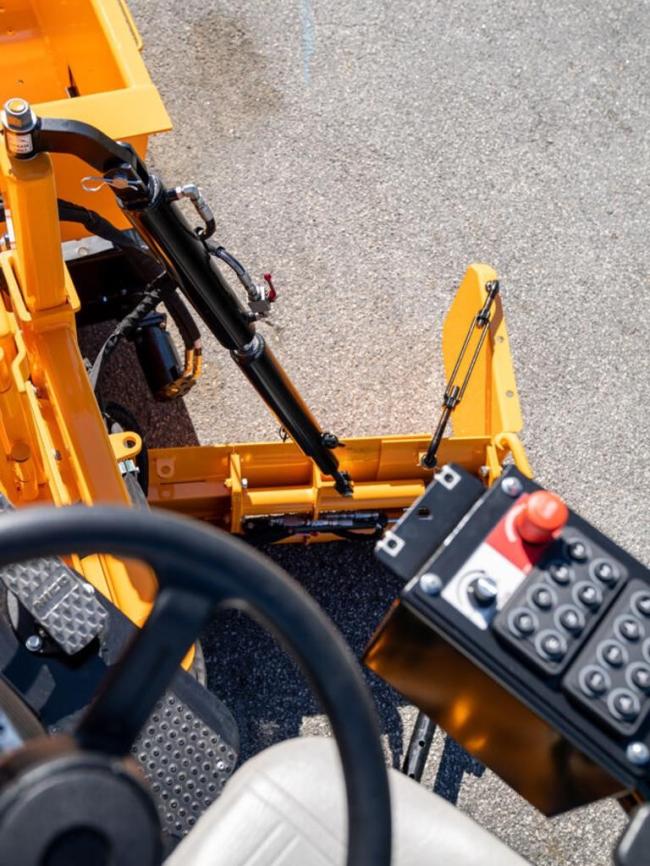

MATERIAL SPREAD STRIKE OFF

• Contoured strike off for controlled spread of material width, depth and slope

• Width of spread: up to 8’

• Basic strike off consist of one 1’ and one 2’ - 3’ section, extendable

• Basic strike off is mounted on the right, can be moved to the left if desired

• Raised, lowered, extended and retracted hydraulically with manual stops for fine adjustment of elevation and slope

• Outer end gate assembly included

• 12” above and below grade

• On board storage for strike offs and strike off supports

BRAKES

• Hydrostatic traction drive primary braking

• Parking brake controlled by button on operator’s console

• Failsafe parking brake

• Foot pedal hydraulic service brake

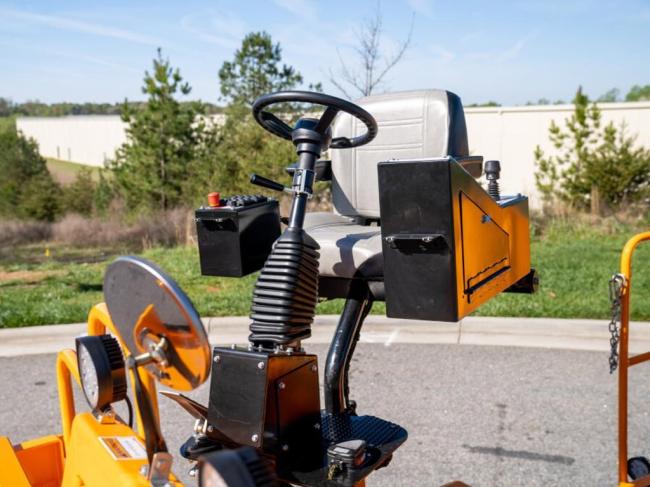

OPERATOR’S CONTROLS

Single pivoting control station with supporting rollers: control station swings outside of frame left or right when working, or centered for transport Operator seat with armrest with tilting and telescoping steering wheel. Control functions on the operator’s console: Main power, starter throttle, horn, conveyor speed, shuttle and discharge direction, strike off grade, slope and extension, hopper wing, steering, and parking brakes

INSTRUMENTATION

DM430 digital display for: Engine oil pressure, Water temperature, Voltmeter and hydraulic oil temperature Tachometer, Hour meter, Engine RPMs, Hydraulic Pressures Screen

TIRES

• Two 385/65R 22.5 radial

• Two 425/65R 22.5 radial

ADDITIONAL STANDARD EQUIPMENT

• Counterweight, 6,010 lbs

• Lockable tool box

• LED work light package

• LED beacon light

• Back-up alarm

• Vandalism cover

OPTIONAL EQUIPMENT

• Dual strike-off group

• 1’ contoured strike-off section

• 3’ contoured strike-off section

• TopCon controls

• 4 wheel drive with 4 wheel steering

• Washdown system with 2 hose reels and

• 7 gallon tank

• Truck hitch

• Umbrella

Similar models may be shown in addition to the featured model. Equipment may be shown with options.

Specifications are subject to change without prior notice.
