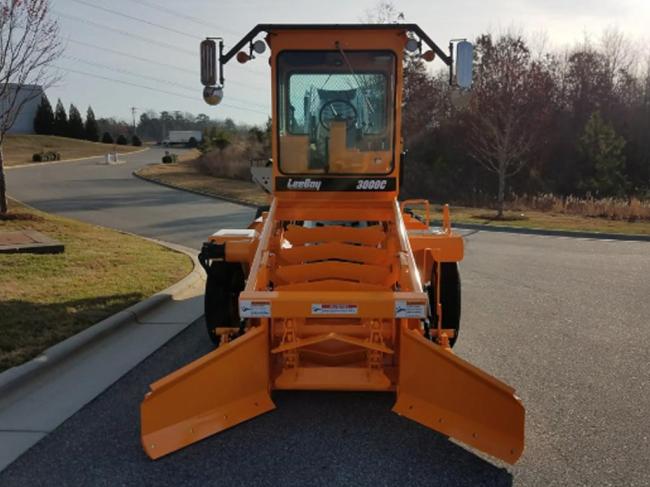

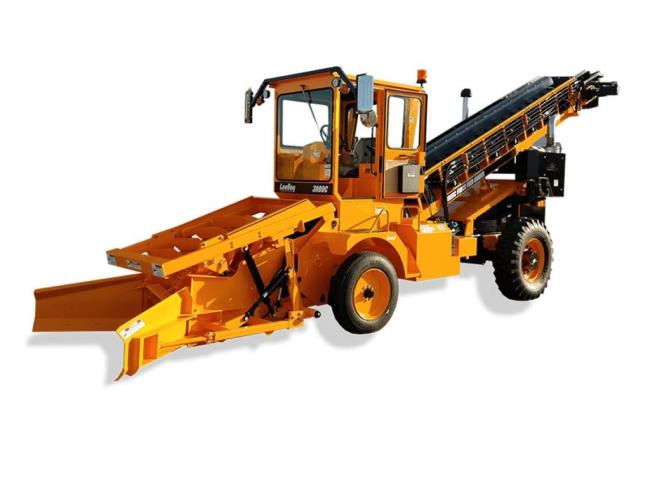

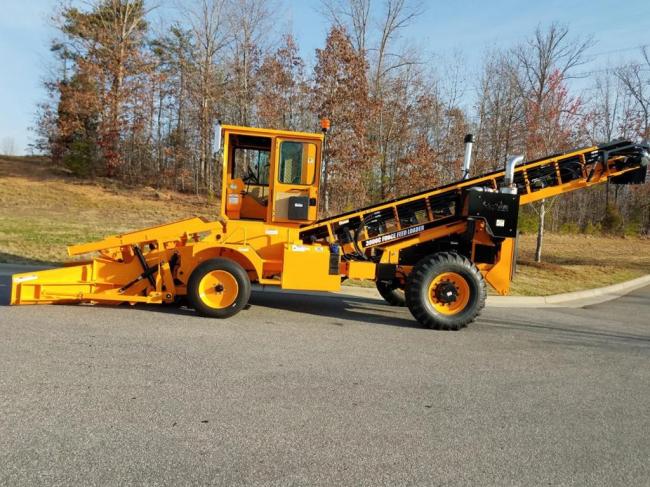

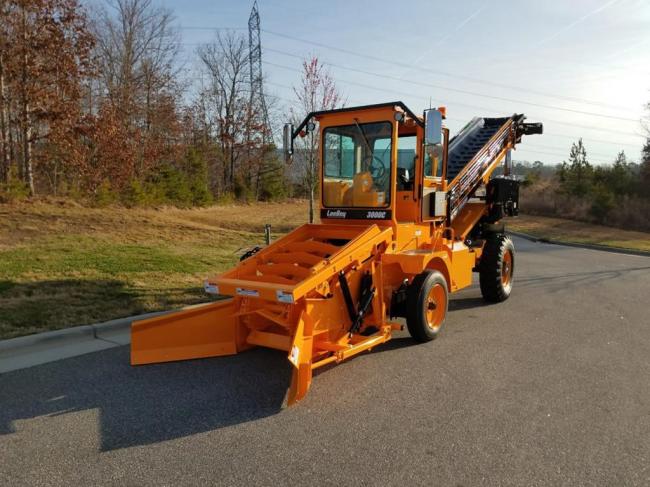

LEEBOY 3000C — FORCE FEED LOADERS
The only available machine of its kind, the versatile 3000C Force Feed Loader is a year-round workhorse, picking up soil, snow, millings or other windrowed material for fast, low-cost material loading. The climate-controlled operator’s platform and cab enhance safety and comfort while providing superior visibility to the front pickup feeder and rear discharge conveyor. The loader excels at continuous high capacity material loading and offers safe, single or double lane operation in roadway applications.
PERFORMANCE FEATURES
• 130 hp (97 kw) Cummins Tier 4 Final Diesel Engine
• Choice of Tapered or Multipurpose Moldboard
• 30” Wide Variable Speed, Reversible, Cleated Conveyor Belt
• Fully Enclosed, Lockable Cab
• Two-Speed Hydrostatic Transmission
• Fail-Safe Braking System
• Year-Round Windrowed Material Loading
• Clear Visibility to the Front Feeder and Rear Conveyor
• Discharge Material to Either Side of the Machine
MOLDBOARD
• Tapered moldboard with replaceable cutting edges, factory set 7’ operating system
• Float position provided and hydraulically raised, lowered and tilted
• Multi- purpose auger moldboard, optional
FEEDER ASSEMBLY
• Replaceable paddles attached to a chain assembly driven by a hydrostatically operated gear reduction and drive shaft/sprocket assembly
• Paddle size: 3’ wide x 6” high
CONVEYOR
• Hydraulically raised and lowered
• Heavy-duty, reversible, 2-ply polyester cord carcass with rubber covers
• Includes 1” rubber cleats
• Independently controlled for variable speed
• Conveyor length: 28’ standard
• Belt width: 30”
• Belt speed: 0 to 600’ per minute
DRIVE
• Hand operated servo-controlled, variable speed hydrostatic pump with internal pressure override
• Variable speed hydrostatic motor
• Heavy-duty off road, two speed gear box, no slip differential
STEERING
Hydraulic power steering
BRAKES
• Hydrostatic dynamic service brakes
• Foot operated, power assisted wet disc secondary brakes
• Parking brakes are spring-applied hydraulically released wet disc

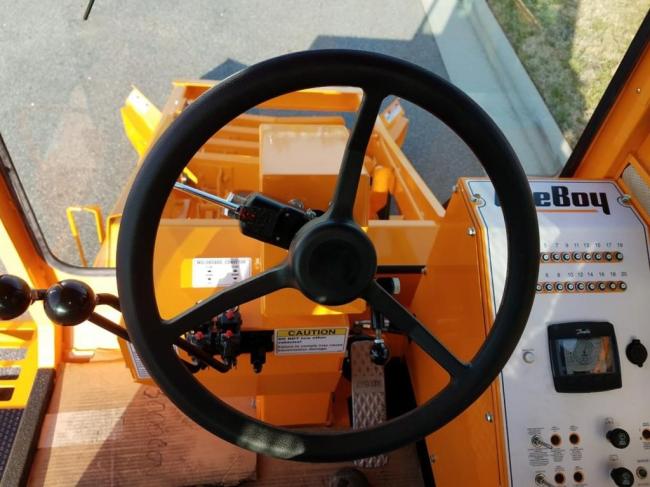

OPERATOR’S AREA
• Fully enclosed cab including safety glass
• Front and rear wiper and washer
• Deluxe seat with safety belt and armrest
• Sound suppression
• Tilt console
INSTRUMENTATION
• Low engine oil pressure, high engine temperature alarm/shut down
• Color graphic control screen with digital readout. Review and monitor system vitals including voltmeter, fuel gauge, oil pressure gauge, tachometer gauge, water temperature gauge, hour meter, def fluid level
• Air filter restriction indicator
ADDITIONAL STANDARD EQUIPMENT
• Lockable cab
• Convex and west coast style mirrors
• Cold weather engine package
• Front fenders
• Head lights and turn lights
• LED beacon light
• Back up alarm
• Back-up lights
• 12V DC power outlet
• Vandalism protection package
• Horn
OPTIONAL EQUIPMENT
• 180 degree swivel conveyor
• Stand for swivel conveyor
• Heating/air conditioner
• LED work light package
• Truck signal light
• Radio/CD/Bluetooth w/ dual speakers & remote
• Central lubrication system
• Shoulder scraper blade attachment
Specifications are subject to change without prior notice.
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
