Details - Application Rate Control:
|
Computer monitors the actual speed of the spreader, varies gate opening to maintain the set application rate | Plus+1 CAN Bus system with auto-rate control monitors actual speed of the spreader regardless of load conditions | Programmable application rate in lbs per sq. yard | Include rock size, type, chipping width, feet per minute and accumulative totals | Ability to access memory settings service screens, system faults, engine faults, machine settings, calibration settings and display units in English or metric | Control switches for the working lights, turn/hazard signals and beacon |
Details - Auxiliary Pump System:
|
Capacity to operate the hydraulic gate cylinder, hopper extension, augers, conveyors and spread roll on aggregate hopper | Auxiliary circuits have minimum 500 psi relief setting for the hydraulic gate cylinder | 2,500 psi conveyor |
Details - Brakes:
|
Two wheel drive: Front axle hydraulic multiple wet disc type | Rear axle hydraulic actuated brakes, spring applied and hydraulic released |
Details - Control Functions:
|
Hydrostatic control system | Manual mode: Operator can vary forward/ reverse speeds of unit with joystick | Speed ranges: 0 to 20 mph (0 to 32.1 kph), high range 0 to 10 mph (0 to 16 kph), low and reverse ranges |
Details - Conveyor Belts:
|
Two independently operated, aggregate feed conveyors | Adjustable tail pulleys with pillow block style bearings, grease zerks for each bearing | Auto and manual system controlled from touch pad system integrated with Plus+1 system | Belt width: 20” (.508 m) | Speed: 0 to 500’ per minute (152.4 m per minute) |
Details - Fan Drive System:
|
45 cc/rev pump to provide optimal flow to the fan drive and steering circuit | 1,325 psi orbital steering |
Details - Front Axle:
|
52,900 lbs (23,995 kg) rated capacity, oscillating type | 24.97:1 ratio, wet disc brakes, 5,400 lbs (2,449 kg) application | Powered by 9.82 cubic in (160,921 cubic mm), rev two-speed hydraulic drive motor | Automotive type, drive shaft axle connection between axle and hydraulic drive motor |
Details - Hydrostatic Pump Drive:
|
Single H1 electric controlled pump | 10.07 cubic in (165,017 cubic mm) rev designed to provide optimum traction for two or four wheel drive system | Hydraulic pump has pressure compensating pump for auxiliary systems | Hydraulic reservoir: 75 gallons (283 l) |
Details - Instrumentation:
|
Plus+1 CAN Bus control and onboard diagnostic system| DP 710 color graphic display 7”(177.8 mm), 800x480 pixel| Gauges include engine water temperature, engine oil pressure, tachometer, fuel gauge, DEF| fluid, voltmeter, hydraulic temperature, hour meter and volt meter |
Details - Operator's Area:
|
One full console on left side, 15” (38.1 cm) slide out platform for optional field of view | Right hand remote operator control | Appropriate foot brake control | Parking brake electronically controlled on main control console | Access to engine and hydraulic components accessible from operator’s deck | Cushioned and adjustable seat |
Details - Rear Axle:
|
Two-wheel drive system | Minimum 22,500 lbs (10,205 kg) rated capacity | 16.5” (.419 m) diameter, 7” (177.8 mm) wide brakes, manual slack adjusters | Drum type brakes, spring applied and hydraulic released | Minimum 7” (177.8 mm) ground clearance |

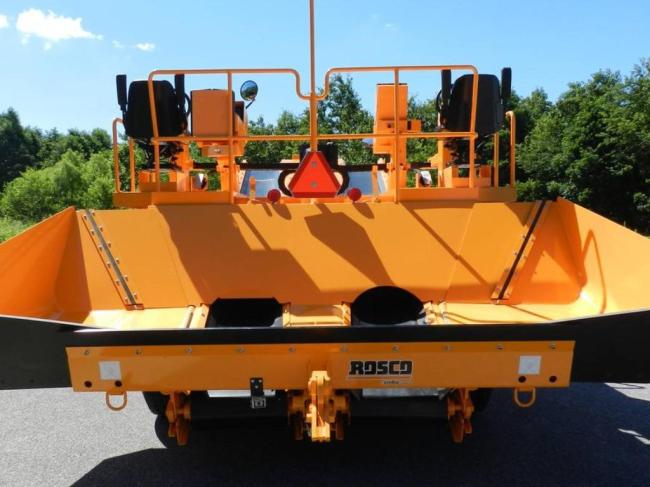

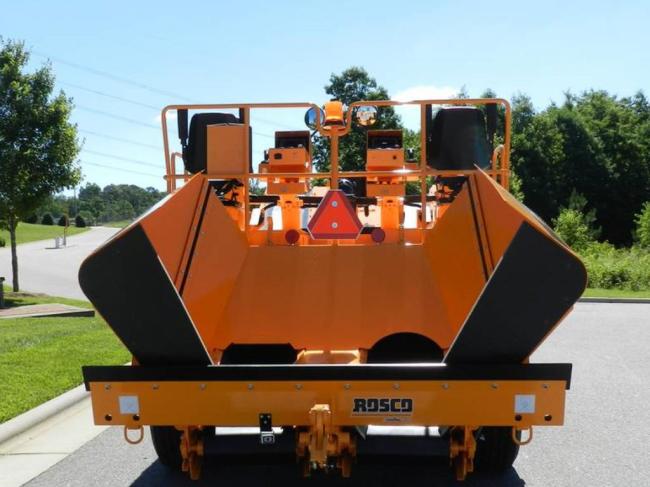

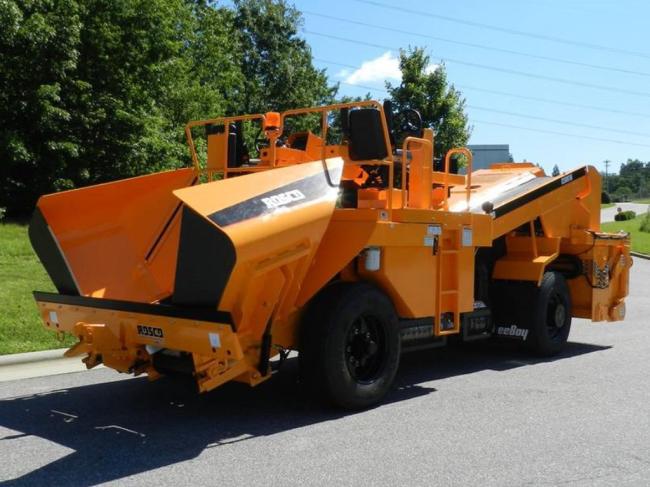

Details - Rear Hopper:
|
Two independent manual flow control gates easily accessible from operator’s station for the conveyors | Skirting in the receiving hopper to minimize spillage | Capacity: 3.5 cubic yards (2.67 cubic m) struck | Receiving width: maximum 11’ 10” (3.6 m), minimum 9’ 6” (2.89 m) |

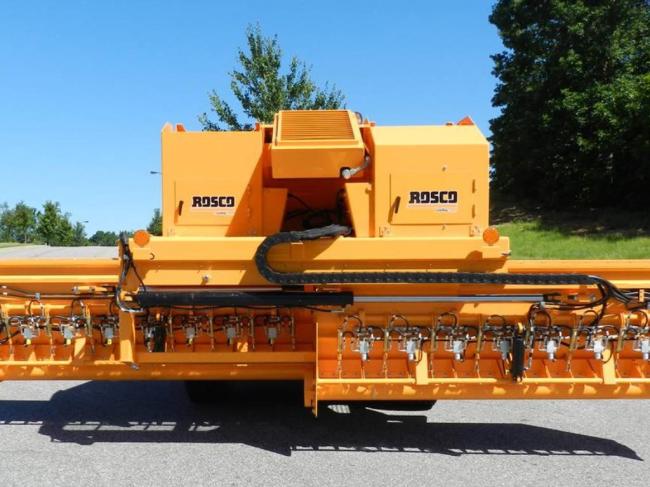

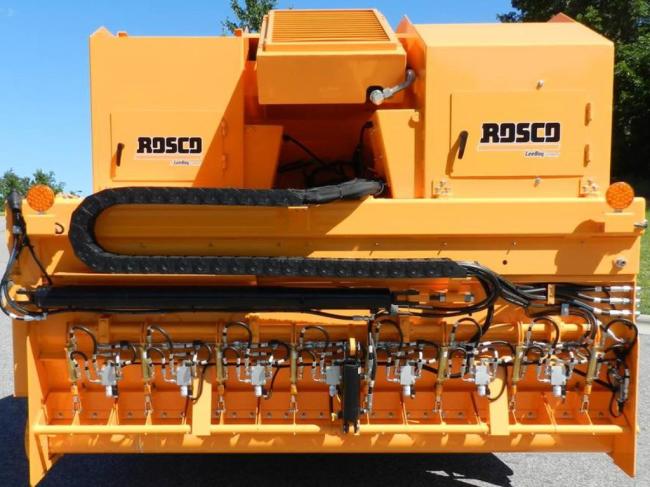

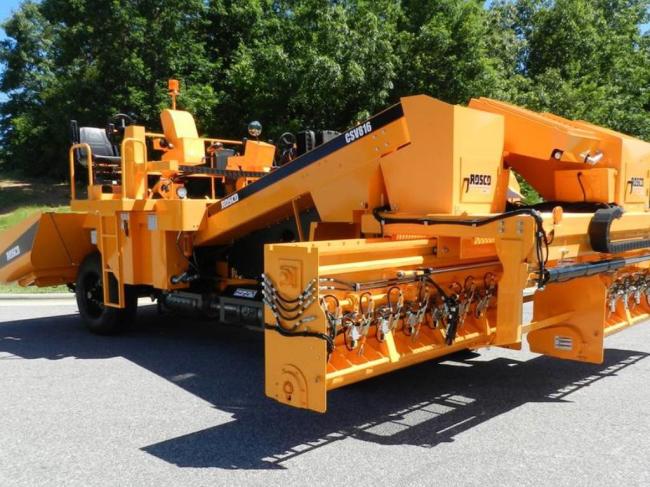

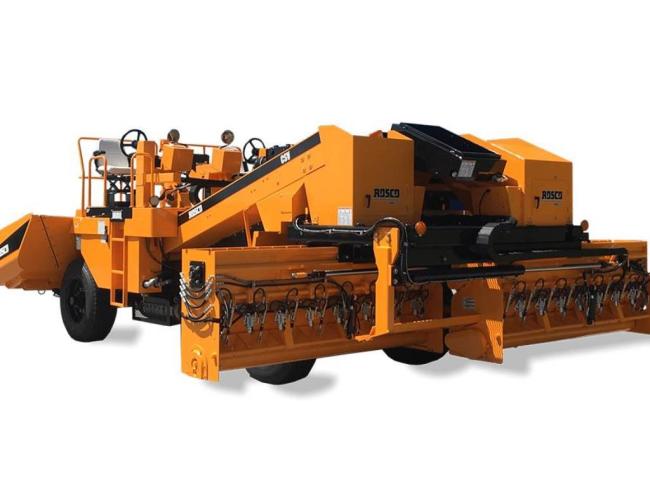

Details - Spread Hopper:
|
0’ to 16’ (0 to 4.87 m) hopper | Individual gate controls that are operated from the control station via electric over hydraulic | 12” (.304 m) augers | Spread roll diameter of 6.625” (168.275 mm), 0.25” (6.35 mm) thick wall | Spread roll maximum speed approximately 150 rpms | Full length rejection screen on the spread hopper, maximum opening of 1” (25.4 mm) | Capacity: 1 cubic yards (.764 cubic m) per side |
Dimensions - Height:
|
8’ 8” (2.64 m), beacon retracted |
Dimensions - Length:
|
25’ 10” (7.874 m) |
Dimensions - Turning Radius:
|
26’ (7.92 m) outside turn radius | 22’ 3” (6.78 m) inside turn radius |
Dimensions - Weight:
|
23,720 lbs (10,759 kg), unloaded | 36,000 lbs (16,329 kg), loaded |
Dimensions - Wheelbase:
|
12’ 10.5” (3.92 m) |
Dimensions - Width:
|
8’ 6” (2.59 m) |
Engine - Air cleaner:
|
Dry type dual air cleaner system with indicator |
Engine - Batteries:
|
Dual 1000 amp, 12 volt |
Engine - Engine Throttle:
|
Electrical variable controlled |
Engine - Fuel Filter:
|
Fuel water separator filter |
Engine - Fuel reservoir:
|
65 gallons (246 l) |
Engine - Ground System:
|
12 volt negative |
Engine - Model:
|
Tier 4 Final, 275 hp (205 kw) Cummings diesel turbocharged engine |
Engine - Proportional hydraulic fan drive:
|
Maximize hp (kw), reduce noise and automatic cleanout |
Steering - Drive System:
|
Independent |
Steering - Fully hydraulic:
|
Orbital type |
