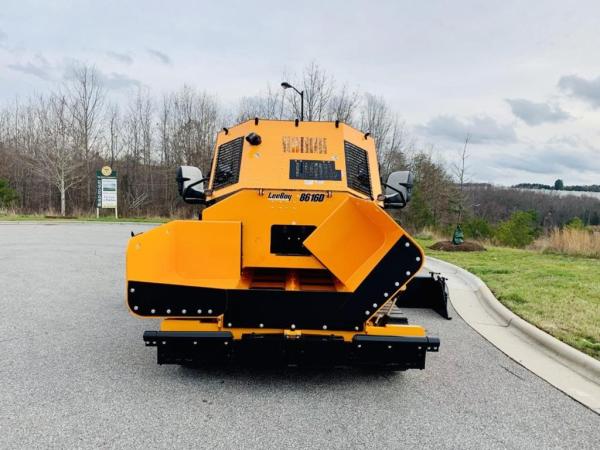

LEEBOY 8616D - ASPHALT PAVER
The 8616D Asphalt Paver encompasses many features of a larger highway-class paver yet maintains a sleek footprint to better suit the commercial contractor looking for a heavier unit. Highly adaptable for heavy commercial jobs, the flexible spontaneous design gives the operator the ability to switch the unit from high deck to low deck in the matter of minutes. There’s nothing left to desire as this unit provides greater serviceability with easy to locate components, consistent material flow and the Legend HD PRO Screed for higher production yields.
PERFORMANCE FEATURES
• 127 hp (95 kW) Kubota Tier 4 Final Diesel Engine
• Legend HD PRO Screed, Weight 4,150 lbs
• Paving Widths Variable Up To 15’ 6”

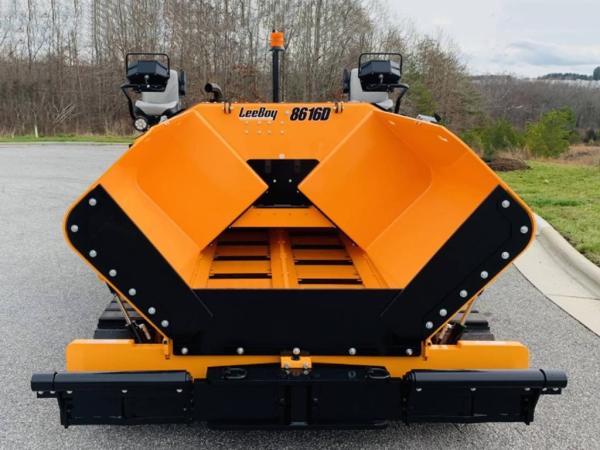

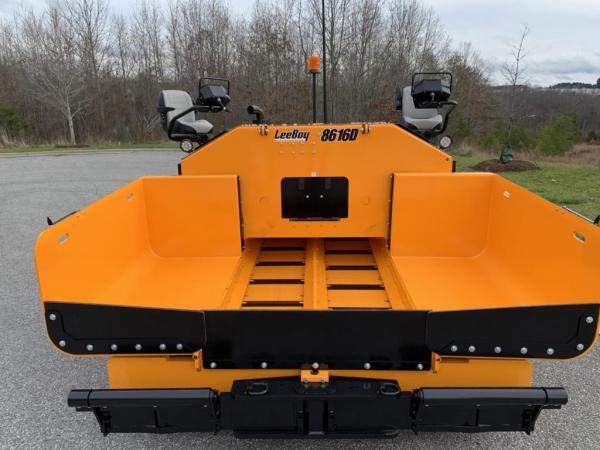

• 9 Ton Capacity Material Hopper
• Operator’s Choice of High or Low Deck Configuration
• Remote Mounted SCR for Greater Visibility
• Dual Electronic Steering & Adjustable Operator Platforms
• Two 20.5” Feeding Conveyors
• Automatic Temperature Control (ATC) Standard
• Electric Screed Heat, 14.4 kw Generator
• Actuator Driven Hood Lift to Aid in Maintenance
ENGINE
• Kubota turbocharged diesel
• Tier 4 Final – 127 hp (95 kW)
• Remote mounted DOC + DPF + SCR
• MURR I/O distributor blocks with LED lighting
HOPPER
Hopper size: 9 ton
PAVING WIDTHS
Variable up to 15’ 6”
PAVING DEPTHS
Manual flight screws positioned on the screed to control material thickness, depth: 0” to 8”
SCREED

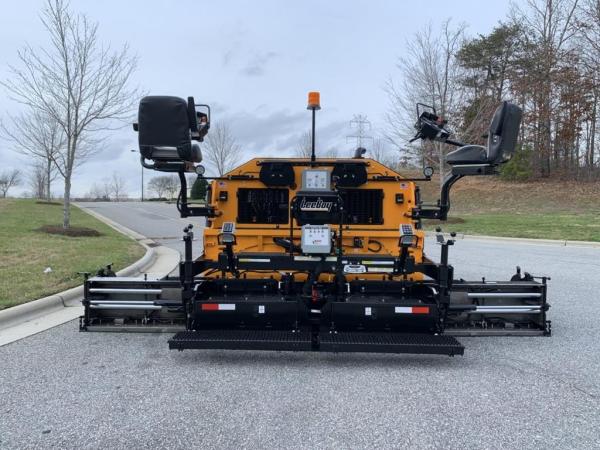

• Legend HD PRO Screed, free floating
• Weight: 4,150 lbs
• Consisting of a main screed and two hydraulically operated screed extensions
• Spring-loaded end gates standard
• Hydraulic sloping screed extensions standard
• Equipped with two electric vibrators, 4100 RPM
SCREED HEAT
• Legend electric screed heat, 14.4 kw generator
• Electric timer and automatic temperature control
• Sealed s-curve elements in main screed and sealed blade-style elements in extensions
SCREED CROWN/VALLEY
• Equipped with a crown/invert adjustment
• Includes a levelling indicator for the operator
MATERIAL HANDLING
• Two hydraulically operated under auger material cutoffs can be set to close in reverse
• Single point lube system

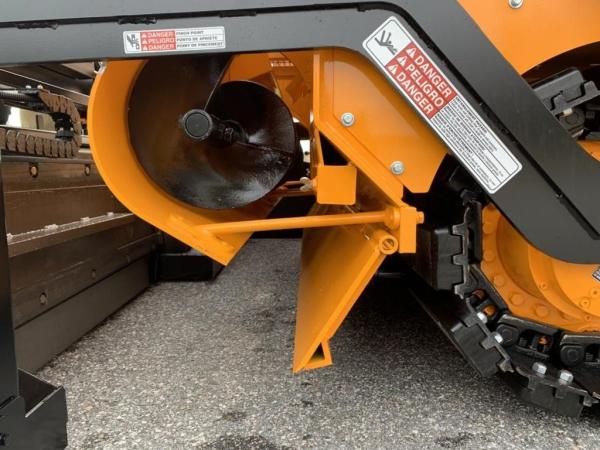

• Two 12” independent hydraulically operated cast augers
OPERATOR’S PLATFORM
• Full machine width platform, slide out extensions
• Pivoting, swing out seats and control panels

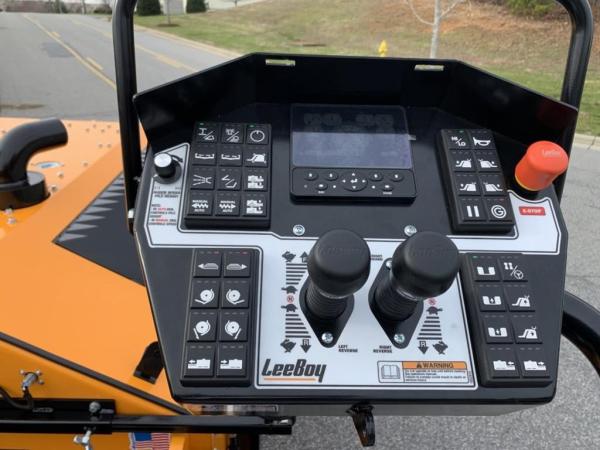

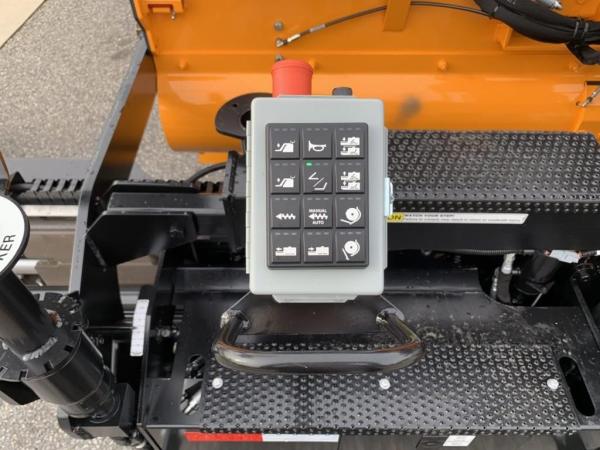

OPERATOR’S CONTROLS
• Dual adjustable, independent control stations
• Colored LED, sunlight viewable control screens with digital readouts
STEERING
• Dual electronic steering controls
• Electronically controlled pumps operated by the forward/reverse joysticks
WASHDOWN SYSTEM

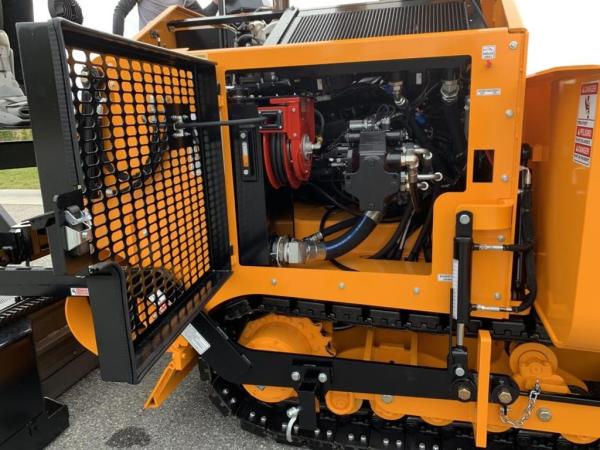

Electric HD pump with hose and two hose reels
PUSH ROLLERS
• Two rollers with sealed bearings mounted to allow pivoting on frame, built in material scrapers
• Vertically adjustable oscillating push rollers

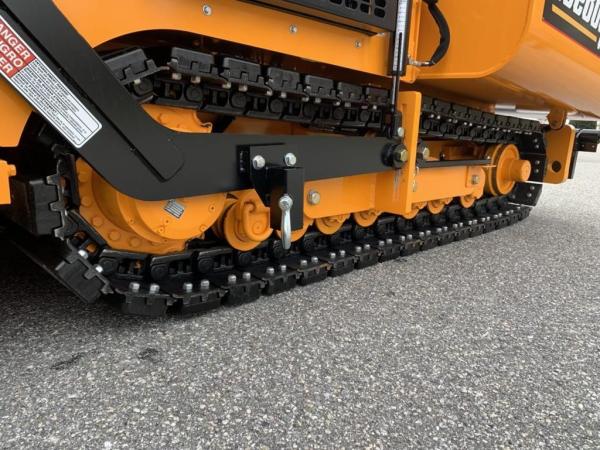

TRACK DRIVE SYSTEM
• Hydrostatically powered, self-cleaning crawler type
• Track size: 14” w x 108” long poly
• Paving speed: 0 to 125’ per minute (1.4 mph)
• Travel speed: 0 to 350’ per minute (3.9 mph)
ADDITIONAL STANDARD EQUIPMENT
• Gauge package
• Actuator-driven hood lift
• LED beacon light
• LED work light package
• Integrated tool boxes
• Vandalism protection covers
• 2 Year Standard Product Warranty
OPTIONAL EQUIPMENT
• Smooth Ride HD poly pad track
• Screed extension vibration
• Heated endgates

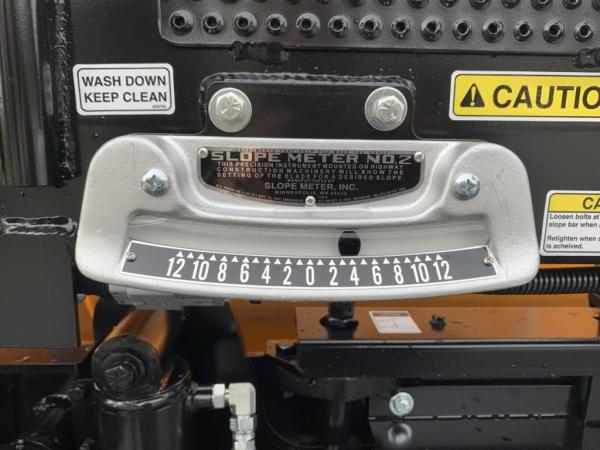

• Slope meter
• 3:1 flight screw adjusters
• Horizontal flight screw adjusters
• Truck hitch
• Hydraulically extendable oscillating push roller
• Central point lube system, screed
• Steering knob drive controls (in lieu of joysticks)
• Power crown
• Wiring only, grade controls (TopCon)
• Sonic grade control, one side (TopCon)
• Dual grade control (TopCon)
• Dual grade and slope (TopCon)
• 12” x 6” Berm extension (LH & RH)
• LED Blade light system
• Umbrella Mounts (x2)
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications are subject to change without prior notice.
Specifications
- Capacities - DEF Tank: 5 gallons
- Capacities - Fuel: 37 gallons
- Capacities - Hydraulic Reservoir: 31 gallons
- Capacities - Washdown Tank: 7 gallons
- Dimensions - Height: 6'8" low deck | 7'10" high deck
- Dimensions - Length: 16’4”
- Dimensions - Total Weight: 23,450 lbs. w/ screed
- Dimensions - Width: 8’6” transport | 10’ hopper wings down
