Leeboy 8520C
| Make | Leeboy |
| Model | 8520C |
| Type | Asphalt Pavers |
How can we help?
Description

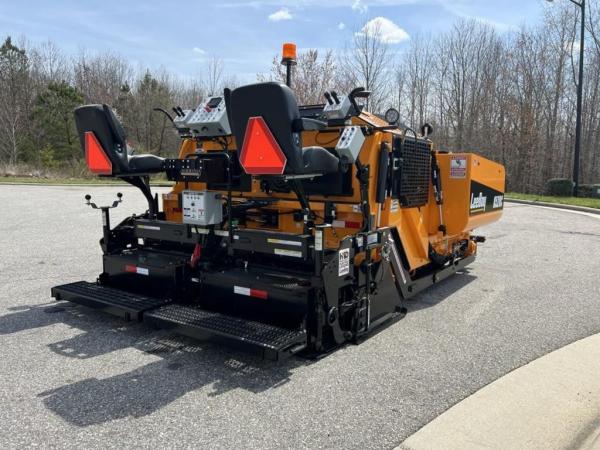

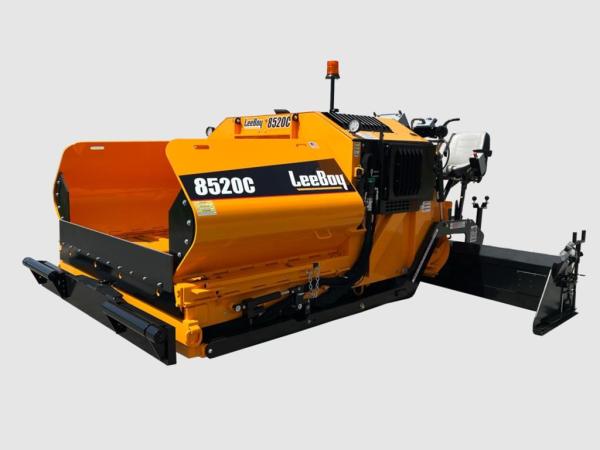

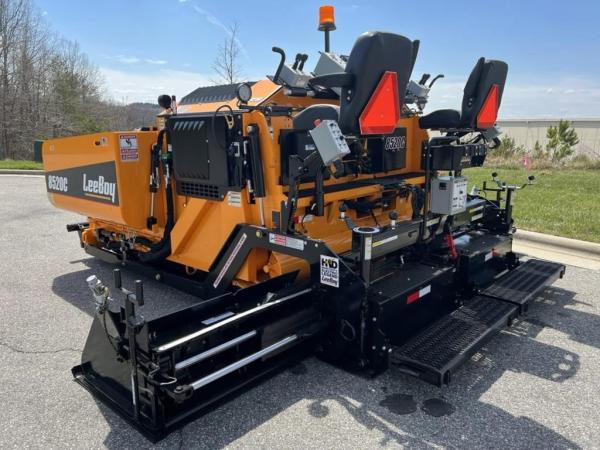

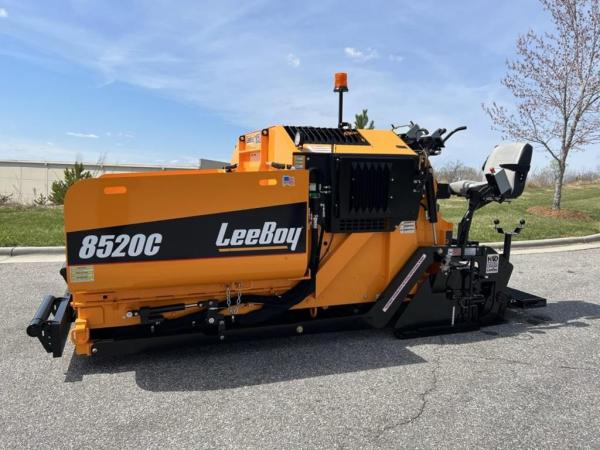

LEEBOY 8520C — ASPHALT PAVERS
We’ve set the standards in heavy-commercial paving even higher! Equipped with exciting new features that were truly designed with the paving professional in mind, the LeeBoy 8520C is a 125hp workhorse. Standard machine assets include the 3,450 lbs Legend HD Screed with, heavy-duty conveyor chains, dual seating and sliding main controls, a LeeBoy 2-year product warranty as well as many other enhancements. As always, LeeBoy’s wide slow-moving conveyor system moves material from the truck to the screed without segregation which ensures a flawless mat.
PERFORMANCE FEATURES
• 125 hp (93 kw) Kubota Tier 4 Final Diesel Engine

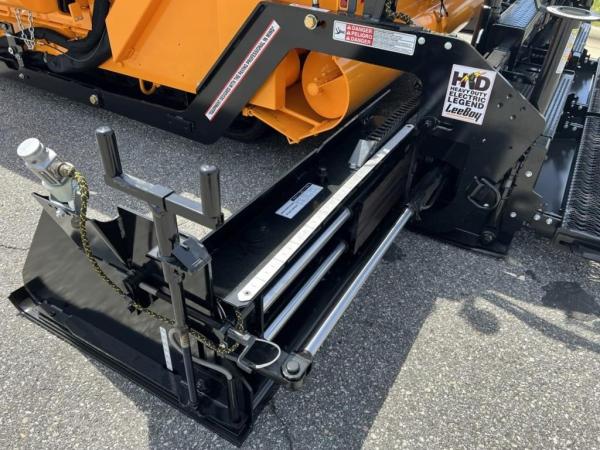

• Legend HD Screed, Weight 3,450 lbs
• Paving Widths Variable Up To 15’

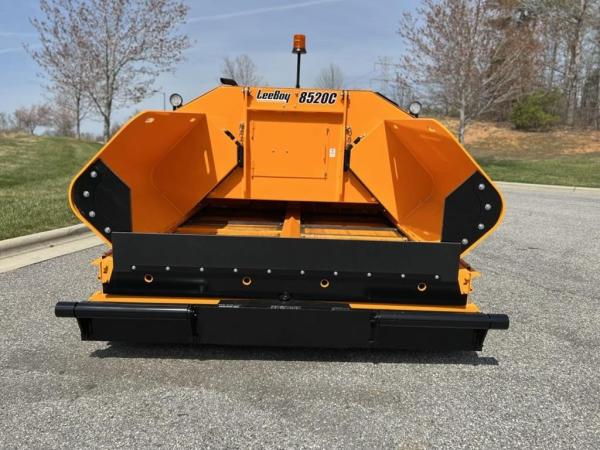

• 9 Ton Capacity Material Hopper
• Operator’s Choice of High or Low Deck Configuration
• Remote Mounted SCR for Greater Visibility

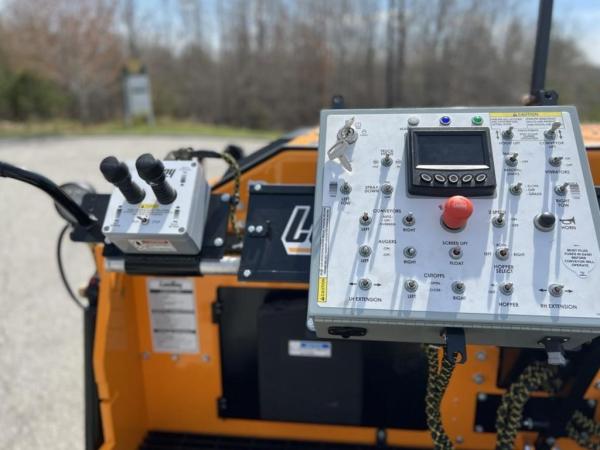

• Dual Electronic Steering
• Ultra-efficient Wide-Conveyor Material Management
• Automatic RPM Control System

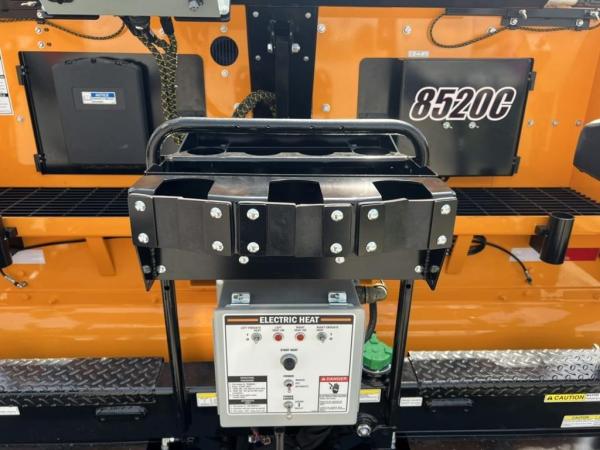

• Electric Screed Heat, 14.4 kw Belt-Driven Generator

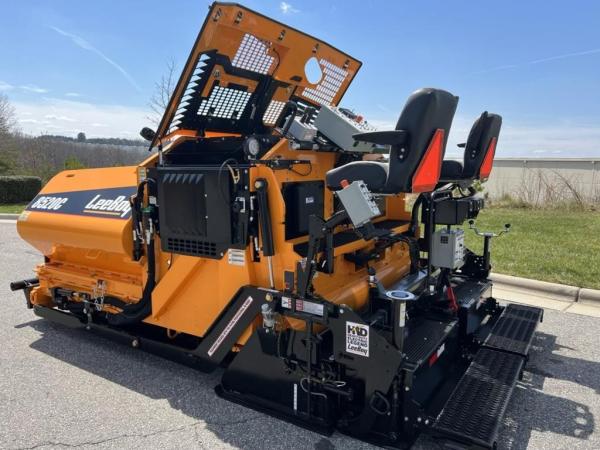

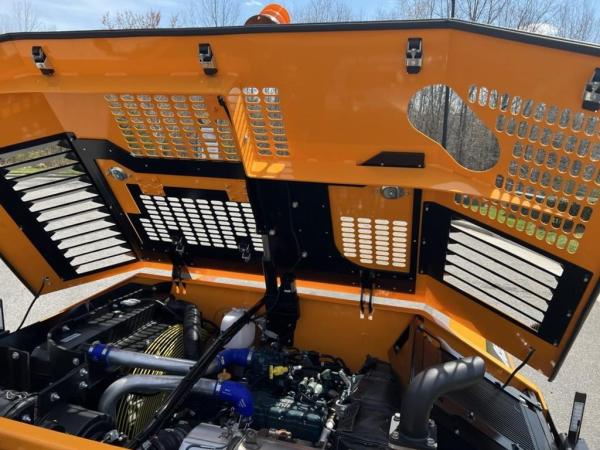

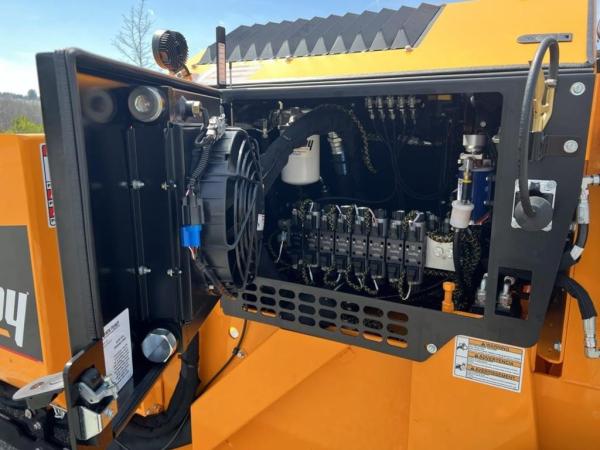

• Actuator Driven Hood Lift to Aid in Maintenance
ADDITIONAL STANDARD EQUIPMENT
• Gauge package
• Back-up alarm
• LED beacon light
• LED work light package
• Vandalism protection cover
• 2 Year Standard Product Warranty
OPTIONAL EQUIPMENT
• Legend HD PRO Screed, Weight 4,150 Variable paving width up to 15’ 6”
• Screed extension vibration
• Automatic screed temperature control
• Rubber track, continuous
• Sloping screed extensions
• Heated endgates
• Slope meter
• Horizontal flight screws
• 3:1 flight screw adjusters
• Truck hitch
• Power crown
• Single point lube system, screed
• Steering wheel drive controls, in lieu of joysticks
• Wiring only, grade controls (TopCon)
• Sonic grade control, one side (TopCon)
• Dual grade control (TopCon)
• Dual grade and slope (TopCon)
• 12” x 4.5” berm extension, left & right
• Raised on Blacktop package
• Other options available
Specifications are subject to change without prior notice.
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications
- Capacities - DEF Tank: 5 gallons
- Capacities - Fuel: 32 gallons
- Capacities - Hydraulic Reservoir: 25 gallons
- Capacities - Washdown Tank: 7 gallons
- Dimensions - Height: 6’ 8” low deck | 6’ 10” high deck
- Dimensions - Length: 14’ 10” | 13’ 10” transport
- Dimensions - Total Weight (with screed): 21,400 lbs. | 22,100 lbs. (with HD Pro Screed)
- Dimensions - Width: 8’ 6” transport | 10’ hopper wings down
- Engine - :
- Engine - Kubota turbocharged diesel: Tier 4 Final – 125 HP (93 kW) @ 2,200 rpm | Remote mounted DOC + DPF + SCR
- Paving Widths - Machine has variable paving widths: up to 15’
