Leeboy 8515E
| Make | Leeboy |
| Model | 8515E |
| Type | Asphalt Pavers |
How can we help?
Description

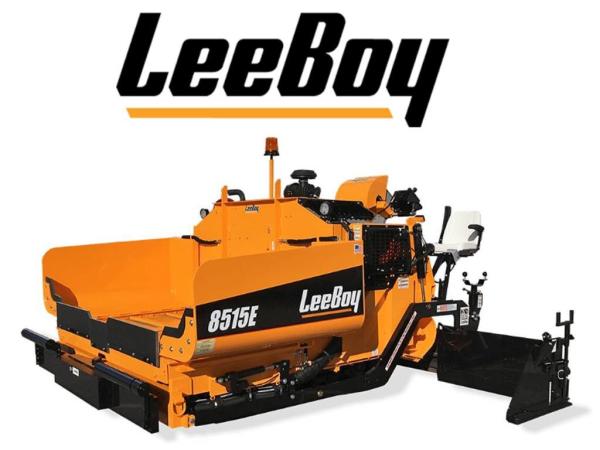

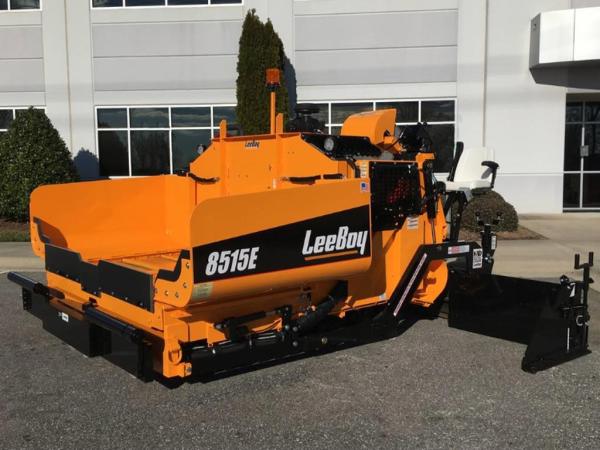

LEEBOY 8515E — ASPHALT PAVERS
Sleek, modern and low-profile are three words that immediately come to mind when evaluating the LeeBoy 8515E Asphalt Paver. Featuring an engine hood height of 69 inches (1.75 m) and a sliding control station, the 8515E gives the operator an extremely clear and comfortable view of their surroundings. With a class-leading tunnel size and self-cleaning conveyor bars, this machine is built to perform at the highest level. Easy-to-access, convenient maintenance areas are also a highlight of machine ownership.
PERFORMANCE FEATURES
• 74 hp (48 kw) Kubota Tier 4 Final Diesel Engine
• Paving Widths Variable Up To 15’
• Low Profile Engine Hood For Better Visibility
• Choice of High Deck or Low Deck Configuration
• Sliding Operator Control Station
• Ultra-efficient Material Management System
• Pressure Ports for Diagnostics and Testing
• 7.5 Ton Capacity Material Hopper
• Proven Legend Screed System
• Electric Screed Heat, 10 kw Generator
• Heavy-duty Undercarriage and Track System
ENGINE
• Kubota turbocharged diesel,
• Tier 4 Final – 74 hp (55.4 kw)

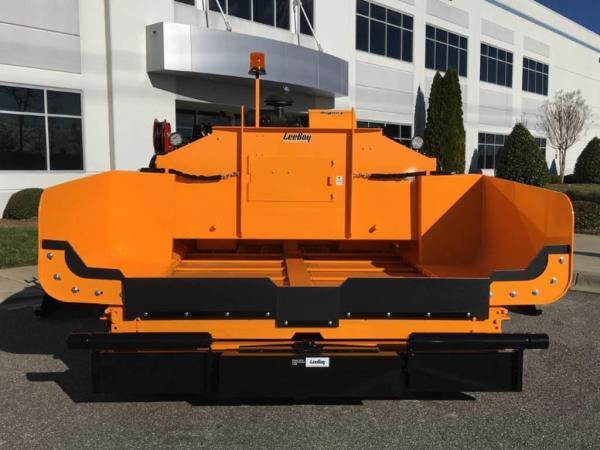

HOPPER
Hopper size: 7.5 ton
PAVING WIDTHS
Variable up to 15’
PAVING DEPTHS
• Manual flight screws positioned on the screed to control material thickness
• Depth: 0” to 6”

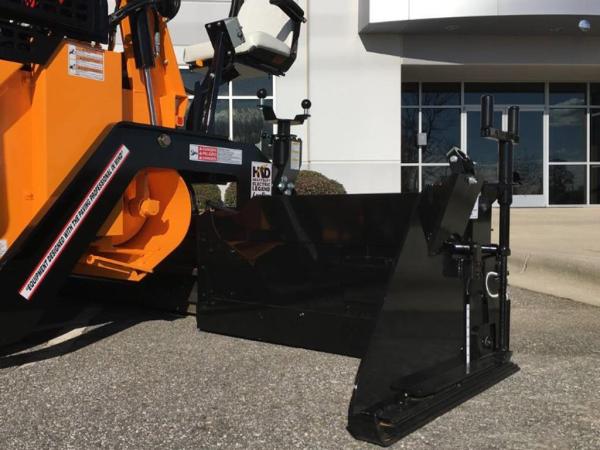

SCREED
• Legend Electric screed
• Consisting of a main screed and two hydraulically operated screed extensions
• Equipped with two electric vibrators
SCREED HEAT
• Legend electric screed heat, 10kw generator
• Electric timer and automatic RPM control system
• 2 Blade heating elements in main, 1 blade element in each extension
SCREED CROWN/VALLEY
• Equipped with a crown/invert adjustment
• Includes a levelling indicator for the operator

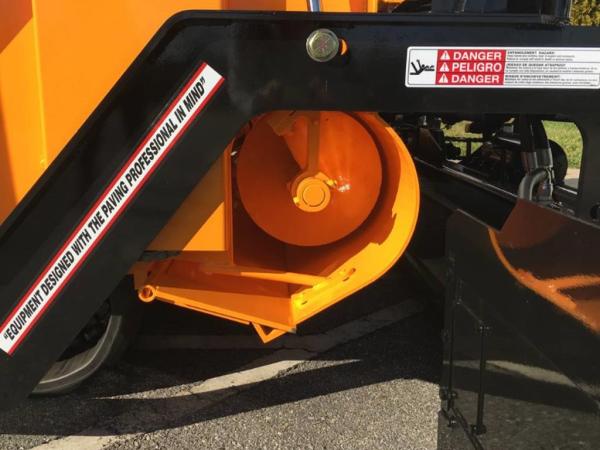

MATERIAL HANDLING
• Two independentaly controled, hydraulically operated under auger material cutoff
• Two 12” diameter independent hydraulically operated cast augers

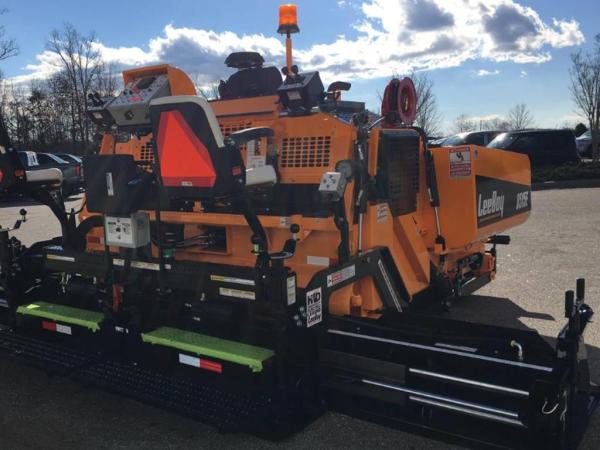

OPERATOR’S PLATFORM
• Full machine width platform
• Walkboard extensions slide outs, left and right

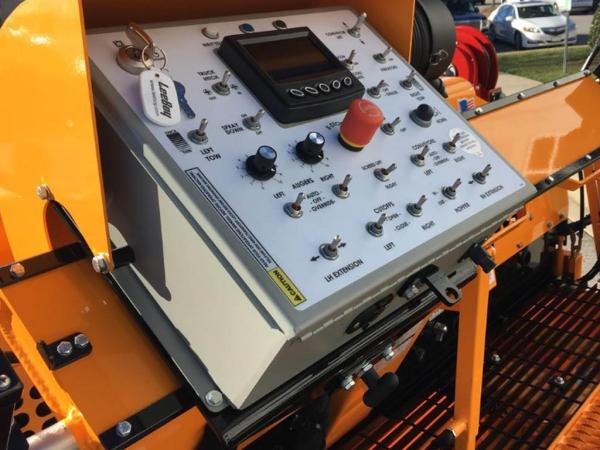

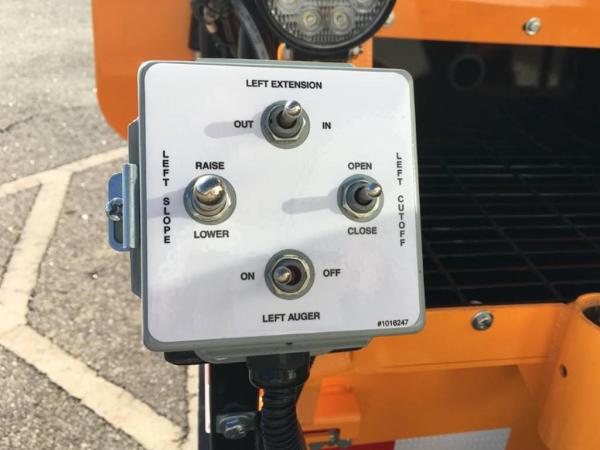

OPERATOR’S CONTROLS
All control switches are in a single control box which can be moved from right side to left side

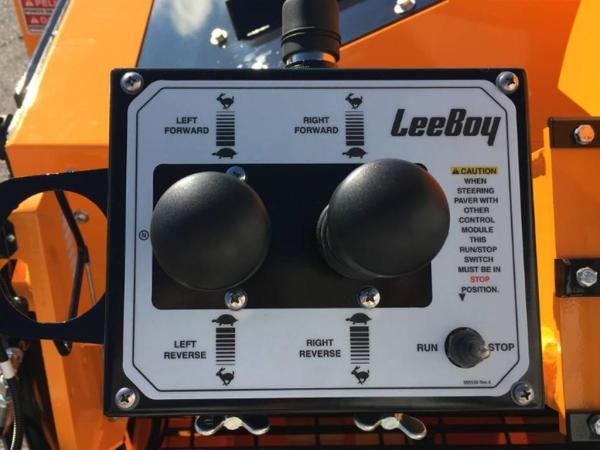

STEERING
• Dual electronic steering
• Electronically controlled pumps operated by the forward/reverse joysticks

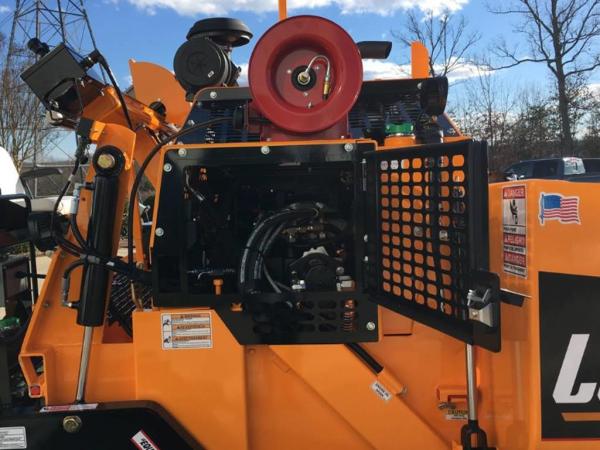

WASHDOWN SYSTEM
Electric HD pump and two hose reels

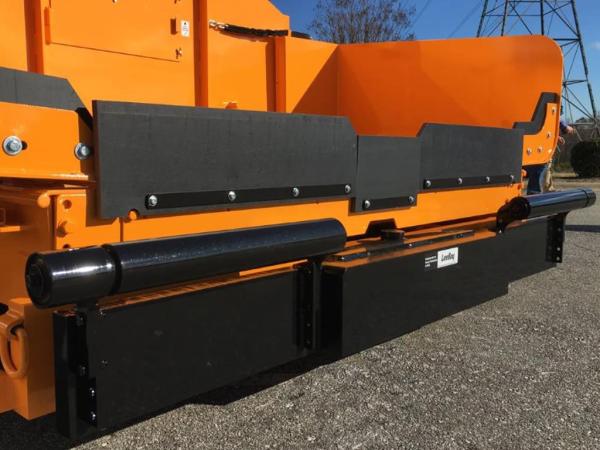

PUSH ROLLERS
Two vertically adjustable rollers with sealed bearings mounted to allow pivoting on frame.
TRACK DRIVE SYSTEM
• Hydrostatically powered, self-cleaning crawler type
• Track size: 14” wide x 77” long poly
• Paving speed: 0 to 150’ per minute (1.7 mph)
• Travel speed: 0 to 300’ per minute (3.4 mph)
ADDITIONAL STANDARD EQUIPMENT
• Back-up alarm
• LED beacon light
• LED work light package
• Vandalism protection covers
• Electronic gauge package (oil pressure, hour meter, fuel gauge, volt meter, water temp, tachometer, hydraulic oil temp, level warning)
OPTIONAL EQUIPMENT
• Legend HD Screed, 8’ to 15’, 10kw generator
• Remote screed control
• Automatic screed temperature controls
• Screed extension vibration
• Rubber track, continuous - in lieu of poly
• Steel track – in lieu of poly
• Sloping screed extensions
• Heated end gates
• Truck hitch
• Power crown
• Steering wheel drive controls (in lieu of joysticks)
• Wiring only, grade controls, includes A/M module
• Sonic grade control both sides
• Sonic grade control, one side (TopCon)
• Dual sonic grade (Topcon)
• Dual sonic grade and slope (Topcon)
• 12” x 4.5” berm extension, left and right
• Other options available
Specifications are subject to change without prior notice.
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications
- Capacities - DEF Tank:
- Capacities - Fuel: 23.5 gallons
- Capacities - Hydraulic Reservoir: 19 gallons
- Capacities - Washdown Tank: 7 gallons
- Dimensions - Height: 8’
- Dimensions - Length: 13’ 5”
- Dimensions - Total Weight: 17,600 lbs. w/ screed
- Dimensions - Width: 8’ 6” transport | 10’ hopper wings down
