Leeboy 8510E
| Make | Leeboy |
| Model | 8510E |
| Type | Asphalt Pavers |
How can we help?
Description

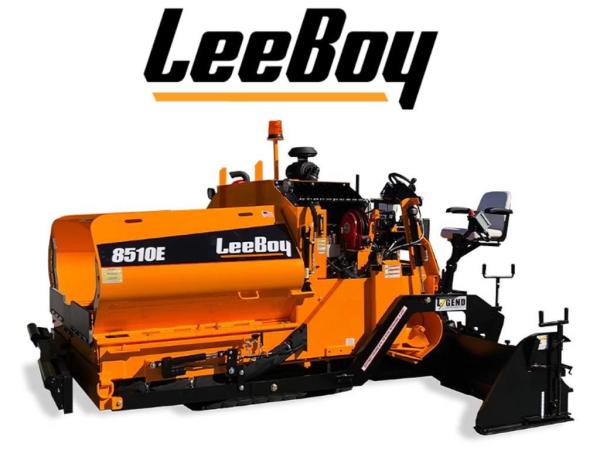

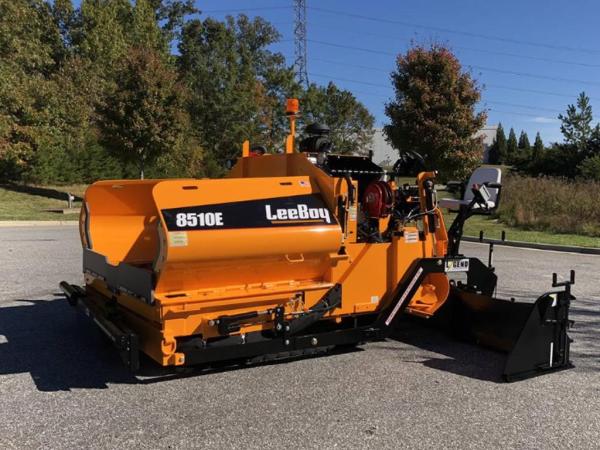

LEEBOY 8510E — ASPHALT PAVERS
Serving as a staple among commercial paving contractors, the LeeBoy 8510E delivers precise asphalt placement resulting in a flawless mat. Comprised of robust components for longer wear, this asphalt paving solution is perfect for contractors seeking a lower cost per ton. Embracing a large material receiving hopper and one of the widest conveyor system on the market, this paver is meant to deliver the utmost productivity between truckloads. If you desire an all-around commercial paving machine that delivers unmatched results, the 8510E is for you.
PERFORMANCE FEATURES
• 74 hp (55 kw) Kubota Tier 4 Final Turbocharged Diesel Engine
• Paving Widths Variable Up To 15’
• Choice of High Deck or Low Deck Configuration
• Dual Lever Joystick Steering Controls (both sides)
• Ultra-efficient Material Management System
• Gauge Package for System Monitoring

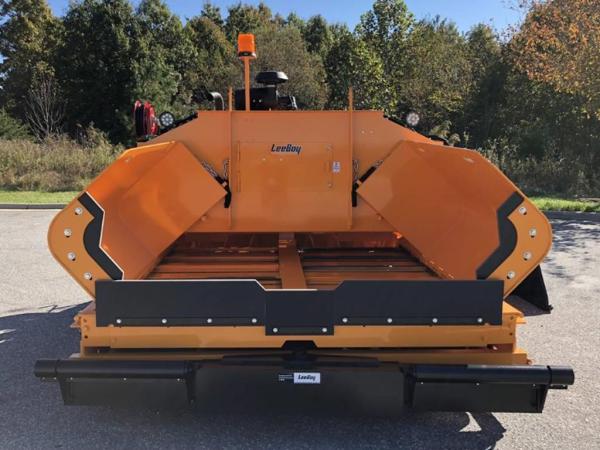

• 7.5 Ton Capacity Material Hopper
• Proven Legend Screed System
• Electric Screed Heat, 10 kw Generator
• LED Operating Light Package

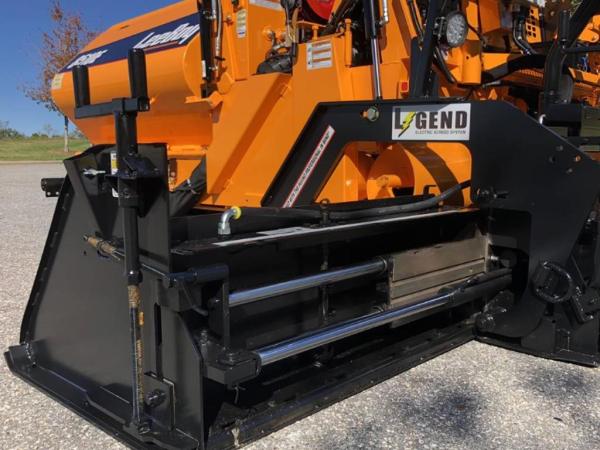

SCREED
• Legend Electric screed
• Consisting of a main screed and two hydraulically operated screed extensions
• Equipped with two electric vibrators
SCREED HEAT
• Legend electric screed heat, 10kw generator
• Electric timer and automatic RPM control system
• 2 Blade heating elements in main, 1 blade element in each extension
SCREED CROWN/VALLEY
• Equipped with a crown/invert adjustment
• Includes a levelling indicator for the operator

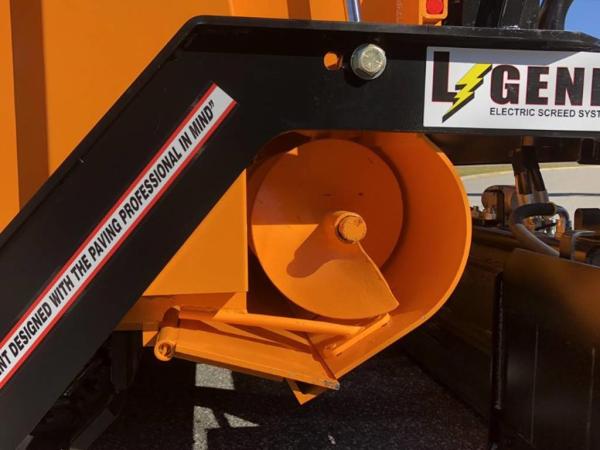

MATERIAL HANDLING
• Two independentaly controled, hydraulically operated under auger material cutoff
• Two 12” diameter independent hydraulically operated cast augers

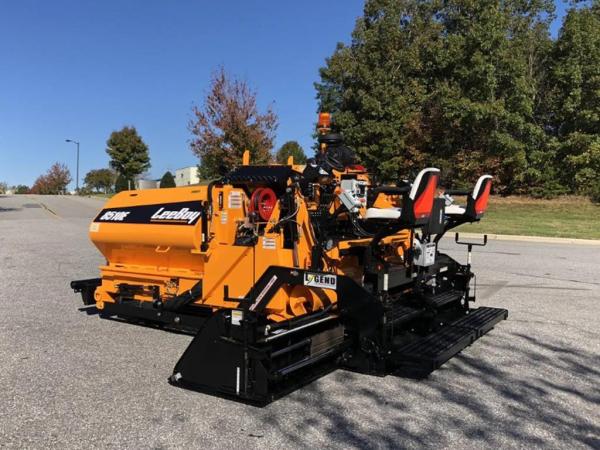

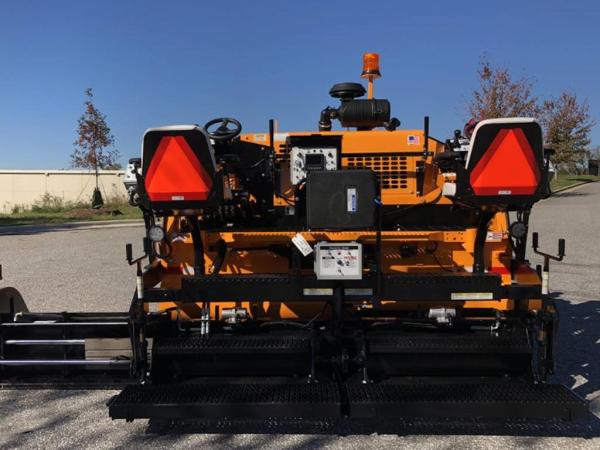

OPERATOR’S PLATFORM
• High Deck: Seats mounted on tractor
• Low Deck: Seats mounted on screed
• Walkboard extensions slide outs, left and right

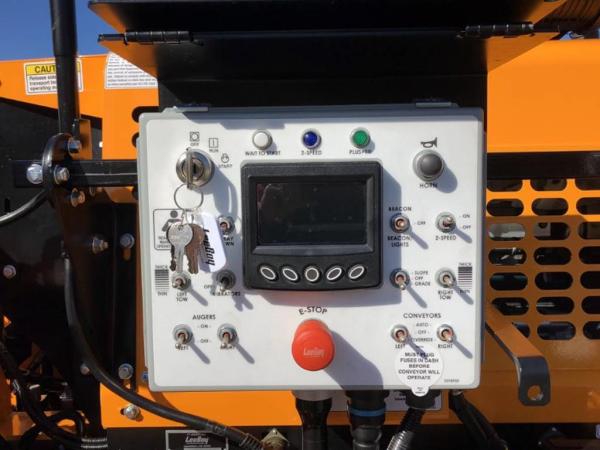

OPERATOR’S CONTROLS
• All control levers are on left side
• Right side levers include screed raise/float, left and right cutoffs, hopper wings, and right screed extension
STEERING
• Dual electronic steering
• Electronically controlled pumps operated by the forward/reverse joysticks
WASHDOWN SYSTEM
Electric pump with two hose reels
PUSH ROLLERS
Two rollers with sealed bearings mounted to allow pivoting on frame
TRACK DRIVE SYSTEM
• Hydrostatically powered, self-cleaning crawler type
• Track size: 14” wide x 77” long poly
• Paving speed: 0 to 150’ per minute (1.5 mph)
• Travel speed: 0 to 300’ per minute (3.2 mph)
ADDITIONAL STANDARD EQUIPMENT
• Back-up alarm
• LED beacon light
• LED work light package
• Glow plugs
• Vandalism protection covers
• Horn
OPTIONAL EQUIPMENT
• Legend HD Screed, 8’ to 15’
• Screed extension vibration
• Automatic screed temperature control
• Heated endgates
• Slope meter
• Horizontal flight screws
• 3:1 flight screw adjusters
• Single point lube system, screed
• Rubber track continuous, in lieu of poly
• Steel track, in lieu of poly
• High deck configuration
• Steering wheel drive controls, in lieu of joysticks
• Truck hitch
• Wiring only, grade controls (TopCon)
• Sonic grade control, one side (TopCon)
• Dual grade control (TopCon)
• Dual grade and slope (TopCon)
• 12”x 4.5” berm extension, left & righ
Specifications are subject to change without prior notice.
Similar models may be shown in addition to the featured model. Equipment may be shown with options.
Specifications
- Capacities - DEF Tank:
- Capacities - Fuel: 19 gallons
- Capacities - Hydraulic Reservoir: 67 gallons
- Capacities - Washdown Tank: 7 gallons
- Dimensions - Height: 8’
- Dimensions - Length: 13'5"
- Dimensions - Total Weight: 17,155 lbs. w/ screed
- Dimensions - Width: 8’ 6” transport | 10’ hopper wings down
