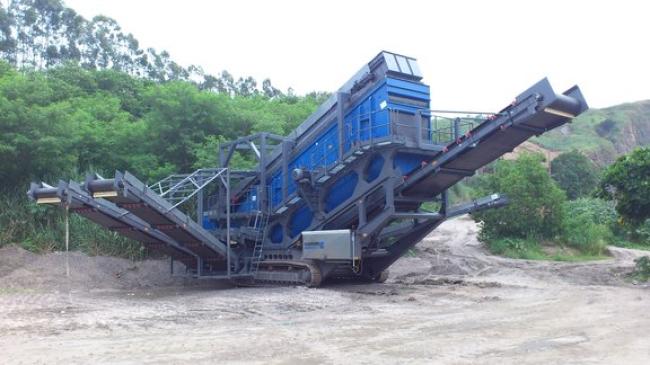

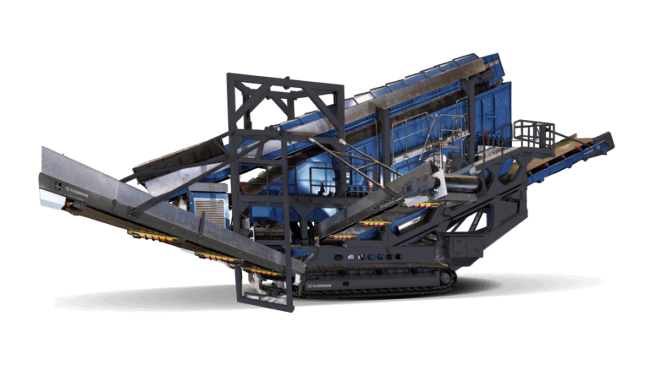

Kleemann MS 23
Mobile Classifying Screens
How can we help?
443-460-1070
Specifications
BELT CONVEYOR, MEDIUM GRAIN DISCHARGE - Length: |
6 in |
BELT CONVEYOR, MEDIUM GRAIN DISCHARGE - Length: |
12 ft |
BELT CONVEYOR, MEDIUM GRAIN DISCHARGE - Width: |
31 in |
BELT CONVEYOR, OVERSIZE GRAIN DISCHARGE - Length: |
12 ft 6 in |
BELT CONVEYOR, OVERSIZE GRAIN DISCHARGE - Width: |
39 ft 4 in |
DISCHARGE CONVEYOR OVERFLOW CENTER DECK (MEDIUM GRAIN) - Discharge height approx.: |
14 ft |
DISCHARGE CONVEYOR OVERFLOW CENTER DECK (MEDIUM GRAIN) - Discharge height approx.: |
5 in |
DISCHARGE CONVEYOR OVERFLOW CENTER DECK (MEDIUM GRAIN) - Length: |
32 ft |
DISCHARGE CONVEYOR OVERFLOW CENTER DECK (MEDIUM GRAIN) - Length: |
10 in |
DISCHARGE CONVEYOR, OVERFLOW, LOWER DECK (MEDIUM GRAIN) - Discharge height approx.: |
14 ft x 5 in |
DISCHARGE CONVEYOR, OVERFLOW, LOWER DECK (MEDIUM GRAIN) - Width x length: |
31 in x 32 ft 10 in |
DISCHARGE CONVEYOR, OVERFLOW, UPPER DECK (OVERSIZE GRAIN) - Discharge height approx.: |
14 ft 5 in |
DISCHARGE CONVEYOR, OVERFLOW, UPPER DECK (OVERSIZE GRAIN) - Width x length: |
39 in x 32 ft 10 in |
FEEDING CONVEYOR - Width x length: |
71 in x 45 ft 11 in |
FEEDING UNIT - Feed height: |
11 ft 2 in |
FEEDING UNIT - Max. feed size: |
6.3 in x 4 in x 2 in |
FINAL SCREENING UNIT - Type: |
Triple-deck classifying screen |
FINAL SCREENING UNIT - Upper deck (W x L): |
91 in x 26 ft x 3 in |
FINE GRAIN DISCHARGE CONVEYOR - Discharge height max. approx.: |
19 ft x 7 in |
FINE GRAIN DISCHARGE CONVEYOR - Length: |
45 ft 11 in |
HOPPER DISCHARGE CONVEYOR - Type (optional): |
Variable speed |
POWER SUPPLY UNIT - Drive concept: |
Diesel-electric |
POWER SUPPLY UNIT - Generator: |
250 kVA |
POWER SUPPLY UNIT - Power supply unit output: |
303 hp |
TRANSPORT - Transport weight of basic plant: |
205,050 lbs |
Links
Innovative diesel-electric drive concept - impressive performance with the best possible consumption values
The crushing plants are equipped with efficient, powerful diesel-electric drives. They ensure environmentally friendly operation combined with low fuel consumption.
Efficient and powerful diesel-electric drive (A) for low fuel consumption (crusher and all conveyor belts are driven electrically)
External power supply (B) for even more economic application in quarries
Solutions for effective dust containment
A relatively high build-up of dust is caused during recycling and also natural stone recycling on account of the process. The main cause of dust emissions here are the material discharge and material transfer positions as well as the crusher unit itself.
Water jets at strategically important points, such as the crusher inlet, crusher discharge conveyor, side discharge conveyors and also the secondary screening unit, are the solution. The majority of the dust is bound together in the process, preventing it from spreading.
Result: Reduction in dust volume by up to 50% (depending on the material)
Screen surfaces
During the daily routine, screen surfaces are really put to the test. To guarantee long-term, reliable screening to the desired final grain size, the screen surfaces from KLEEMANN are made of particularly wear-resistant spring wire steel or round wire.
Thanks to the double-anchoring at the crossings, they have a high mesh stability for uniform screening. The screening result itself is determined by numerous factors. The most important influence factors include the grain shape, the humidity content and the feed volume.
External power supply
Electricity is often cheaper than diesel. Added to this are ecological, legal or social provisions that often restrict the use of diesel.
The screening plants are equipped with a Dual Power System with two electric motors each with 37 kW (50 PS) for high work output combined with low fuel consumption. Connection is made via an electrical device. This permits a quick switch between two power sources (diesel engine or external power supply). Users thus remain flexible and the pollutant emission is reduced.
